52-1 series
start-motors
002
| Quantity: | |
|---|---|

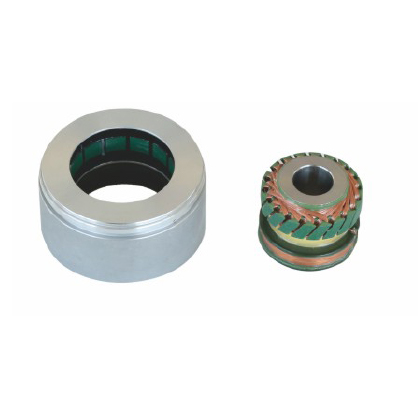

The 52-1 Series Hollow Shaft Brushless Resolver features a unique design that combines a stator and a rotor with precision-engineered windings. The stator is made from high-quality magnetic materials and is wound with multiple coils to generate a stable magnetic field. The rotor, on the other hand, is equipped with a set of permanent magnets that interact with the stator's magnetic field as it rotates.
As the rotor rotates, the interaction between the permanent magnets and the stator's coils produces electrical signals that are proportional to the angular position of the rotor. These signals are then processed by an internal signal processing unit, which converts them into a usable format, such as analog or digital signals.
The Resolver is designed to be highly resistant to electromagnetic interference (EMI) and other external disturbances. Its robust construction and shielding ensure that the sensor can operate accurately even in harsh electromagnetic environments. The resolver is also capable of operating over a wide temperature range, making it suitable for various industrial and outdoor applications.
1. High Accuracy: The Hollow Shaft Brushless Resolver is capable of providing extremely accurate angular position feedback, with a resolution that can reach a very high level. This makes it ideal for applications that require precise control and positioning, such as in robotics, CNC machines, and aerospace systems.
2. Brushless Design: By eliminating the brushes, the resolver eliminates the problems associated with brush wear, sparking, and maintenance. This results in a longer lifespan, higher reliability, and lower maintenance costs.
3. EMI Resistance: The resolver's design and shielding make it highly resistant to electromagnetic interference. It can operate accurately in environments with strong electromagnetic fields, ensuring reliable performance in industrial and electronic applications.
4. Wide Operating Temperature Range: The Hollow Shaft Brushless Resolver can operate effectively in temperatures ranging from extremely low to high. This makes it suitable for use in various environments, including cold storage facilities, outdoor installations, and high-temperature industrial processes.
5. Versatile Signal Output: The resolver can output signals in different formats, such as analog, digital, or serial communication protocols. This allows for easy integration with different control systems and devices, providing flexibility in application design.
1. Robotics: In robotic systems, the Hollow Shaft Brushless Resolver is used to provide accurate position feedback for the joints and other moving parts. This enables robots to perform tasks with high precision and repeatability, such as pick-and-place operations, assembly work, and inspection tasks.
2. CNC Machines: For CNC (Computer Numerical Control) machines, the resolver plays a crucial role in ensuring accurate positioning of the cutting tools. Its high accuracy helps to improve the quality of the machined parts and increase the overall efficiency of the manufacturing process.
3. Aerospace and Defense: In aerospace and defense applications, where reliability and accuracy are of critical importance, the Hollow Shaft Brushless Resolver is used in systems such as flight control surfaces, missile guidance systems, and radar antenna positioning. Its ability to withstand harsh environmental conditions and provide accurate position feedback makes it a valuable component in these applications.
4. Industrial Automation: In industrial automation systems, the resolver is used to monitor the position of conveyor belts, robotic arms, and other moving components. This helps to ensure smooth operation of the production line and prevent errors or accidents.
5. Renewable Energy Systems: In wind turbines and solar trackers, the Hollow Shaft Brushless Resolver is used to monitor the position of the blades or panels. This information is used to optimize the performance of the system and ensure efficient energy generation.
