Key Advantages of BLDC Motor
High efficiency and power density for extended duty and reduced heat rise.
Low noise and low EMI thanks to electronic commutation and optimized gear geometry.
Long life with minimal maintenance; primary wear items are bearings and gear pairs.
Accurate speed/torque/position control with Hall sensors or encoders and matched ESCs.
Compact form factors across multiple frame sizes for tight installation spaces.
BLDC Gear Motor Construction
A BLDC gear motor is an integrated system composed of:
Motor: stator (laminated steel, windings, bearings) generating a rotating magnetic field; rotor (NdFeB magnets on a shaft) following the field.
Gearbox: planetary or spur stages that multiply torque and reduce speed with controlled backlash.
Feedback and options: Hall sensors or encoder, optional holding brake, tailored cabling.
Drive (ESC): controls commutation and closed-loop behavior; overall performance depends on the joint design of the motor, gearbox, feedback device, control algorithm, and manufacturing precision.
Typical Applications of BLDC Motor
Office Automation: 3D printers, scanners, printers, shredders, projectors.
Medical & Life Science: IVD equipment, blood analyzers, dental tools, microscopes, surgical handpieces, physiotherapy devices, stair lifts.
Textile: embroidery machines, circular and flat knitting, screen printing, spinning machinery.
Industrial Control: SMT and pick-and-place, engraving/marking, CNC peripherals, industrial analyzers, banking equipment (ATM), solar tracking systems.
Logistics & Warehousing: gates and barriers, AGV/AMR platforms, conveyors and diverters.
Automotive & New Energy: door systems, lighting modules, LiDAR actuation, display positioning.
Robotics: robot arms, collaborative robots, lawn-mowing robots, medical robotic hands.
Agriculture: pruning shears, precision seeders, fertilizer distribution, harvesting machines, robotic milking, seeding ploughs, sprinkler trucks.
Product Families

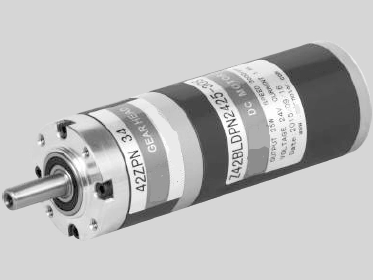

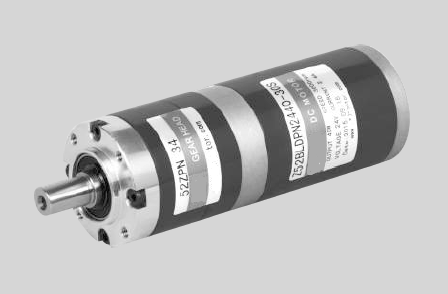

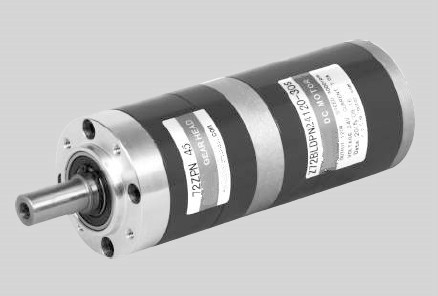

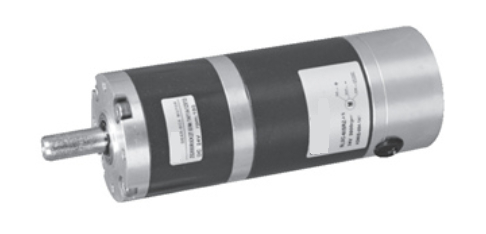

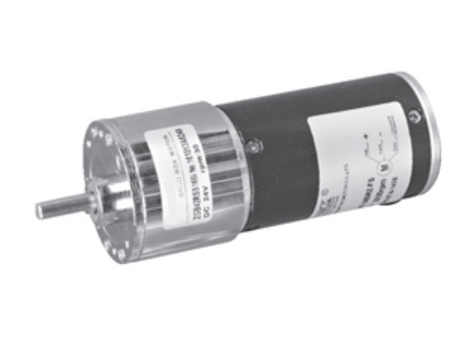

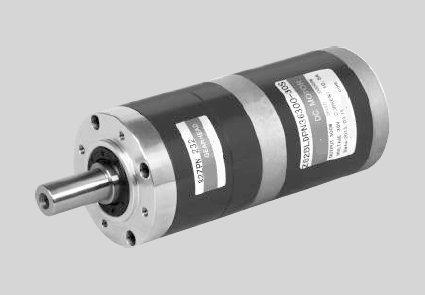

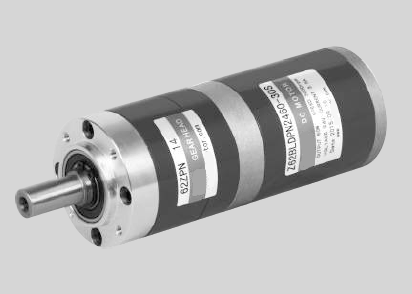

BLDC Planetary Gear Motors — 32/37/42 Series
Compact stages with high torque density and low backlash options. Well-suited to collaborative robots, office automation, laboratory instruments, and light industrial mechanisms. Typical voltages include 12 V, 24 V, and 48 V; encoder and brake available on request.

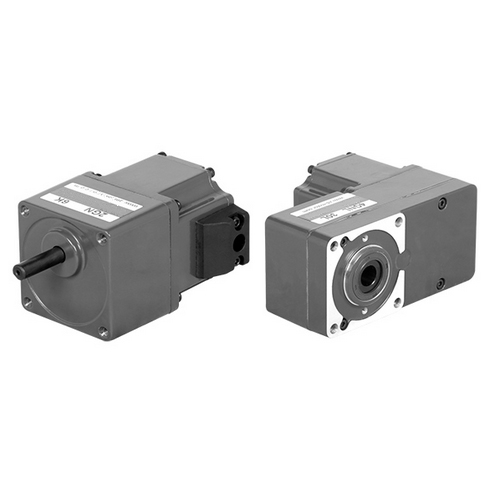

BLDC Square Gear Motors — 60/80 Series
Robust square-gearbox designs for industrial automation and textile equipment. Provide stable output torque, ease of mounting, and flexible shaft/ flange customization for conveyors, feeders, and actuators.

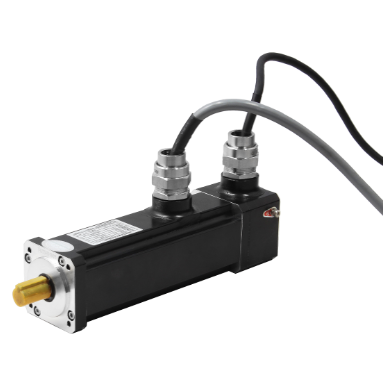

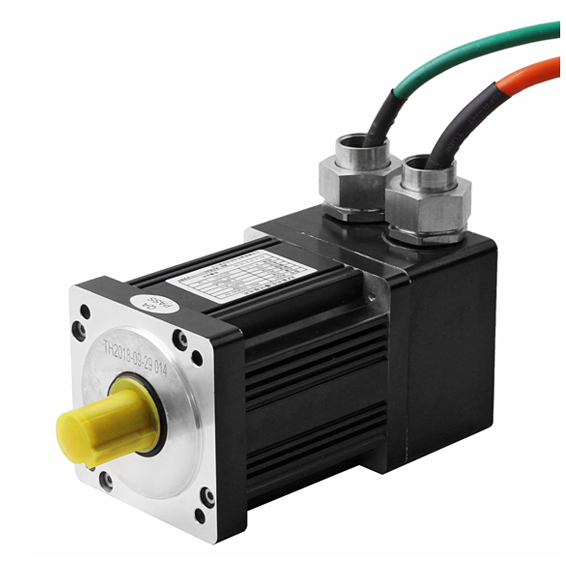

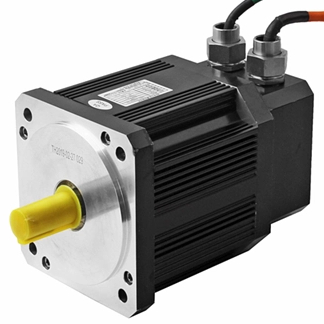

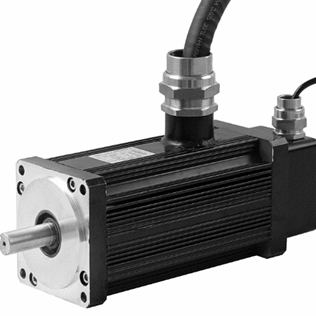

BLDC Explosion-proof Motors — 60/90/110/130/150/180 Series
Purpose-built for hazardous environments such as petrochemical, shipbuilding, printing, and textile lines. Available in multiple frame sizes and voltage options (e.g., 48 V in the 130 Series). Certification scope and markings depend on the exact model and region; consult our sales team for details.
