Environmental ingress remains a leading cause of premature failure in automated equipment. Dust, water, and caustic chemicals constantly assault precision machinery on the factory floor. Selecting the right Ingress Protection (IP) rating for a dc brushless gear motor requires balancing environmental resilience against thermal performance. Engineers often struggle to find the optimal sweet spot between adequate sealing and mechanical efficiency.
Over-engineering drives up project budgets unnecessarily. Under-engineering guarantees disastrous equipment downtime. Our goal is to solve this common specification dilemma. This guide provides a definitive, engineering-focused comparison of IP54, IP65, and IP67 ratings. You will learn how to specify motor sealing accurately based on real-world operational threats. We will explore exactly how to prevent costly failures without sacrificing system efficiency.
IP54 provides sufficient protection for most standard, indoor industrial automation environments where occasional splashing occurs.
IP65 is the baseline for washdown environments and moderate outdoor applications, offering complete dust protection and resistance to low-pressure water jets.
IP67 is strictly for extreme conditions involving temporary submersion, but carries trade-offs in thermal management and parasitic load from heavy shaft seals.
Higher IP ratings are not universally better; sealing a dc brushless gear motor tightly can lead to internal condensation and heat retention if not properly mitigated.
Specifying an under-rated motor creates immediate operational hazards. Inadequate sealing leads directly to short-circuiting and rapid bearing seizure. These failures cause unplanned downtime. Unplanned downtime destroys production schedules and limits revenue generation. Conversely, over-specifying inflates unit costs dramatically. High IP ratings also complicate mechanical integration. Tighter seals often require larger motor frames to manage trapped heat.
The International Electrotechnical Commission outlines the IP framework in standard IEC 60529. Engineers break down the two-digit system strictly as it applies to electromechanical devices. The first digit represents protection against solids and dust. The second digit measures protection against liquids. Understanding these digits prevents costly misapplications in automation design.
IP Digit | Meaning (Solids / First Digit) | Meaning (Liquids / Second Digit) |
|---|---|---|
4 | Protected against solid objects over 1mm. | Protected against splashing water from any direction. |
5 | Dust-protected (limited ingress permitted). | Protected against low-pressure water jets. |
6 | Completely dust-tight. | Protected against heavy seas or powerful jets. |
7 | N/A | Protected against temporary immersion (up to 1m). |

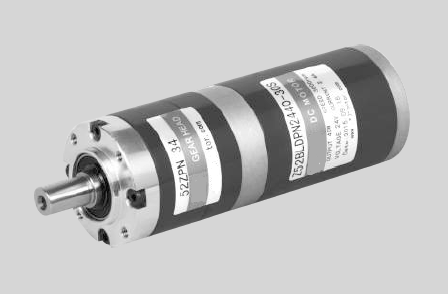

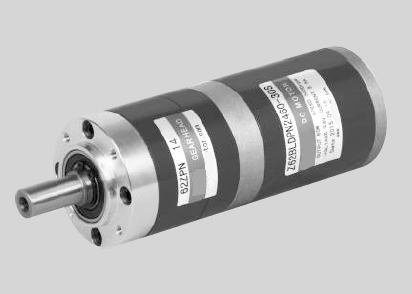

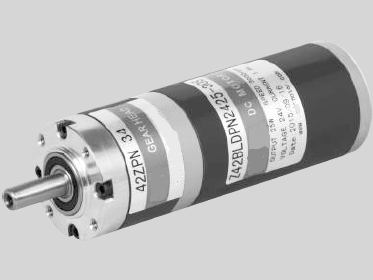

A dc brushless gear motor inherently lacks physical commutators and carbon brushes. This architecture completely eliminates internal sparking. It also reduces traditional ventilation requirements significantly. Because we do not need to vent brush dust, we can seal the housing effectively. This makes a brushless design fundamentally easier to secure against harsh environments than any brushed alternative.
Technical Definition: An IP54 rating means the unit is dust-protected. It permits limited dust ingress but prevents harmful deposits. It also protects internal components against splashing water from any direction.
Ideal Applications: We frequently specify IP54 units for factory automation. They excel in standard packaging conveyors and indoor robotics. They operate reliably inside climate-controlled facilities. These locations rarely see direct washdowns or heavy liquid exposure.
Cost/Performance Profile: This rating remains highly cost-effective. IP54 relies on standard rotary lip seals. It utilizes closed housings without demanding heavy O-rings. You do not need specialized cable glands. This keeps the manufacturing and integration costs remarkably low.
Technical Definition: IP65 ratings guarantee a completely dust-tight enclosure. The housing protects the internals against low-pressure water jets. Testing utilizes a 6.3 mm nozzle spraying water from any angle.
Ideal Applications: IP65 serves as the industry standard for food and beverage packaging. We also use them in agricultural equipment. Outdoor Automated Guided Vehicles (AGVs) rely heavily on IP65. These applications require frequent washdowns or face moderate weather exposure.
Cost/Performance Profile: You will notice a moderate cost increase here. Achieving true IP65 requires specialized shaft sealing. Manufacturers must install sealed bearings. The design also demands potted or highly compressed cable entries to prevent capillary fluid action.
Technical Definition: IP67 ratings represent elite protection. The unit is completely dust-tight. It remains protected against the effects of temporary water immersion. Units can survive underwater up to 1 meter for exactly 30 minutes.
Ideal Applications: We specify IP67 for extreme environments. Marine equipment demands this level of sealing. Extreme outdoor robotics and flood-prone zones require IP67. Heavy chemical washdowns in pharmaceutical plants also necessitate these robust motors.
Cost/Performance Profile: IP67 carries the highest upfront cost. Engineering these units often requires redundant internal sealing. Manufacturers apply specialized anti-corrosion coatings to the stators. They must use precision-machined mating surfaces to compress O-rings flawlessly.
Comparison Summary Chart
Feature | IP54 | IP65 | IP67 |
|---|---|---|---|
Dust Protection | Partial (No harmful deposits) | Complete (Dust-tight) | Complete (Dust-tight) |
Liquid Protection | Splashes from any direction | Low-pressure jets (6.3mm) | Temporary immersion (1m depth) |
Relative Cost | Low | Moderate | High |
Thermal Impact | Minimal | Moderate heat retention | High heat retention |
A sealed motor restricts natural heat dissipation. A tightly closed IP65 or IP67 housing traps thermal energy internally. You must evaluate whether your application requires motor derating. Running a fully sealed motor at maximum continuous torque often causes overheating. Engineers frequently select a larger frame size. A larger frame provides more surface area to compensate for the lack of internal airflow.
High-IP shaft seals introduce unwanted friction. Double-lip seals grip the rotating shaft tightly. Spring-energized seals create even more physical drag. You must assess the impact on the motor’s starting torque. This friction reduces the overall mechanical efficiency. It steals usable power before it ever reaches your external load.
Engineers must recognize the massive gap between standardized IP testing and factory realities. IEC standard tests occur in static, controlled temperature laboratories. Real-world industrial conditions act much differently. Factory environments involve intense thermal cycling. They feature high-pressure chemical sprays. Continuous shaft rotation wears down seals faster than static lab conditions suggest.
Best Practices for Evaluation:
Always calculate the thermal duty cycle before choosing IP67.
Account for a 5% to 10% torque loss when utilizing double-lip shaft seals.
Never assume static lab ratings translate perfectly to dynamic, high-vibration environments.
Motors heat up during operation and cool down when deactivated. Rapid cooling creates a vacuum inside the motor housing. Internal pressure drops sharply. This vacuum can physically suck moisture past IP65 or IP67 seals. We call this the internal condensation threat. Evaluate the need for Gore-Tex breather vents. These vents equalize pressure while blocking liquid water. Alternatively, consider installing internal anti-condensation heaters.
Identify the cable junction box as the most common point of IP failure. Connectors also represent significant vulnerabilities. Water frequently travels down cable jackets via capillary action. Ensure your mating cables match the motor's IP rating perfectly. A weak connector instantly degrades an IP67 motor down to an IP40 system.
An IP rating only tests for pure water ingress. Industrial operating environments rarely feature pure water. Facilities involve caustic cutting fluids. They use aggressive cleaning acids and synthetic oils. You must evaluate seal materials independently of the numerical IP rating. Choose Viton seals over standard Nitrile if your environment involves harsh chemicals.
Common Mistakes to Avoid:
Assuming IP67 covers chemical washdowns automatically.
Using unsealed mating connectors on high-IP motors.
Ignoring internal condensation in environments with extreme temperature swings.
Always audit the physical installation environment first. Walk the factory floor. If the operating zone lacks direct water spray, default to IP54. This simple choice maximizes your thermal efficiency. It also minimizes your upfront component costs. Do not over-specify unless the environment truly demands it.
Critical IP65 and IP67 applications require verifiable proof. Always request the manufacturer’s ingress protection test reports. Scrutinize the documentation carefully. Pay special attention to rotating shaft seal integrity. Ensure they tested the motor under dynamic rotational conditions, not just statically.
Never place a bulk order blindly. Procure a single pilot unit of your chosen dc brushless gear motor first. Run it through a standard operational cycle in the actual environment. Monitor external operating temperatures constantly. Open the housing and inspect for internal moisture before authorizing full production.
Selecting the optimal IP rating demands careful analysis. You must align exact environmental threats with actual mechanical and thermal realities. Higher numbers do not automatically equal better performance in automation.
Match IP54 to indoor, dry automation tasks to save money and boost cooling.
Reserve IP65 for areas facing frequent washdowns or moderate outdoor exposure.
Deploy IP67 only when temporary submersion is a genuine, unavoidable threat.
Address parasitic friction and thermal retention proactively when upgrading seals.
Success relies on viewing the IP rating as part of a broader environmental protection strategy. You must include careful seal material selection and robust thermal planning. Consult with the motor manufacturer's engineering team today. Map your specific application requirements against their available IP-rated product lines to ensure long-term reliability.
A: No. IP65 protects against low-pressure jets. Submersion requires IP67 or IP68 ratings.
A: Indirectly, yes. Heavier shaft seals create friction (reducing usable torque), and restricted cooling may require derating the motor's continuous torque capacity.
A: Common causes include thermal cycling causing internal condensation, chemical degradation of seals not accounted for by water-only IP testing, or improper cable installation.
A: Generally, no. True IP65 compliance requires factory-level integration of specific O-rings, potting compounds, and machined tolerances that cannot be easily retrofitted.
