ST370-Over Motor
start-motors
057
| Quantity: | |
|---|---|
1. Advantages and applications of our Oven Motors
1. The motor's operating voltage and frequency can be customized based on country and region specifications; for example, single-phase, three-phase, 50Hz, or 60Hz.
2. Due to the high-temperature environment, we use H-grade high-temperature grease bearings.
3. Our motors are ultra-quiet, low-noise, and stable.
4. Our motors have a high air volume and can be customized with a custom impeller. We also offer our own custom impellers.
5. Our oven motors are widely used in applications such as hot air circulation ovens, combi steam ovens, pizza ovens, high-temperature fans, ventilation equipment, food processing machinery, kitchen exhaust fans, and other high-temperature oven and baking applications.
2. Performance parameters
| Voltage(V) | 220V/380V, |
| Power(W) | 200W, 250W , 370W, 550W |
| Speed(rpm) | 1450rpm, 2800/3200rpm |
| Frequency(HZ) | 50/60HZ |
| Insulation Level | Class H |
| Motor shaft material | 40Cr |
| Wind wheel size | φ350*80，φ340*80， φ330*80，φ280*80，φ225*60 |
| Wind wheel material | stainless steel |
| Shaft size and lead size can be customized | |

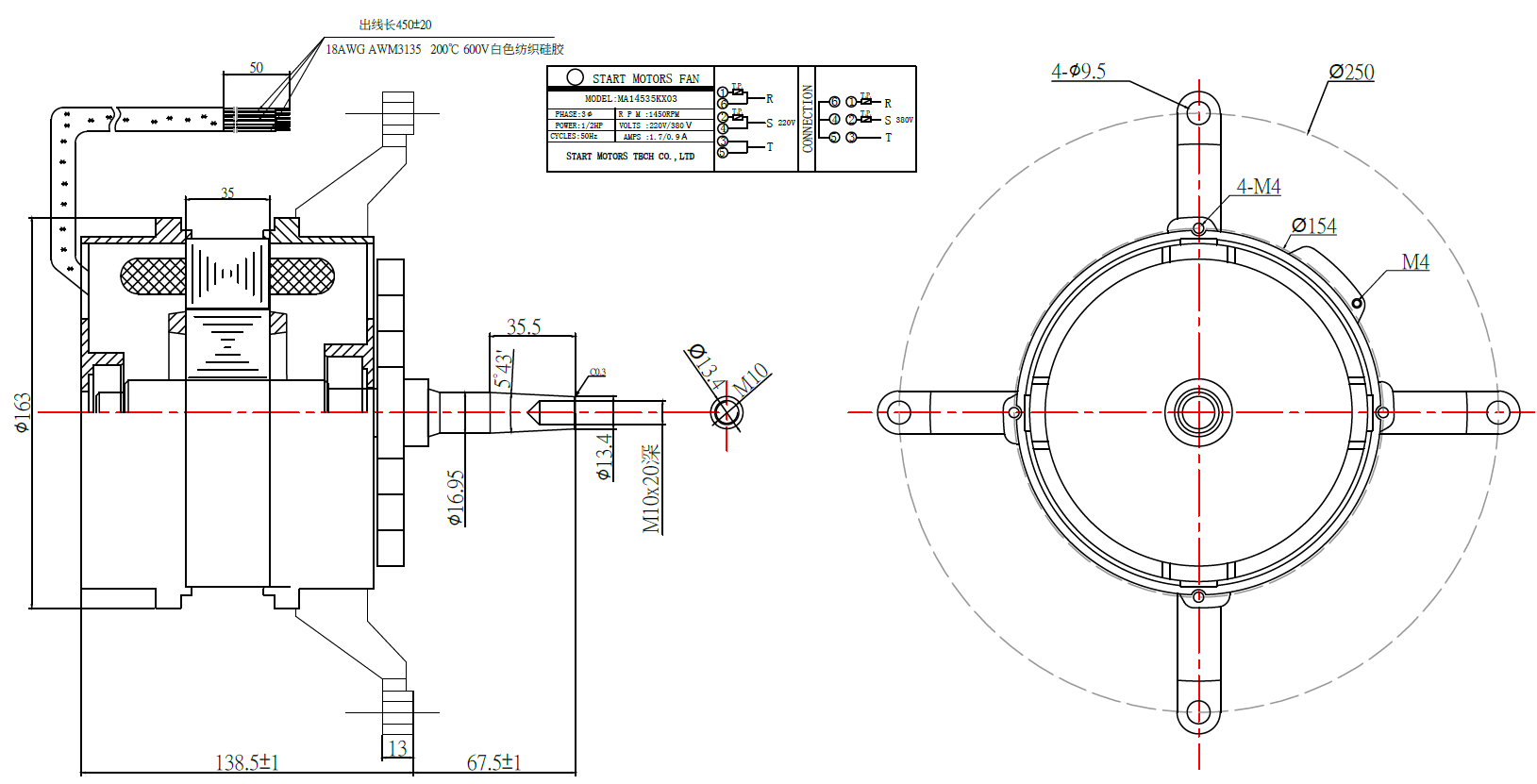

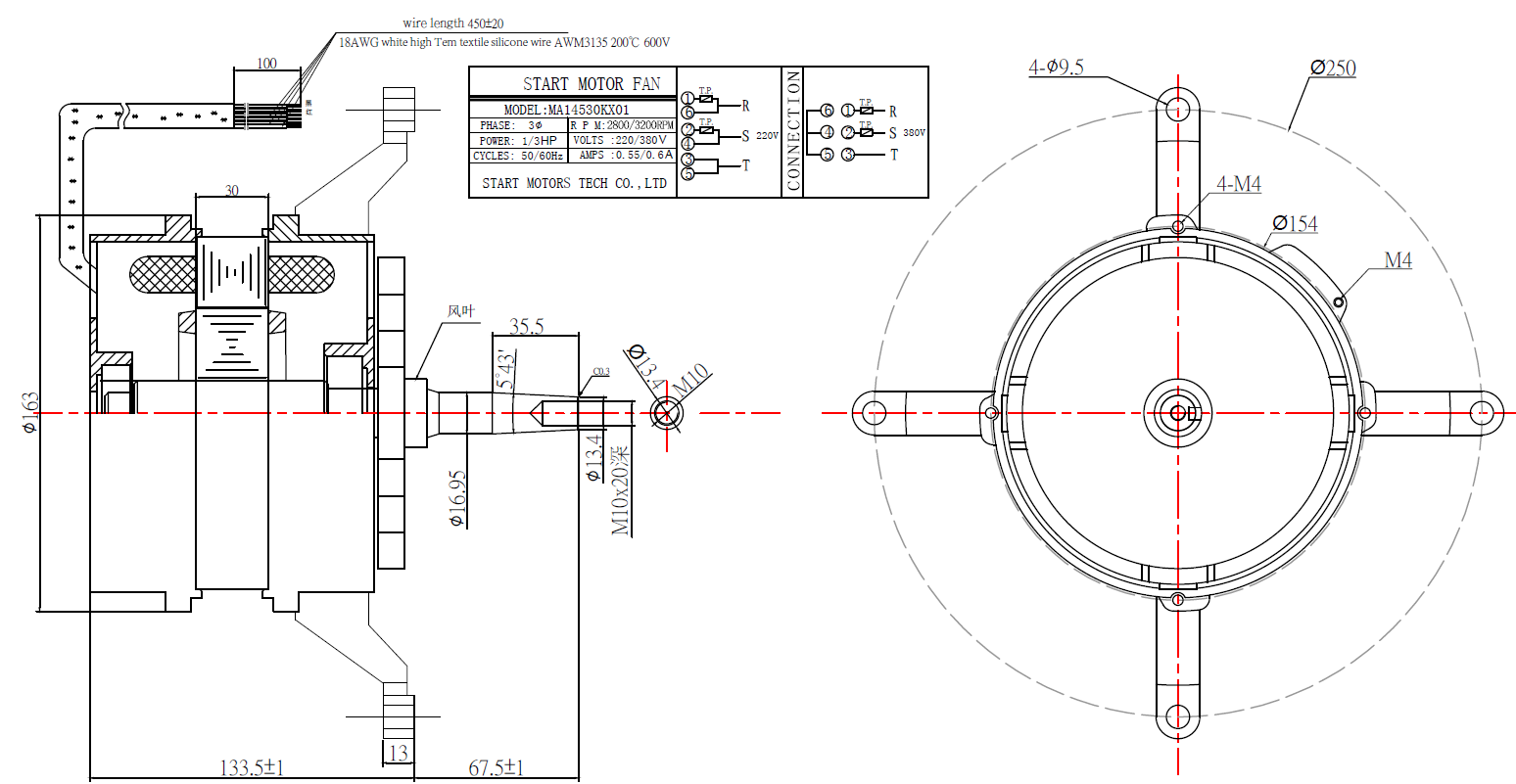

3. Dimensional drawings
1. Advantages and applications of our Oven Motors
1. The motor's operating voltage and frequency can be customized based on country and region specifications; for example, single-phase, three-phase, 50Hz, or 60Hz.
2. Due to the high-temperature environment, we use H-grade high-temperature grease bearings.
3. Our motors are ultra-quiet, low-noise, and stable.
4. Our motors have a high air volume and can be customized with a custom impeller. We also offer our own custom impellers.
5. Our oven motors are widely used in applications such as hot air circulation ovens, combi steam ovens, pizza ovens, high-temperature fans, ventilation equipment, food processing machinery, kitchen exhaust fans, and other high-temperature oven and baking applications.
2. Performance parameters
| Voltage(V) | 220V/380V, |
| Power(W) | 200W, 250W , 370W, 550W |
| Speed(rpm) | 1450rpm, 2800/3200rpm |
| Frequency(HZ) | 50/60HZ |
| Insulation Level | Class H |
| Motor shaft material | 40Cr |
| Wind wheel size | φ350*80，φ340*80， φ330*80，φ280*80，φ225*60 |
| Wind wheel material | stainless steel |
| Shaft size and lead size can be customized | |
3. Dimensional drawings
