Voltage Options: These motors are available in different voltage versions, such as 24 V and 30 V, to meet different power supply requirements.
Speed and Torque: They offer a range of no - load speeds and rated torques. For example, the 52ZY - T001 model has a no - load speed of 6000 rpm and a rated torque of 0.2 N·m at 24 V, while the 52ZY - T88437 model has a no - load speed of 4460 rpm and a rated torque of 0.1 N·m at 30 V.

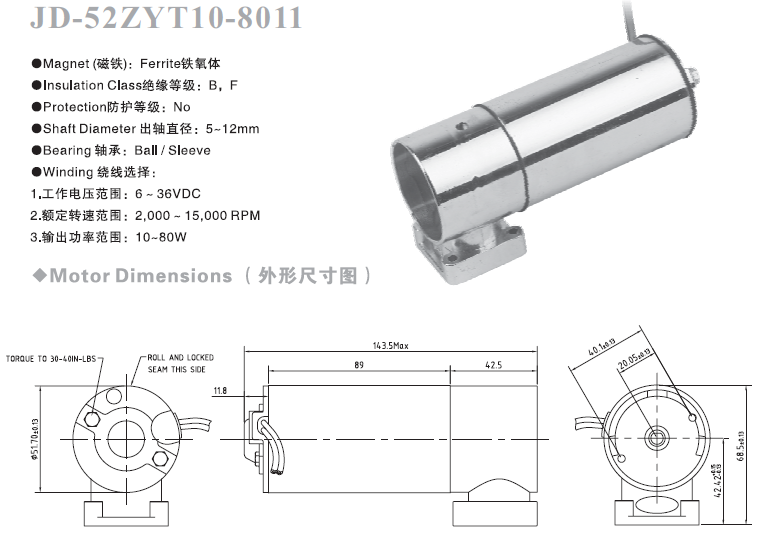

Dimensions: The length of the motors varies depending on the specific model, with dimensions like 132 mm, 113 mm, 96 mm, and 145 mm being common.
Motor Type: They are of the carbon - brush commutator type, which allows for efficient energy conversion and reliable operation.
Housing Material: Usually made of steel, providing good mechanical strength and durability.
Reversible Rotation: The rotation direction of these motors can be either clockwise or counterclockwise, offering flexibility in different applications.
High Efficiency: The DC brush motors in the 52 series are designed to operate with high efficiency, converting electrical energy into mechanical energy effectively.
Good Dynamic Response: They can quickly respond to changes in the input voltage, enabling fast acceleration and deceleration.
Wide Speed Range: With different voltage and load conditions, they can cover a relatively wide speed range, meeting the needs of various applications that require different motion speeds.
These motors are widely used in many fields, such as industrial automation equipment, where they can be used to drive conveyor belts, actuators, and other components. They are also found in some small - scale machinery and equipment, like office equipment and medical devices, providing the necessary power for their operation. In addition, they can be applied to some consumer electronics products that require precise motion control.
Voltage Options: These motors are available in different voltage versions, such as 24 V and 30 V, to meet different power supply requirements.
Speed and Torque: They offer a range of no - load speeds and rated torques. For example, the 52ZY - T001 model has a no - load speed of 6000 rpm and a rated torque of 0.2 N·m at 24 V, while the 52ZY - T88437 model has a no - load speed of 4460 rpm and a rated torque of 0.1 N·m at 30 V.
Dimensions: The length of the motors varies depending on the specific model, with dimensions like 132 mm, 113 mm, 96 mm, and 145 mm being common.
Motor Type: They are of the carbon - brush commutator type, which allows for efficient energy conversion and reliable operation.
Housing Material: Usually made of steel, providing good mechanical strength and durability.
Reversible Rotation: The rotation direction of these motors can be either clockwise or counterclockwise, offering flexibility in different applications.
High Efficiency: The DC brush motors in the 52 series are designed to operate with high efficiency, converting electrical energy into mechanical energy effectively.
Good Dynamic Response: They can quickly respond to changes in the input voltage, enabling fast acceleration and deceleration.
Wide Speed Range: With different voltage and load conditions, they can cover a relatively wide speed range, meeting the needs of various applications that require different motion speeds.
These motors are widely used in many fields, such as industrial automation equipment, where they can be used to drive conveyor belts, actuators, and other components. They are also found in some small - scale machinery and equipment, like office equipment and medical devices, providing the necessary power for their operation. In addition, they can be applied to some consumer electronics products that require precise motion control.
