BLDC-R22 series
start-motors
022
| Quantity: | |
|---|---|

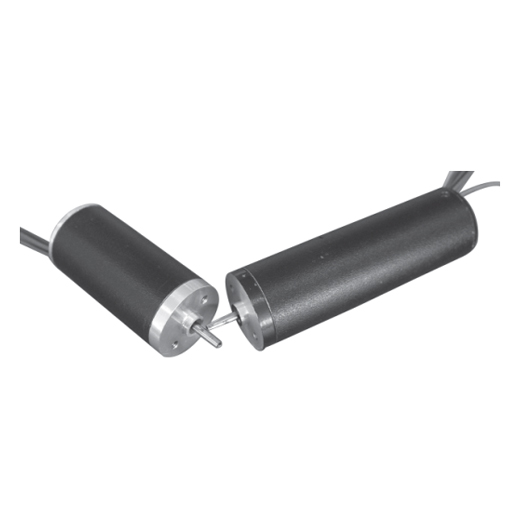

The Brushless Gear Motor 22 Series features a more powerful stator design with increased winding density and improved magnetic materials. This results in a stronger magnetic field and higher torque output, allowing the motor to handle heavier loads and operate at higher speeds. The rotor is also optimized, with a redesigned magnet arrangement that enhances the motor's efficiency and performance.
The motor's housing is made from a durable and lightweight composite material that provides excellent protection against mechanical damage and environmental factors. It is designed with a sleek and modern appearance, and its compact size makes it easy to install in various applications. The Brushless Gear Motor 22 Series also comes with a built-in cooling system, which helps to dissipate heat and ensure the motor can operate continuously at high loads without overheating.
The control system of the Brushless Gear Motor 22 Series is highly advanced, featuring a micro controller-based design that allows for precise control of the motor's speed, torque, and position. The control system also supports various communication protocols, such as PWM, analog input, and serial communication, making it easy to integrate into different control systems.
1. Increased Power and Torque: The Brushless Gear Motor 22 Series offers a significant increase in power and torque compared to the previous model, making it suitable for more demanding applications. It can handle heavier loads and operate at higher speeds with ease, providing excellent performance in industrial, commercial, and consumer applications.
2. Advanced Cooling System: The built-in cooling system ensures efficient heat dissipation, allowing the motor to operate at its maximum capacity for extended periods. This not only improves the motor's performance but also extends its lifespan and reduces the need for maintenance.
3. Precision Control: The micro controller-based control system provides precise and flexible control over the motor's operation. It can be programmed to perform complex motion profiles and adapt to changing load conditions, ensuring optimal performance in various applications.
4. Flexible Communication Options: The motor's control system supports a variety of communication protocols, making it easy to integrate into different control systems. This allows for seamless integration with other devices and enables remote monitoring and control of the motor's operation.
5. Durable and Reliable: The use of high-quality materials and advanced manufacturing techniques makes the DC Brushless Gear Motor 22 Series highly durable and reliable. It can withstand harsh environmental conditions, including extreme temperatures, humidity, and vibration, and has a long service life with minimal maintenance requirements.
1. Industrial Machinery: In industrial machinery, such as packaging machines, printing presses, and textile equipment, the Gear Motor 22 Series can be used to power the motors and drives. Its high power and torque capabilities, along with precise control, make it an excellent choice for these applications, improving productivity and efficiency.
2. Commercial Equipment: For commercial equipment, such as vending machines, ATMs, and security systems, the motor can be used to power the moving parts. Its reliability and durability ensure the smooth operation of these devices, reducing downtime and maintenance costs.
3. Robotics and Automation: In robotics and automation applications, the Gear Motor 22 Series can be used in robotic arms, AGVs (Automated Guided Vehicles), and other automated systems. Its precision control and high power output make it suitable for applications that require accurate and powerful movement control.
4. Renewable Energy Systems: In renewable energy systems, such as solar panels and wind turbines, the motor can be used to drive the tracking systems and other mechanical components. Its efficiency and reliability contribute to the overall performance and effectiveness of these systems.
5. Electric Bicycles and Scooters: For electric bicycles and scooters, the Gear Motor 22 Series can be used as the main drive motor. Its high power and torque capabilities, along with efficient operation, provide a smooth and powerful riding experience, while its compact size and lightweight nature make it easy to install and integrate into the vehicle's design.
The Brushless Gear Motor 22 Series features a more powerful stator design with increased winding density and improved magnetic materials. This results in a stronger magnetic field and higher torque output, allowing the motor to handle heavier loads and operate at higher speeds. The rotor is also optimized, with a redesigned magnet arrangement that enhances the motor's efficiency and performance.
The motor's housing is made from a durable and lightweight composite material that provides excellent protection against mechanical damage and environmental factors. It is designed with a sleek and modern appearance, and its compact size makes it easy to install in various applications. The Brushless Gear Motor 22 Series also comes with a built-in cooling system, which helps to dissipate heat and ensure the motor can operate continuously at high loads without overheating.
The control system of the Brushless Gear Motor 22 Series is highly advanced, featuring a micro controller-based design that allows for precise control of the motor's speed, torque, and position. The control system also supports various communication protocols, such as PWM, analog input, and serial communication, making it easy to integrate into different control systems.
1. Increased Power and Torque: The Brushless Gear Motor 22 Series offers a significant increase in power and torque compared to the previous model, making it suitable for more demanding applications. It can handle heavier loads and operate at higher speeds with ease, providing excellent performance in industrial, commercial, and consumer applications.
2. Advanced Cooling System: The built-in cooling system ensures efficient heat dissipation, allowing the motor to operate at its maximum capacity for extended periods. This not only improves the motor's performance but also extends its lifespan and reduces the need for maintenance.
3. Precision Control: The micro controller-based control system provides precise and flexible control over the motor's operation. It can be programmed to perform complex motion profiles and adapt to changing load conditions, ensuring optimal performance in various applications.
4. Flexible Communication Options: The motor's control system supports a variety of communication protocols, making it easy to integrate into different control systems. This allows for seamless integration with other devices and enables remote monitoring and control of the motor's operation.
5. Durable and Reliable: The use of high-quality materials and advanced manufacturing techniques makes the DC Brushless Gear Motor 22 Series highly durable and reliable. It can withstand harsh environmental conditions, including extreme temperatures, humidity, and vibration, and has a long service life with minimal maintenance requirements.
1. Industrial Machinery: In industrial machinery, such as packaging machines, printing presses, and textile equipment, the Gear Motor 22 Series can be used to power the motors and drives. Its high power and torque capabilities, along with precise control, make it an excellent choice for these applications, improving productivity and efficiency.
2. Commercial Equipment: For commercial equipment, such as vending machines, ATMs, and security systems, the motor can be used to power the moving parts. Its reliability and durability ensure the smooth operation of these devices, reducing downtime and maintenance costs.
3. Robotics and Automation: In robotics and automation applications, the Gear Motor 22 Series can be used in robotic arms, AGVs (Automated Guided Vehicles), and other automated systems. Its precision control and high power output make it suitable for applications that require accurate and powerful movement control.
4. Renewable Energy Systems: In renewable energy systems, such as solar panels and wind turbines, the motor can be used to drive the tracking systems and other mechanical components. Its efficiency and reliability contribute to the overall performance and effectiveness of these systems.
5. Electric Bicycles and Scooters: For electric bicycles and scooters, the Gear Motor 22 Series can be used as the main drive motor. Its high power and torque capabilities, along with efficient operation, provide a smooth and powerful riding experience, while its compact size and lightweight nature make it easy to install and integrate into the vehicle's design.
