In modern motion control systems, accurate position feedback is the foundation of reliable performance. Whether you’re working with robotics, CNC machinery, industrial automation, or aerospace systems, having precise data about motor shaft position is crucial. Two of the most widely used devices for this purpose are encoders and resolvers. While both serve the role of providing position information, they are fundamentally different in design, performance characteristics, and best-fit applications.

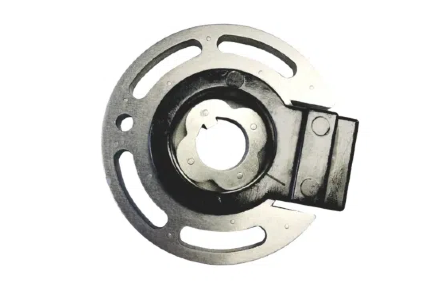

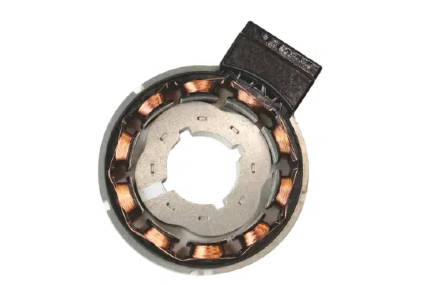

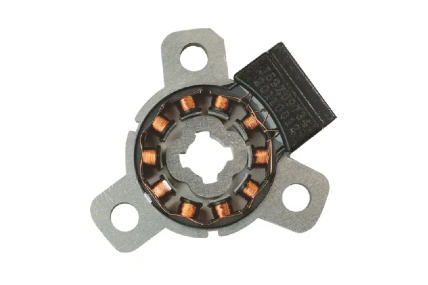

A resolver is an electromagnetic transducer that measures angular position by transforming mechanical rotation into analog electrical signals. It operates on principles similar to a rotary transformer. Inside a resolver, a rotor winding and stator windings interact through mutual induction. As the rotor turns, the output voltages vary sinusoidally in proportion to the shaft angle.
Key features of resolvers include:
Analog Output: The sine and cosine waveforms generated by the resolver are proportional to shaft position.
Extreme Durability: With no fragile optical components or complex electronics, resolvers withstand vibration, shock, dust, high temperatures, and electromagnetic interference.
Long Service Life: Thanks to their rugged design, resolvers are often found in military, aerospace, and heavy industrial equipment where reliability is non-negotiable.
Resolvers are sometimes called the “workhorse” of position sensing due to their robust performance in harsh conditions.
An encoder is an electro-mechanical device that converts rotational or linear position into digital signals. Encoders come in different types, such as optical encoders and magnetic encoders, but all function to deliver high-resolution digital feedback about movement and position.
Key features of encoders include:
High Precision: Encoders are capable of producing high-resolution digital outputs, often up to thousands of counts per revolution.
Direct Digital Interface: Because they deliver binary or pulse signals, encoders integrate easily into modern digital control systems.
Wide Variability: Encoders are available in incremental and absolute models, allowing flexibility for different control strategies.
Encoders dominate applications where ultra-high accuracy and seamless integration with advanced electronics are critical.
Let’s compare the two technologies across critical performance parameters:
Encoders: Offer superior resolution, making them ideal for applications requiring fine precision such as robotics, semiconductor equipment, or CNC tools.
Resolvers: Provide adequate accuracy for many control systems but typically lower resolution compared to high-end encoders.
Encoders: Sensitive to dust, oil, moisture, and vibrations, especially optical types. Protective housings can mitigate some issues, but they are not as naturally rugged.
Resolvers: Built for harsh environments. They can function in extreme temperatures, withstand heavy vibration, and resist electromagnetic interference, making them ideal for aerospace and defense.
Encoders: Produce clean digital pulses or absolute codes, easily processed by modern controllers without additional conversion.
Resolvers: Generate analog sine/cosine signals that require a resolver-to-digital converter (RDC) to be interpreted by digital systems. This adds complexity but allows smooth and noise-tolerant operation.
Encoders: Mechanical or optical components may degrade over time, especially in demanding conditions.
Resolvers: Extremely reliable with a long lifespan due to their simple electromagnetic construction and absence of delicate optical parts.
Encoders: Often more cost-effective in standard industrial applications where environmental factors are controlled.
Resolvers: Generally more expensive due to the added requirement of an RDC, but they save costs in long-term maintenance in harsh environments.
Encoders play a crucial role in industries where high accuracy, repeatability, and precise feedback are essential. Their ability to convert motion into digital signals makes them indispensable in advanced automation systems. Below are some of the most common application areas:
Industrial Automation:
Encoders are widely used in high-speed assembly lines, packaging equipment, CNC machinery, and precision positioning systems. They provide real-time feedback for motor control, ensuring that operations are synchronized and efficient. In production environments where throughput is critical, encoders help reduce downtime, minimize errors, and maximize productivity.
Robotics:
In both articulated robotic arms and autonomous mobile robots, encoders ensure accurate control of movement and positioning. High-resolution encoders allow robots to perform delicate tasks, such as assembly of micro-components or precision welding, where even the smallest error could lead to costly rework. They also enable smooth, coordinated motion between multiple axes.
Medical Devices:
Precision is paramount in the healthcare sector, and encoders deliver the feedback required for imaging machines, radiation therapy equipment, and surgical robots. For example, in MRI or CT scanners, encoders ensure the accurate positioning of imaging tables, while in robotic-assisted surgeries, they help achieve extremely fine motion control for minimally invasive procedures.
Electronics Manufacturing:
Semiconductor fabrication and PCB assembly demand micron-level precision. Encoders help guide wafer stages, pick-and-place machines, and inspection systems to ensure exact alignment and repeatability. Their contribution is vital in achieving the consistency and defect-free quality that electronics manufacturing requires.
In summary, encoders thrive in environments that are relatively clean and controlled, where their high accuracy and resolution capabilities can be fully leveraged. They are preferred when precision outweighs ruggedness, making them ideal for industries that demand accuracy down to the finest detail.
Resolvers shine in:
Aerospace: Flight control actuators, landing gear systems, and radar antennas that must endure extreme conditions.
Military Systems: Tanks, naval equipment, and missile systems where survivability is critical.
Heavy Industry: Steel mills, mining equipment, and oil & gas drilling machines that operate in vibration-heavy, high-temperature environments.
Electric Vehicles and Motors: Resolvers provide robust feedback for traction motors, even in fluctuating temperature and load conditions.
Where reliability under stress is more important than micron-level precision, resolvers are the preferred choice.
In some applications, engineers combine the benefits of both technologies. For instance, systems may use an encoder for fine control and a resolver as a redundant safety feedback device.
Additionally, modern resolver-to-digital converters (RDCs) are becoming more compact and cost-effective, making resolvers easier to integrate into digital systems. Meanwhile, encoders continue to evolve with improved sealing, magnetic sensing technologies, and built-in error correction to enhance durability.
The choice is no longer strictly binary—manufacturers now have hybrid solutions and smarter interfaces that allow flexibility based on performance needs.
When deciding between the two, consider the following factors:
Operating Environment: If your system will encounter heat, vibration, dust, or EMI, resolvers are the safer bet.
Required Precision: For ultra-fine resolution and digital accuracy, encoders are the better option.
System Integration: If you need seamless compatibility with digital controllers, encoders may reduce complexity.
Lifecycle Costs: While resolvers may cost more initially, their durability often lowers maintenance and replacement expenses in harsh environments.
Industry Standards: Some industries (aerospace, defense) prefer resolvers due to proven reliability, while automation often leans toward encoders for performance and cost efficiency.
Both encoders and resolvers are essential technologies in motion control, each excelling in different scenarios. Encoders deliver unmatched precision and easy digital integration, making them the first choice for controlled environments that demand accuracy. Resolvers, on the other hand, remain the gold standard for ruggedness and reliability, capable of surviving where electronics and optics would fail.
Ultimately, the right choice depends on your specific application requirements—accuracy, environment, integration needs, and lifecycle considerations.
