ST-VR56
start-motors
095
| Quantity: | |
|---|---|

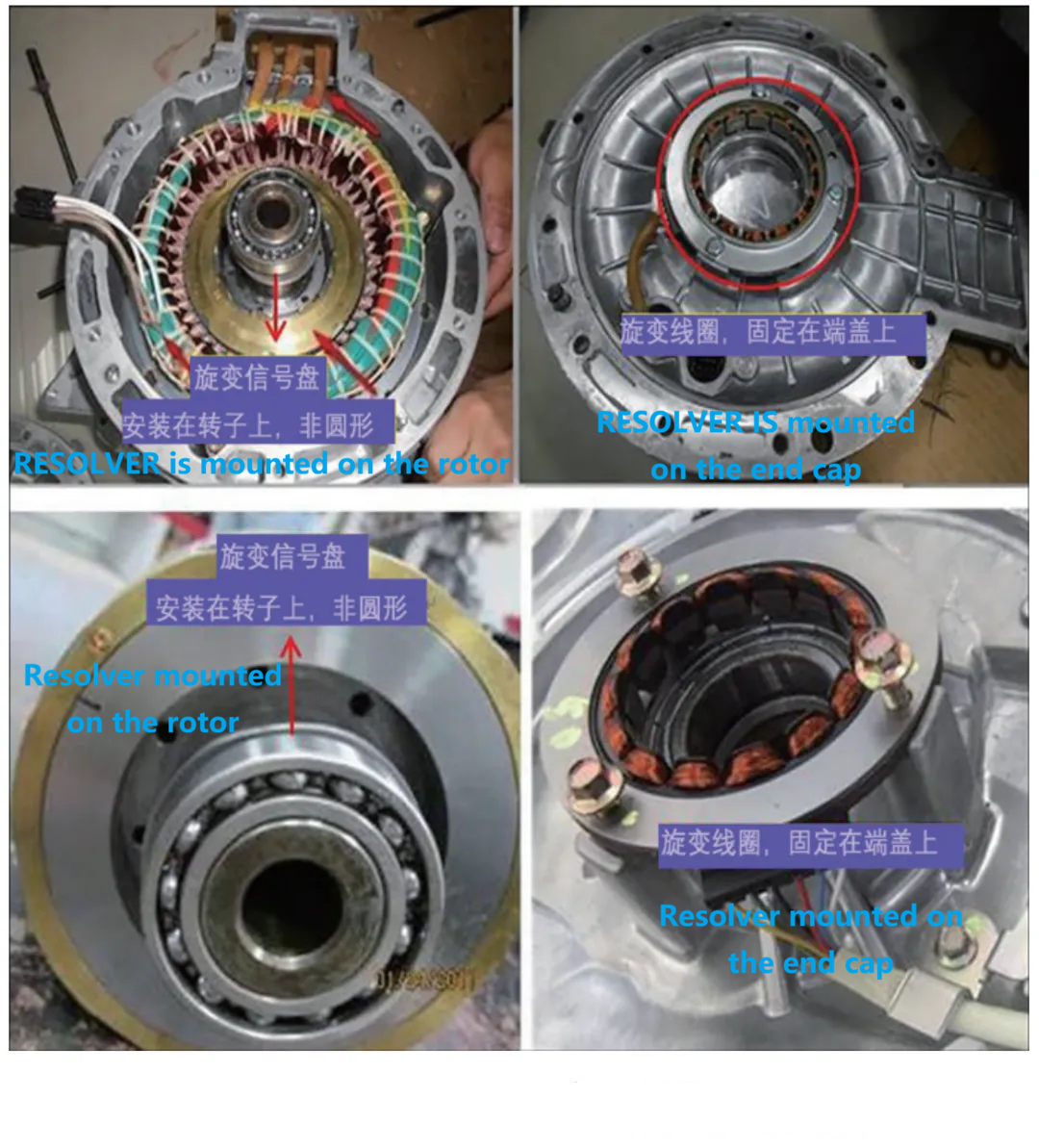

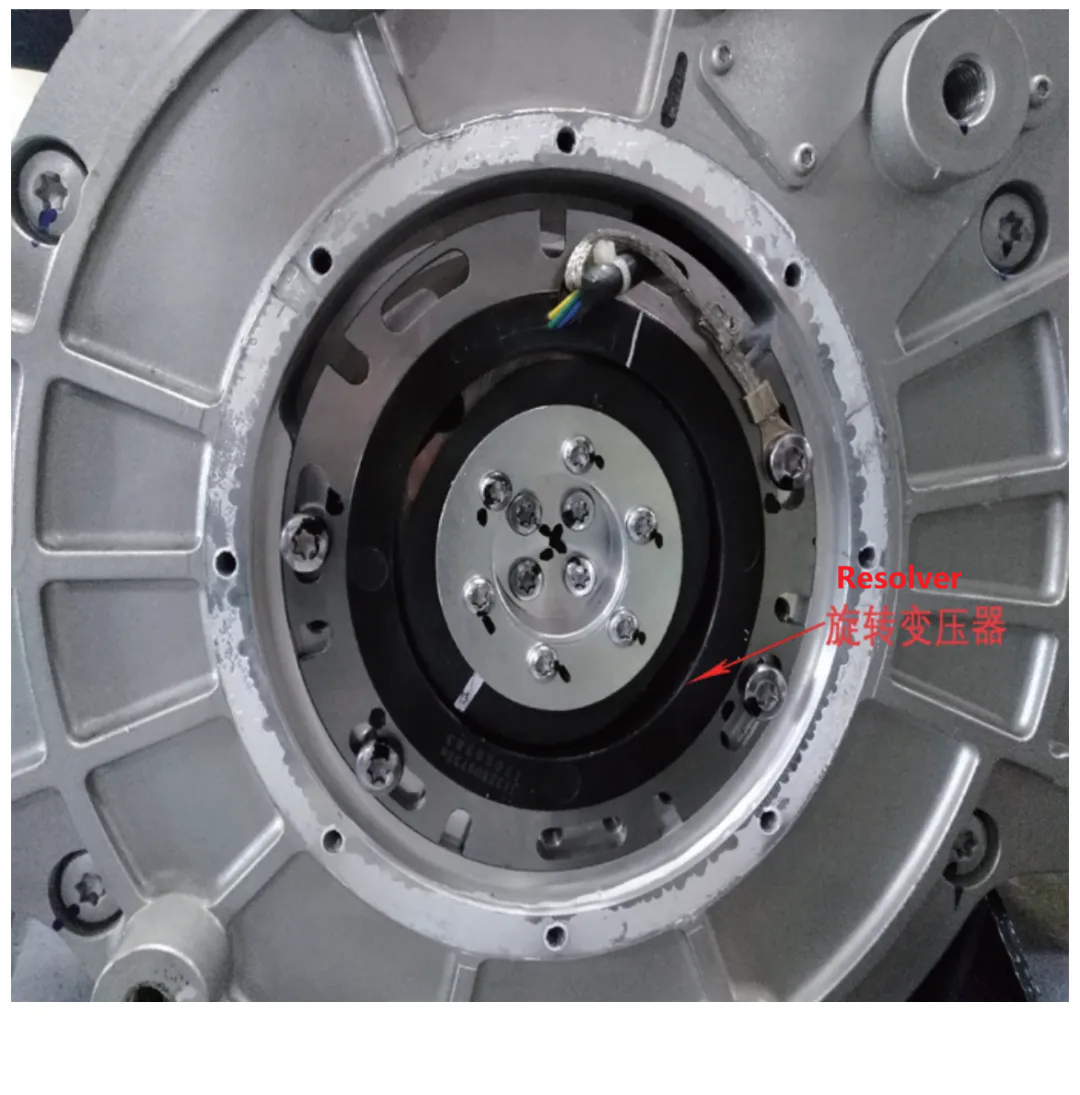

The Resolver is a rotational angle sensor for controlling the power source of an electric vehicle (EV), namely the drive motor. By efficiently controlling the drive motor, power consumption can be reduced. To control the motor based on driving conditions, it is necessary to detect the position of the motor's magnetic poles and accurately grasp the rotational speed. As a sensor for this purpose, the rotary transformer performs extremely well.
Features of Resolver for Electric Vehicles
1. Ultra-thin Size: An integrated structure enables an ultra-thin design and assembly.
2. Permissible Operating Temperature Range: -55℃ to +155℃
3. High Protection Rating: Resistant to vibration and shock.
4. High Rotation Speed: Up to 60,000 RPM
5. High Reliability: Utilizing a structure similar to a motor, but with no winding on the rotor, it boasts high reliability.
6. Low Cost: Significantly reduces the cost of the resolver by decreasing the number of components.
Q1: What makes the J56 Series Resolver resistant to interference?
A1: The J56 Series Resolver is designed with advanced materials and construction techniques that minimize the impact of electrical interference, ensuring stable and accurate position feedback even in noisy environments.
Q2: What applications are best suited for the J56 Series Resolver?
A2: This resolver is ideal for high-precision position sensing in monitoring systems, security applications, robotics, industrial automation, and other environments where electromagnetic interference is a concern.
Q3: How long can the 86 Series Resolver last?
A3: The J56 Series Resolver is built for durability with a life cycle of up to 50 million rotations, ensuring reliable performance over an extended period with minimal wear and tear.
Q4: Is this resolver easy to integrate into existing systems?
A4: Yes, the J56 Series Resolver comes in various configurations, including different output types, resolutions, and mounting options, allowing easy integration into existing monitoring and automation systems.
Q5: How does the J56 Series Resolver reduce maintenance costs?
A5: With its brushless design and robust construction, the J56 Series Resolver requires minimal maintenance and provides long-lasting reliability, helping to reduce operational costs and extend the life of your equipment.
Please contact our sales team for details regarding model naming.
info@start-motors-tech.com (Mr.Louis)
