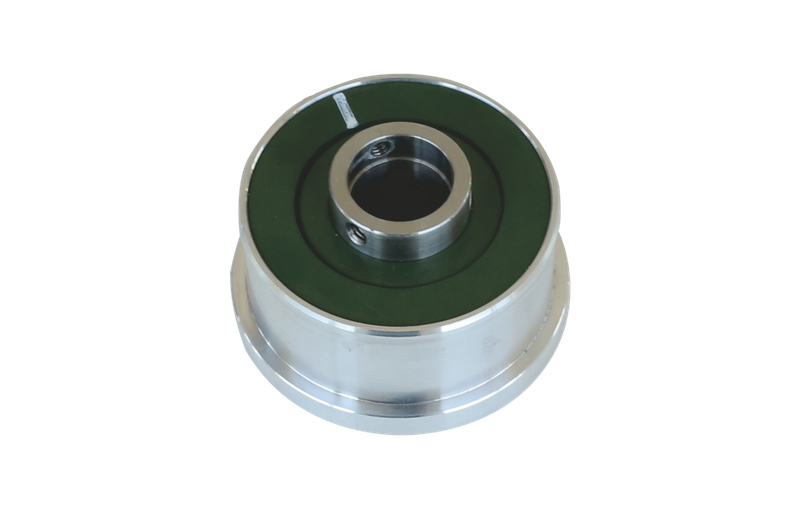

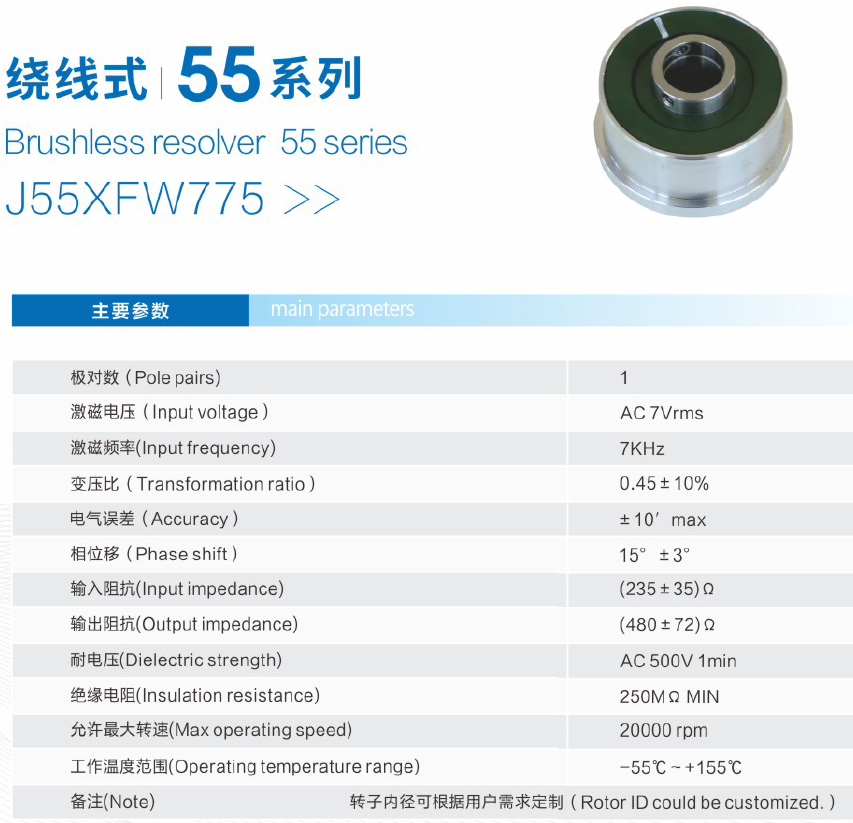

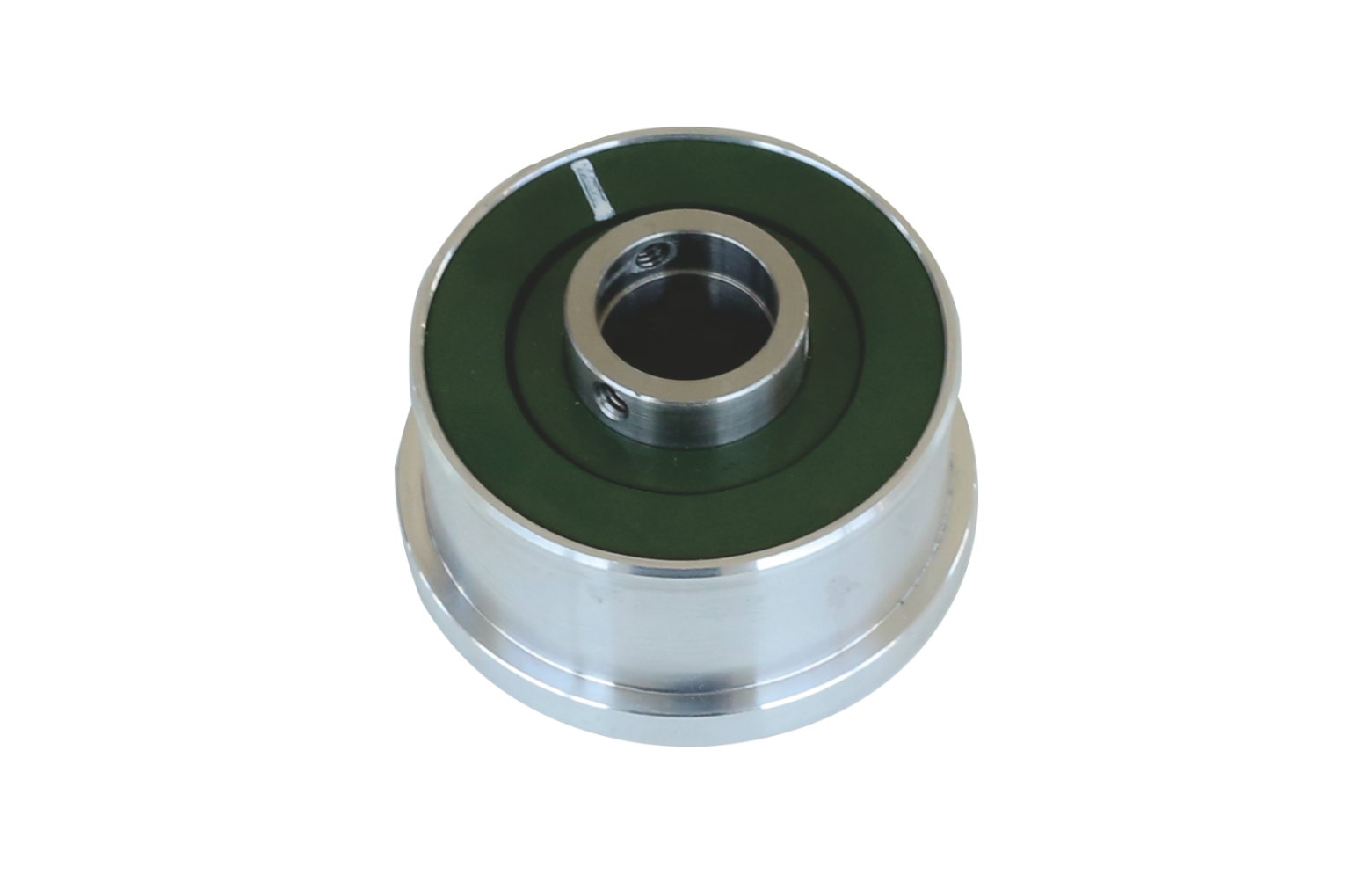

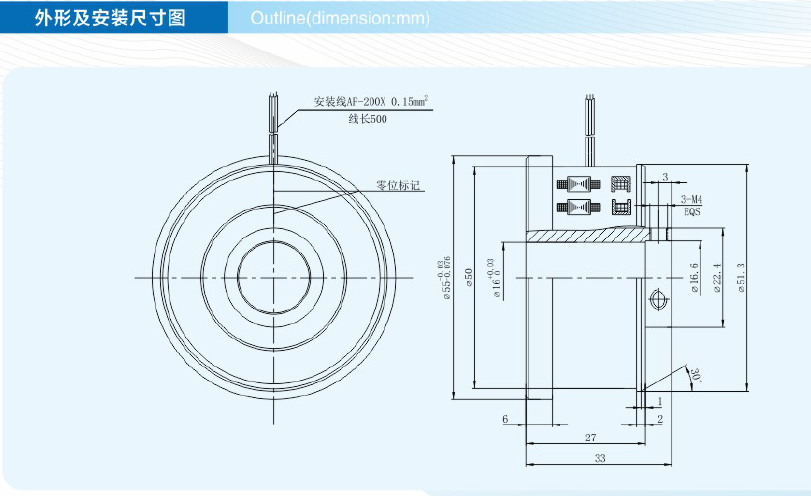

ST55XFW775
start-motors
069
| Quantity: | |
|---|---|
The advantages of this product：
1、Simple structure, sensitive operation, reliable performance: Low requirements for environmental conditions, and it can work normally even in high-temperature and high-dust environments.
2. The output signal has a large amplitude and strong anti-interference capability: it can operate stably in a complex electromagnetic environment.
3. Can completely replace photoelectric encoders: Widely used in angle and position detection systems.
The application scope of this product：
1.Servo control system: It is used to measure the rotational angle displacement and angular velocity of rotating objects, enabling precise position control.
2. Robot system: Provides precise angle feedback for the robot's joints, ensuring the motion accuracy of the robot.
3. Automotive Field: In electric vehicles, rotary transformers are used as position and speed sensors to provide crucial information for motor control. Additionally, in hybrid vehicles, rotary transformers also play an important role in detecting the rotational speed of the electric motor.
4. Industrial Automation: In equipment such as CNC machines, injection molding machines, elevators, and robotic arms, rotary transformers are used to accurately measure angular velocity and position.
5. Transportation sector: In fields such as railway transportation, agricultural and construction equipment, buses and heavy trucks, golf carts and low-speed electric vehicles, rotary transformers have also been widely used.
6. Aerospace and Military Fields: Due to its high reliability and precision, the rotary transformer is widely used in angle and position detection systems in the aerospace and military fields.
The advantages of this product：
1、Simple structure, sensitive operation, reliable performance: Low requirements for environmental conditions, and it can work normally even in high-temperature and high-dust environments.
2. The output signal has a large amplitude and strong anti-interference capability: it can operate stably in a complex electromagnetic environment.
3. Can completely replace photoelectric encoders: Widely used in angle and position detection systems.
The application scope of this product：
1.Servo control system: It is used to measure the rotational angle displacement and angular velocity of rotating objects, enabling precise position control.
2. Robot system: Provides precise angle feedback for the robot's joints, ensuring the motion accuracy of the robot.
3. Automotive Field: In electric vehicles, rotary transformers are used as position and speed sensors to provide crucial information for motor control. Additionally, in hybrid vehicles, rotary transformers also play an important role in detecting the rotational speed of the electric motor.

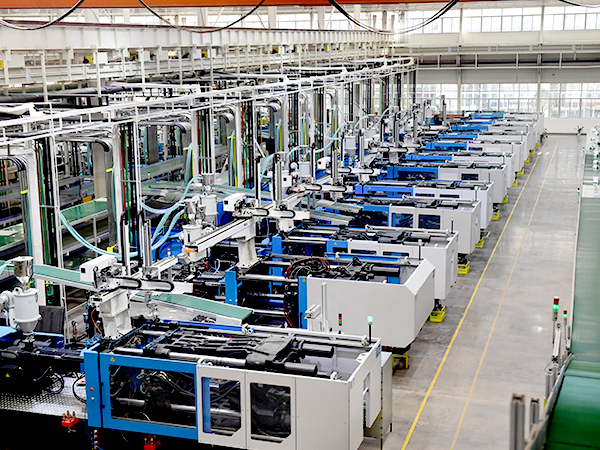

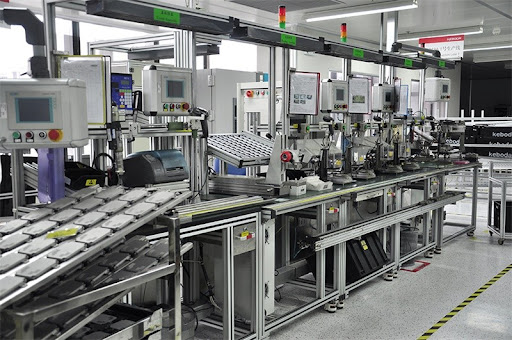

4. Industrial Automation: In equipment such as CNC machines, injection molding machines, elevators, and robotic arms, rotary transformers are used to accurately measure angular velocity and position.
5. Transportation sector: In fields such as railway transportation, agricultural and construction equipment, buses and heavy trucks, golf carts and low-speed electric vehicles, rotary transformers have also been widely used.
6. Aerospace and Military Fields: Due to its high reliability and precision, the rotary transformer is widely used in angle and position detection systems in the aerospace and military fields.
