Precision engineering demands absolute perfection at the component level. A single misaligned sensor can disrupt an entire production line. A resolver relies entirely on its physical alignment and electrical configuration to function accurately. Improper installation triggers cascading system failures. It increases phase shifts and accelerates bearing wear. These issues directly ruin machine uptime and degrade product quality.
A successful installation requires strictly controlled mechanical tolerances. You must achieve precise electrical zero alignment. You also need completely interference-free wiring. This comprehensive guide details the complete implementation process for mounting this critical component. You will learn everything from machining tolerances and mechanical fastening to electrical zeroing. We also cover software setup and advanced troubleshooting techniques for common alignment failures.
Tolerances are critical: Frameless resolvers require exact machining, with perpendicularity kept within 0.0005 inches and eccentricities below 0.003 inches.
Test before locking: Always verify electrical zero using an oscilloscope or DC current lock before applying final torque to the stator.
Zero-impact handling: Resolvers are highly sensitive components; forcing fitments with hammers or overtightening drive belts will permanently damage the internal structure.
Grounding protocol: Shielding must only be grounded at the expansion board/drive end, never at the resolver, to prevent ground loop interference.
Engineers must first choose the right component structure for their specific application. The mechanical foundation dictates the long-term reliability of the feedback system. We generally divide these devices into two primary solution categories.

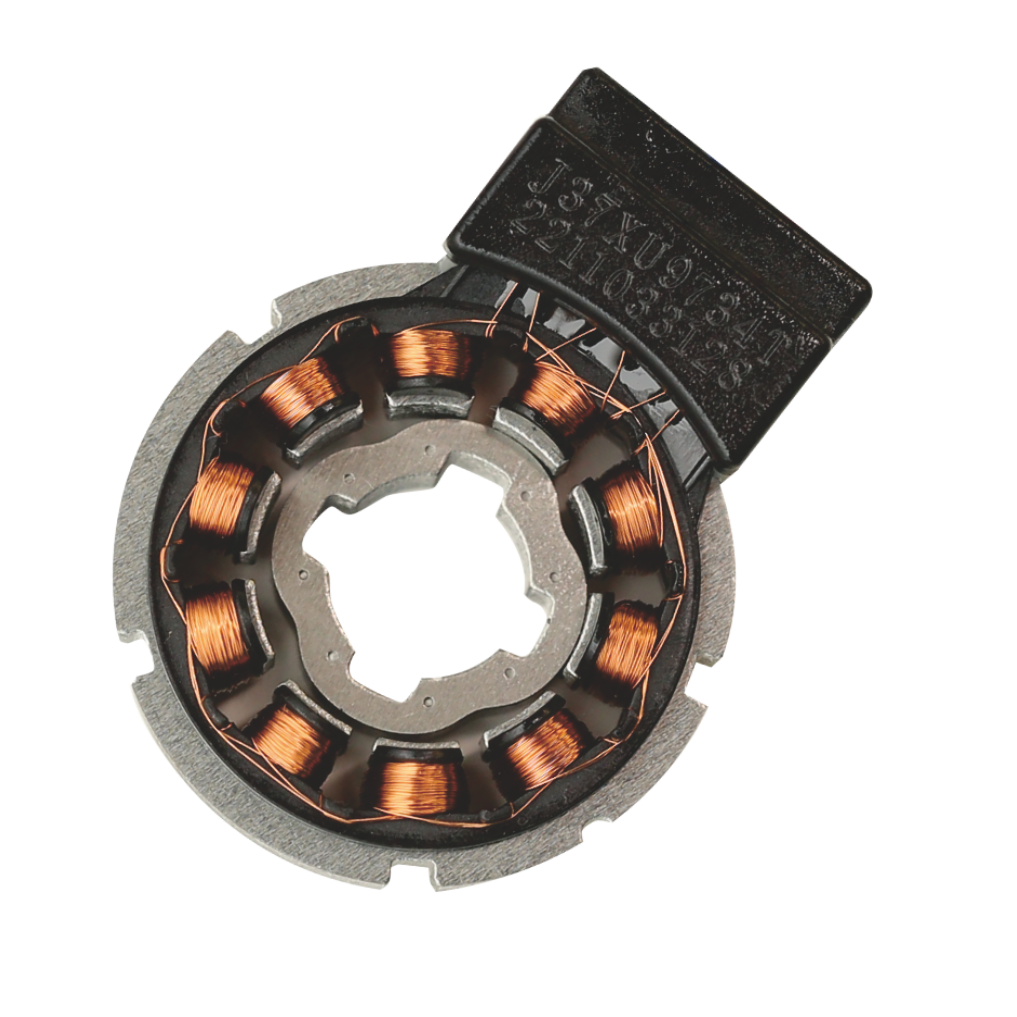

Frameless components consist of a separate rotor and stator. They require the machine builder to supply the external bearings. The builder must also carefully control the magnetic air gap. Frameless designs are highly space-efficient. They fit perfectly into compact direct-drive motors. However, they demand rigorous machining precision from the manufacturer. You carry the burden of maintaining perfect alignment.
Housed versions provide a more integrated approach. They include built-in bearings, a dedicated rotor, and a stator inside one solid package. They are much easier to mount initially. However, housed units require proper coupling alignment. You must avoid excessive radial and axial shaft loads. Standard engineering practices typically dictate keeping the axial load below 8 ounces. Exceeding this limit will crush the internal bearings.
Frameless installations leave no room for machining errors. Your mounting surfaces must adhere to strict dimensional constraints. Failing to meet these specifications alters the electromagnetic air gap. This alteration instantly degrades signal accuracy.
Machining Parameter | Maximum Allowable Tolerance | Impact of Non-Compliance |
|---|---|---|
Axial Misalignment | 0.015 inches | Shifts the magnetic center, causing significant output voltage drops. |
Eccentricity | 0.003 inches | Creates inconsistent air gaps, leading to severe angular errors. |
Perpendicularity | 0.0005 inches | Skews the rotor against the stator, causing velocity ripple. |
Clearance Fit | 0.0002 to 0.001 inches | Too tight causes housing warp; too loose causes vibration drift. |
You must maintain a clearance fit between 0.0002 and 0.001 inches. Never use heavy interference fits. Pressing components too tightly will warp the thin stator housing. This warping permanently alters the internal magnetic flux lines.
Designers face a significant implementation risk regarding thermal dynamics. You must ensure the thermal expansion coefficients of your mounting housing match the sensor. The shaft materials must also align thermally. Metals expand at different rates as operational temperatures rise. If your housing expands faster than the stator, the carefully machined clearance fit vanishes. The component becomes loose. This mismatch causes severe tolerance drift during operation. We highly recommend matching steel components with steel housings whenever possible.
Precise handling sets the stage for a successful setup. These feedback devices rely on fragile internal wire windings and micro-inch air gaps. Rough handling instantly destroys them.
You must follow strict dos and don'ts during physical assembly. Never strike the shaft with a hammer. Applying blunt force causes brinelling in the bearing races. It also fractures the internal potting compound. Test the fit manually first. If a slip-ring or coupling cannot be pushed on by hand, stop immediately. The clearance is too tight. You must remachine the mating surface rather than forcing the fit.
Direct mounting offers the highest accuracy. It eliminates mechanical backlash entirely. Follow this exact workflow for direct-drive setups:
Clean the mating surfaces: Remove all oil, debris, and burrs from the motor shaft and end-bell.
Secure the rotor: Slide the rotor onto the motor shaft. Align the physical zero-reference marks if the manufacturer provided them. Lock it firmly into place.
Mount the stator: Carefully slide the stator over the rotor. Attach it to the motor end-bell using the designated mounting hardware.
Leave it snug: Do not fully tighten the fasteners yet. Leave them merely snug. You need to allow for slight rotational adjustments during the upcoming electrical alignment phase.
Sometimes, direct end-of-shaft mounting is impossible due to machine design constraints. You must use an indirect drive method. Timing belts are common, but they introduce new risks.
Use fine-tooth timing belts. Standard options include 0.375 pitch "L" belts or 0.200 pitch "XL" belts. Coarse belts create unacceptable vibration.
Ensure your pulley diameters exceed 4 inches. Large pulleys minimize chordal action. They drastically reduce mechanical backlash in the signal.
Avoid overtensioning the belt. High radial loads pull the shaft off-center. This tension severely degrades the internal bearing life. Use a sonic tension meter to verify the exact belt tension.
Mechanical mounting only solves half the puzzle. You must synchronize the feedback device with the motor's magnetic poles. This synchronization drives efficient commutation.
Never rely purely on physical alignment marks for high-precision commutation. Manufacturing tolerances stack up. A physical mark might be mechanically perfect but electrically slightly off. You must test before you torque. Always use diagnostic equipment to verify true electrical alignment before locking the stator down permanently.
The static method provides a reliable baseline for finding zero. You manipulate the motor electrically to hold it perfectly still.
First, apply a controlled DC current to the motor phases. This current locks the motor shaft into a known, rigid electrical position. Next, monitor the feedback output signals. Rotate the temporarily mounted stator housing slowly by hand. Stop rotating the moment the output reads absolute zero voltage on the primary channel. This exact spot represents your static true zero. Hold the stator firmly in this position.
Dynamic alignment delivers the highest possible precision. It requires more advanced equipment but guarantees perfect synchronization across the full speed range.
You must back-drive the primary motor using a secondary drive motor. Spin the system at a constant, controlled speed. Connect a dual-channel oscilloscope to the system. Monitor the primary motor's Back-Electromotive Force (Back-EMF) on channel one. Monitor the feedback sine/cosine signal on channel two.
Carefully rotate the stator housing while watching the screen. You will see both sine waves moving. Adjust the housing until the zero-crossing points of both waveforms align perfectly. They must intersect the center axis at the exact same millisecond. This visual confirmation guarantees flawless dynamic alignment.
Once you confirm true zero using either method, you must finalize the mount. Systematically tighten the stator fasteners. Use an alternating star pattern to ensure even pressure. You must tighten them to the exact torque specified by the manufacturer. Use servo clamps or heavy-duty washers to distribute the holding force evenly. Re-verify the zero position after final torquing. Sometimes the rotational force of the wrench shifts the stator slightly.
Flawless mechanical and electrical alignment means nothing if the control system receives corrupted data. Proper wiring protects the delicate analog signals.
Standard interfaces utilize a six-wire configuration. You must connect the six core leads perfectly: SINE+, SINE-, COS+, COS-, REF+, and REF-. Reversing polarity on any of these pairs destroys the positional data.
Wire stripping demands extreme precision. You must adhere to the manufacturer's specified wire stripping lengths. Industry standards typically require leaving exactly ~0.275 inches of exposed wire. Too much exposed wire causes catastrophic short circuits. Too little wire results in weak clamping. You must also follow terminal block torque limits strictly. Tighten terminals to exactly 0.25 N-m. This specific torque guarantees strong vibration resistance over decades of operation.
Analog sine and cosine signals operate at low voltages. They are highly susceptible to industrial electrical noise. Proper grounding serves as your only defense against electromagnetic interference.
You must ground the shielding cable only at one end. Ground it exclusively at the digital expansion board or the main controller side. Never terminate the shield at the sensor end on the motor. Grounding both ends establishes a massive ground loop. This loop acts as an antenna. It pulls severe signal noise from the motor chassis directly into your feedback wires. A single-point ground ensures clean signal transmission.
The hardware phase is complete. Now you must configure the controller software to interpret the analog signals accurately.
Digital Resolution Configuration | Typical Application Scenario | DIP Switch / Software Action |
|---|---|---|
10-bit | High-speed, low-precision spindle drives | Set Hardware DIP switches to 10-bit mode |
12-bit | Standard industrial conveyors | Set Hardware DIP switches to 12-bit mode |
14-bit | Robotic arms requiring smooth motion | Set Hardware DIP switches to 14-bit mode |
16-bit | Ultra-precision CNC machining centers | Set Hardware DIP switches to 16-bit mode |
First, configure the DIP switches on your expansion cards. Match them to your desired digital resolution (10, 12, 14, or 16-bit). Higher resolutions provide smoother low-speed control but limit your maximum top speed.
Next, access the software parameters. Find the "Speed Type" setting. You must set this value to match the motor's internal pole count. Finally, you must calculate the MPHASE value. The MPHASE calculation defines the commutation offset angle. You calculate this by multiplying the mechanical angle by the number of motor pole pairs. Input this final calculated offset into the drive. This calculation syncs the drive algorithms with the incoming feedback.
Even experienced engineers make installation errors. Recognizing the electrical symptoms of mechanical mistakes dramatically speeds up the debugging process.
We use a structured troubleshooting framework to connect physical installation errors to their resulting electrical anomalies. When you see a specific error in the control software, you can trace it back to a distinct physical mounting flaw.
Axial offset occurs when the rotor sits too far forward or backward inside the stator. It pushes the rotor out of the optimal magnetic flux center.
Symptoms: You will notice immediate drops in the overall output voltage. The system will report increased phase shifts between the sine and cosine channels. The drive will also draw noticeably higher input current to compensate for the weak feedback signal. If the motor runs hot, suspect axial misalignment.
Radial offset happens when the rotor does not spin perfectly on center. This creates an uneven air gap that pulses larger and smaller as the shaft turns.
Symptoms: The primary symptom is a proportional increase in electrical error matching the rotation speed. You will also see erratic fluctuations in the null (zero) voltages. The motor might sound like it is surging or hunting for position at low speeds.
Tilt represents the most dangerous mechanical failure. It occurs when the stator housing mounts at an angle relative to the rotor shaft.
Symptoms: The drive will output completely unpredictable position and velocity readings. The motor may refuse to spin entirely, jumping violently in place. In extreme cases, physical friction occurs. The spinning rotor will physically rub against the stationary stator lamination stack. This rubbing generates metal shavings and intense heat. It leads to immediate and catastrophic hardware failure.
Proper installation successfully bridges mechanical precision with electrical accuracy. Success dictates adhering strictly to micro-inch machining tolerances. You must employ safe, zero-impact handling practices at all times. Always verify your true zero positions with oscilloscopes before final assembly.
Engineers currently evaluating their setups should immediately review their machining capabilities against the required specifications. Ensure your standard operating procedures include strict single-point grounding rules. Implement mandatory oscilloscope-alignment protocols for all new machine builds. If you need specific guidance on evaluating your internal machining capabilities or auditing your current setup, please contact us.
A: Grounding at both the motor and controller creates a ground loop. This loop allows ambient electrical noise and drive currents to distort the delicate sine and cosine signals. You must ground the shield only at the drive end. This practice ensures pure signal integrity and prevents erratic motor behavior.
A: Yes, but indirect mounting introduces backlash. You must use fine-pitch belts and large-diameter pulleys. Always avoid high belt tension. Excessive tension side-loads the internal bearings. This side-loading dramatically reduces component lifespan. Direct mounting remains the preferred method for optimal accuracy.
A: You calculate the offset by multiplying the physical rotational angle by the number of motor pole pairs. You then adjust this value for standard 360-degree cycles. Proper calculation synchronizes the drive algorithms with the hardware feedback. This exact synchronization ensures accurate and smooth motor commutation.
