Industrial and aerospace applications demand flawless angular position feedback. Traditional optical or magnetic sensors often fail in these harsh environments. They struggle under extreme stress, heavy vibration, or volatile temperatures. Selecting the wrong sensor type leads to severe consequences. You might face rapid signal degradation. You could encounter integration bottlenecks with existing PLCs. In extreme environments, incorrect sensor choices often cause catastrophic system failure. We wrote this article to solve these critical engineering challenges. We provide an objective, engineering-focused breakdown of classifications and operational limits. We will explore key evaluation criteria for motion control systems. You will learn how to match sensor types to specific mechanical demands. This guide ensures you make resilient, precise procurement and design decisions for your next major project.
Resolvers are primarily classified by mechanical structure (e.g., brushless, variable reluctance) and electrical output (e.g., single-speed, multipolar).
Unlike digital encoders, resolvers lack onboard electronics, enabling operation in extreme conditions (-200°C to +300°C) and providing "bulletproof" reliability.
Multipolar and dual-speed classifications are essential when applications require sub-arcsecond precision.
Successful implementation relies heavily on matching the resolver's analog characteristics to the correct Resolver-to-Digital Converter (RDC) and baseline excitation frequency.
Engineers constantly debate between analog and digital feedback systems. You must understand the core architectural advantages of analog systems. This knowledge drives successful high-stakes application designs. It determines system longevity and physical resilience.
The primary architectural advantage lies in the ratio metric format. The system calculates position using a specific trigonometric equation. We express this as θ = arctan(VS1 / VS2). The position is derived directly from a ratio of Sine and Cosine amplitudes. This mathematical reality provides massive benefits. The system inherently ignores temperature-induced drift. It also ignores long-term aging effects within the coils. If signal strength drops uniformly across both windings, the ratio remains perfectly intact. This keeps your angular position accurate.
Physical resilience limits heavily drive the adoption of analog feedback. Standard optical encoders rely on fragile glass disks. They also require sensitive onboard electronics. A resolver contains absolutely no onboard electronics. It is essentially a rugged rotary transformer. This simplicity enables extreme radiation hardening. Specially designed units tolerate up to 3 MGy of radiation. They also survive extreme temperature ranges. They operate flawlessly from deep cryogenic levels (70K) up to extreme heat (300°C). They offer exceptionally high shock and vibration resistance. This makes them bulletproof in harsh deployments.
You must also consider the fail-safe nature of absolute analog feedback. Industrial power grids fluctuate. System reboots happen unexpectedly. Digital incremental systems lose their physical position during a blackout. They require slow, tedious homing routines upon startup. Analog systems eliminate this problem entirely. The system inherently reports the exact mechanical position immediately upon power restoration. It remembers precisely where it stopped. You avoid dangerous calibration movements in critical machinery.
Mechanical design dictates physical integration limits. You must evaluate structural classifications carefully. These structures determine maintenance schedules, rotational speeds, and system lifespans. We will examine the three main mechanical architectures.
This design utilizes an integrated rotary transformer. It passes the necessary excitation voltage directly to the rotor. This clever mechanism completely eliminates physical brushes. It also removes wear-prone slip rings from the assembly. The resulting design achieves zero mechanical friction between electrical contacts.
You should view this as the industry standard for continuous rotation. It excels in high-speed applications. You get the lowest possible maintenance overhead. The absence of brushes creates the highest Mean Time Between Failures (MTBF). We highly recommend this structure for inaccessible aerospace actuators. It also works perfectly for continuous industrial servo motors.

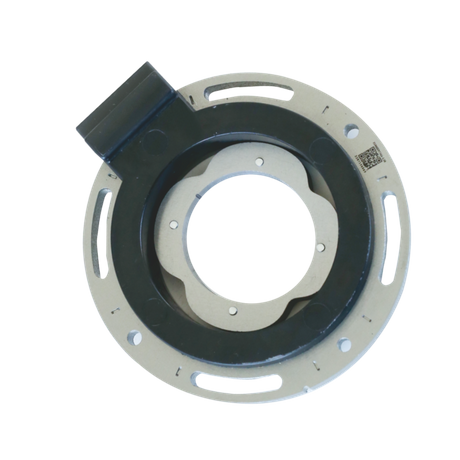

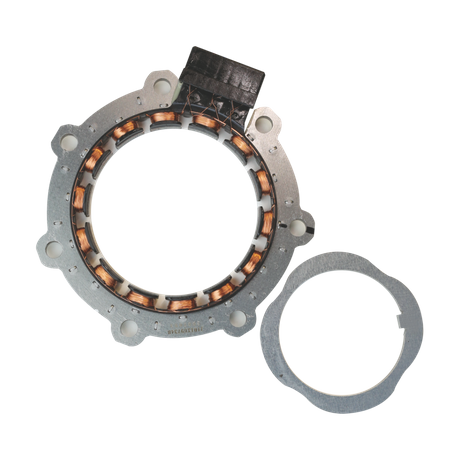

The variable reluctance mechanism takes a different approach. Both the primary and secondary windings reside strictly on the stator. The rotor itself contains zero windings. Instead, the rotor is a specifically shaped passive magnetic core. It features salient poles. As it turns, it mechanically modulates the magnetic reluctance between the windings.
This structural choice provides specific benefits. It is ideal for ultra-high-speed applications. Centrifugal forces easily destroy delicate rotor windings at high RPMs. Since the VR rotor has no copper wire, it survives. You should use this in extremely harsh environments. It eliminates rotor winding failure risks entirely.

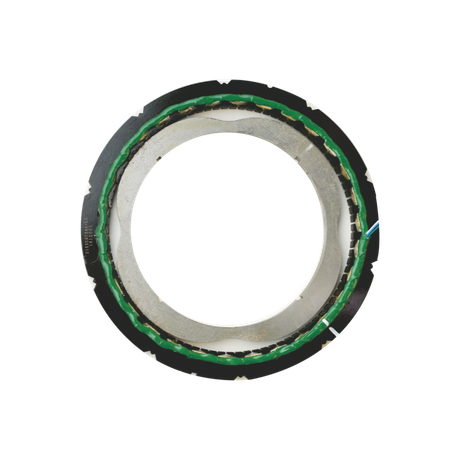

Physical mounting dictates whether you choose hollow shaft or solid core. Hollow shaft models feature a large central bore. They integrate directly around existing drive shafts. You clamp them onto the host motor shaft. Solid core models are traditional, standalone units. They feature their own internal shaft and bearing assembly.
Your decision lens here focuses on space and alignment. Hollow shafts are absolutely mandatory for space-constrained systems. They also dominate high-power transmission designs. Direct integration reduces mechanical coupling errors. Solid core units work well when you have ample mounting space. They simplify initial bench testing and isolated mechanical evaluation.
Table 1: Comparison of Structural Classifications
Structure Type | Primary Mechanism | Best Used For | Common Limitation |
|---|---|---|---|
Brushless | Rotary transformer eliminates brushes | Continuous, high-speed rotation | Slightly larger physical footprint |
Variable Reluctance | Passive rotor, all windings on stator | Ultra-high speeds, high vibration | Lower signal-to-noise ratio at low speeds |
Hollow Shaft | Mounts directly over host shaft | Space-constrained, direct drive | Requires precise shaft alignment during mounting |
Once you select the physical structure, you must define the electrical output. Functional classifications determine your system's theoretical accuracy. You must align the pole count with your precision targets. Let us scale through the available electrical designs.
The single-speed design forms the baseline of absolute positioning. One electrical cycle equals exactly one mechanical revolution. We often refer to this as a 1X capability. The output maps a full 360-degree rotation uniquely.
You apply this for standard angular accuracy. It provides roughly ±5 arcminutes of precision. This satisfies the vast majority of standard industrial automation tasks. It works perfectly for conveyor belt synchronization. It handles basic robotic joint articulation well. You gain full absolute positioning without complex software tracking.
Multipolar designs multiply the internal electrical cycles. The electrical angle becomes a multiple (p) of the mechanical angle. If you have a 4-pole unit, one physical turn generates two complete electrical cycles. This multiplication factor directly increases the system's sensitivity.
This capability is essential for extreme high-precision demands. Empirical performance scaling is quite predictable here. A standard 16-pole model achieves approximately 10 arcseconds of accuracy. If you deploy a highly specialized 128-pole model, you can reach down to 1 arcsecond. You must use multipolar units in telescope mounts or precise lithography machines.
The dual-speed design is an engineering marvel. It combines a single-speed winding and a multipolar winding. Both sets of windings live inside one single housing. The single-speed channel provides the coarse absolute position. The multipolar channel provides the fine incremental precision.
We consider this the premium standard for heavy-duty applications. It rules the large-scale CNC machining world. It is mandatory for tracking radar pedestals. Aerospace flight surface actuators rely heavily on this dual-channel feedback. It delivers absolutely flawless precision over massive rotational arcs.
Computing designs output strictly proportional geometric functions. They provide pure sine or cosine values. Sometimes they provide a linear ratio within very specific sweep angles. They do not attempt full 360-degree absolute mapping.
You find these in highly specialized legacy applications. They handle analog vector resolution. They also measure localized linear stroke movements. Modern digital controllers have largely replaced their computing functions. However, you still specify them for direct replacement in legacy naval or aviation equipment.
Chart: Resolution Accuracy Scaling
Resolver Type | Electrical Cycles per Rev | Typical Accuracy Focus | Position Mapping Type |
|---|---|---|---|
Single-Speed | 1 Cycle | ±5 arcminutes | Absolute across 360° |
16-Pole | 8 Cycles | ~10 arcseconds | Incremental (Absolute within 1 pole pitch) |
128-Pole | 64 Cycles | ~1 arcsecond | Ultra-Fine Incremental |
Dual-Speed | 1 (Coarse) + Multi (Fine) | High Precision Absolute | Absolute precision across 360° |
You cannot buy analog sensors based solely on mechanical dimensions. You must match specific electrical properties to your drive environment. Following a strict specification framework prevents costly integration failures. Focus heavily on these three electrical parameters.
You must rigorously match frequency parameters to the controller environment. The sensor acts as a transformer. It requires a specific baseline AC frequency to operate. If you mismatched the frequency, you suffer massive phase distortion. The system simply will not read the angle correctly.
Look closely at your industry standards. Aerospace and naval standards typically range from 400 Hz to 10 kHz. Many flight actuator baselines sit exactly at 2,930 Hz. Industrial automation tends to default around a 5 kHz baseline. Always check your servo drive documentation before specifying the sensor frequency.
You must validate the Input Voltage (RMS) against the required Output Voltage. The ratio between these two numbers is the transformation ratio. It usually sits around 0.5. This ratio directly dictates your conversion hardware compatibility.
If your input is 10V RMS and the ratio is 0.5, your maximum output amplitude is 5V RMS. Ensure your translation hardware accepts exactly a 5V peak. A mismatch here clips the analog sine waves. This clipping destroys your positional data completely.
Assess the residual voltage at the electrical zero (EZ) position. The EZ is the mechanical baseline. At this exact spot, the Sine winding should theoretically output zero volts. The remaining actual voltage is the null voltage.
High null voltage injects systemic error into the tracking calculations. Unpredictable phase shifts between primary and secondary signals also cause severe issues. Logic controllers cannot easily filter these analog anomalies. You must specify sensors with strictly documented, tight null voltage tolerances.
The sensor physically captures the data. However, the system relies on downstream hardware to understand it. You must manage specific implementation risks during the final design phase. Pay close attention to integration hardware and physical wiring limits.
Evaluate The RDC Dependency
Define The Resolution Configuration
Manage Wiring and Common-Mode Noise
An analog sensor is only as precise as its Resolver-to-Digital Converter (RDC). The RDC sits between the sensor and the microprocessor. It executes the arctangent math in real time. You must assess the RDC processing latency carefully.
Check the internal noise floor of the RDC chip. A high noise floor degrades the theoretical accuracy of your multipolar sensor. The best physical sensor fails if the RDC chip lacks the processing power to track high-speed movements.
You must define the software translation layer accurately. The RDC converts analog curves into digital bits. Outline how your 14-bit or 16-bit outputs map physical revolutions into controller-readable logic. A 16-bit RDC provides 65,536 distinct points per revolution.
Standardize these counts within your PLC logic. Ensure your motion control software understands that 65,536 counts equals precisely 360 degrees. Misconfiguring this scaling layer causes dangerous physical over-travel in robotic arms.
Physical deployment carries significant electromagnetic risks. Analog sine waves are highly susceptible to external noise. Variable frequency drives (VFDs) generate massive electromagnetic interference (EMI) nearby. You must detail physical deployment rules to your installation team.
Ensure twisted-pair shielded cabling is explicitly specified in the blueprints. Ground the shields properly at the controller end. Proper cabling protects the low-level analog signals from VFD interference. Poor wiring ruins the perfect data your new sensor generates.
Your selection logic requires a careful balancing act. You must weigh environmental extremity against absolute precision targets. Harsh environments drive structural choices toward Variable Reluctance or Brushless models. Tight accuracy demands push you toward multipolar or dual-speed functional choices. By mastering these classifications, you eliminate integration failures and maximize equipment lifespan.
As a next step, finalize your PLC and drive module specifications. Lock in your acceptable excitation frequency. Confirm your required RDC resolution. Do this before you request vendor samples for integration testing. Clear baseline numbers prevent wasted engineering cycles. If you need assistance matching parameters to your specific motion control hardware, feel free to contact us today for expert guidance.
A: No. Multiple electrical cycles per physical revolution mean the position is only absolute within a single pole-pitch. To achieve full 360-degree absolute mapping while maintaining high precision, you must specify a dual-speed model instead.
A: It determines proper impedance matching and maintains a high signal-to-noise ratio. Using a 400Hz rated sensor on a 5kHz servo drive causes severe electrical phase distortion. This mismatch ruins the angular position calculation.
A: It is the defined mechanical rotor position where the Sine winding output sits at its absolute minimum and the Cosine winding is at its maximum. This unique spot acts as the foundational reference point for all physical calibration.
