Selecting the right sensor is a critical balancing act. You must achieve necessary system accuracy while managing component costs. This engineering challenge becomes even harder in extreme environments. Engineers often face high vibration, extreme temperatures, or severe radiation. In these harsh conditions, standard optical encoders usually fail. A rugged inductive sensor becomes your only viable option.
The fundamental decision lies between single speed and multi speed architectures. This choice directly impacts your electrical-to-mechanical cycle ratio. It dictates whether your system prioritizes baseline absolute position tracking or high-resolution velocity smoothing. Making the wrong choice can introduce excessive velocity ripple or inflate your hardware budget unnecessarily.
This guide breaks down the physical differences between these sensors. We will explore their signal chain implications and key evaluation criteria. By understanding these core concepts, hardware and control engineers can confidently specify the correct feedback device for their specific application.
Single speed resolvers deliver exactly one electrical cycle (one sine and one cosine wave) per 360° of mechanical rotation, providing definitive absolute position feedback.
Multi speed resolvers generate multiple electrical cycles per mechanical revolution, inherently minimizing mechanical error sources and delivering higher angular precision.
Application matching is paramount: Single speed excels in absolute position tasks, multi speed is critical for smooth velocity control (e.g., CNC, elevators), and motor commutation requires matching the resolver's pole count to the motor.
Signal chain integration matters: Regardless of the speed type, overall system accuracy relies heavily on matching the resolver's transformation ratio (e.g., 0.5 vs 0.286) with a high-performance Resolver-to-Digital Converter (RDC).

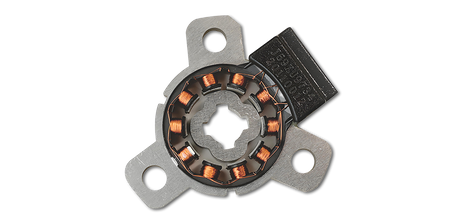

To evaluate these sensors properly, you must understand their internal construction. A resolver acts as a specialized rotary transformer. It consists of a primary winding (usually on the rotor) and two secondary windings (on the stator). The stator windings are mechanically offset by exactly 90 degrees. When you inject an AC excitation signal into the rotor, it induces voltages in the stator windings. The amplitude of these induced voltages changes as the rotor turns.
In this context, the term "speed" has nothing to do with rotational velocity or RPM. Instead, speed refers to the number of pole pairs wound into the stator and rotor. This pole count defines the electrical-to-mechanical ratio of the device.
A 1-speed model features a 1:1 ratio. The mechanical shaft turns exactly one full revolution (360 degrees) to produce one complete electrical cycle. In contrast, a 3-speed model features a 3:1 ratio. When the physical shaft completes one mechanical revolution, the sensor outputs three complete sine and cosine cycles. The more pole pairs you add, the more electrical cycles you squeeze into a single physical turn.
Both architectures rely on the same fundamental math. The stator outputs a sine voltage and a cosine voltage. A downstream chip calculates the shaft angle using a simple ratiometric formula: $\theta = \tan^{-1}(\sin\theta / \cos\theta)$.
This proportional measurement offers massive engineering advantages. Because the system calculates position based on the ratio of two signals rather than their absolute amplitude, it naturally rejects common-mode noise. If a temperature spike increases the resistance of the windings, both signals drop by the same percentage. The ratio remains identical. This gives these inductive sensors incredible thermal drift compensation.
The architecture of a 1-speed unit is relatively straightforward. The rotor contains a single pole pair. As it spins, it interacts with the stator to produce exactly one sine wave and one cosine wave per mechanical revolution. Every physical angle maps to a unique electrical voltage ratio.
This design delivers true absolute position over a full 360° mechanical rotation. Because manufacturing this single-pole structure is less complex, these units are generally more economical to produce. They represent the baseline standard for rugged industrial feedback.
When evaluating a single speed resolver, consider its primary strengths and limitations.
Strengths: The system knows the exact mechanical position instantly upon power-up. You do not need to execute a homing sequence to find a zero mark.
Limitations: They have lower inherent accuracy compared to architectures with more pole pairs. Any physical imperfection—such as mechanical runout, shaft eccentricity, or bearing wobble—translates directly into angular measurement error.
These sensors excel in general position feedback scenarios. We recommend them for applications where environmental robustness matters more than sub-degree precision. Examples include radar antenna positioning, heavy construction equipment, and basic robotic joint tracking.

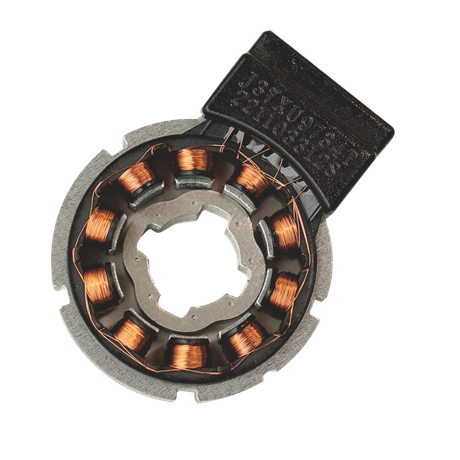

Increasing the pole pairs changes the game entirely. By adding more poles, you divide the 360° mechanical rotation into smaller, repeating electrical sectors. A 4-speed unit divides the mechanical circle into four 90° electrical sectors.
This higher electrical-to-mechanical ratio performs a vital function: it divides and averages out mechanical error sources. If your motor shaft has a slight eccentric wobble, that physical error normally causes a large electrical phase shift. However, in a multi speed design, the multiple pole pairs average this physical distortion across several electrical cycles. This effect drastically reduces the final digital angle error.
This architecture delivers significantly higher resolution. It empowers advanced motion control systems to maintain ultra-smooth operations. Let's look at the evaluation dimensions.
Strengths: They offer exceptional precision. They are vital for applications highly sensitive to velocity ripple. Smooth velocity control requires clean, high-resolution feedback.
Limitations: They output a relative absolute position. The system knows its exact position within a specific electrical sector, but it cannot immediately identify which mechanical sector it occupies upon startup. They also feature higher initial component complexity.
These units are indispensable for demanding applications. We see them heavily utilized in EV/HEV traction drive motors, precision injection molding machines, and demanding industrial robotics. If your control loop suffers from velocity ripple, upgrading your sensor speed often solves the problem.
Specifying a sensor specifically for brushless motor commutation requires a distinct evaluation lens. General position tracking prioritizes overall system accuracy. Commutation, however, prioritizes magnetic alignment.
Brushless motors use stator magnetic fields to pull rotor magnets. To do this efficiently, the motor controller must know exactly where the rotor magnets are located. This requires you to match the sensor's pole count to the motor’s pole count.
If you have a 10-pole brushless motor, you need a 5-speed sensor (which has 10 poles, as 5 pole pairs equal 10 poles). This matching logic ensures the electrical zero of the sensor aligns precisely with the electrical zero of the motor. As the motor turns through one of its electrical cycles, the sensor simultaneously outputs exactly one electrical cycle. The control algorithm stays perfectly synced.
Engineers often over-specify accuracy for commutation tasks. Extreme accuracy is rarely required here. Typically, a commutation accuracy of ±1° is perfectly sufficient for smooth motor operation. Demanding tighter tolerances here inflates your component budget without delivering proportional control benefits. Save the extreme accuracy requirements for the final payload positioning loop.
You can buy the most precise sensor in the world, but it will fail to deliver system accuracy if you design the downstream signal chain improperly. The analog-to-digital conversion stage is where most engineering teams stumble.
The RDC translates analog sine and cosine waves into a digital angle. You generally choose between two tracking algorithms: Phase-Locked Loop (PLL) or simple trigonometric (arctangent) calculation.
A simple arctangent calculation is fast but susceptible to high-frequency noise. A PLL algorithm, however, uses a closed-loop tracking methodology. It acts as a dynamic filter for electrical noise. It mathematically tracks the velocity and position simultaneously, providing far superior velocity tracking in noisy industrial environments.
The transformation ratio defines how much voltage the stator outputs relative to the rotor input. Common ratios are 0.286 and 0.5.
A low transformation ratio like 0.286 poses a hardware risk. It starves the Analog-to-Digital Converter (ADC) of voltage swing. If your RDC expects a wide voltage range, a low-amplitude signal will only utilize a fraction of the ADC's bits. We strongly recommend higher ratios, like 0.5, to maximize the input range of the RDC. This simple hardware choice improves the Effective Number of Bits (ENOB) and boosts your Signal-to-Noise Ratio (SNR).
These sensors present complex inductive and resistive loads to your driving circuit. Typical impedance ranges from 50 to 200 ohms. The excitation requirements often span 4VAC to 26VAC at frequencies between 50Hz and 20kHz.
You cannot drive this load with a weak operational amplifier. You need robust, high-current op-amps. Furthermore, most modern RDCs generate their excitation signal using an internal Digital-to-Analog Converter (DAC). This DAC introduces stair-step quantization noise. You must implement a 3rd-order active low-pass filter to smooth this excitation signal before it reaches the rotor. Failing to filter this noise will corrupt the magnetic flux and degrade your position accuracy.
RDC Algorithm Type | Noise Immunity | Velocity Tracking | Best Application |
|---|---|---|---|
Arctangent (Direct) | Low | Prone to velocity ripple | Static or slow-moving position checks |
Phase-Locked Loop (PLL) | High (Dynamic Filtering) | Extremely smooth | High-speed servos, CNC, EVs |
Selecting the right sensor requires a systematic approach. You must weigh absolute position needs against dynamic precision needs. We have structured a simple decision matrix to help you finalize your choice.
System Requirement | Recommended Architecture |
|---|---|
Require true absolute position upon startup across 360°? | Single Speed Architecture |
Require maximum precision and minimal velocity ripple? | Multi Speed Architecture |
Require seamless brushless motor commutation? | Matched Multi Speed (Match motor pole pairs) |
Require both absolute tracking AND extreme precision? | Dual-Speed Architecture (Coarse + Fine Tracks) |
If your application demands both true absolute tracking and sub-arc-second precision, consider a dual-speed design. These specialized units pack a 1-speed coarse track and a multi-speed fine track into the same housing. The control system uses the coarse track to establish absolute position on startup. It then switches to the fine track for high-precision velocity control.
Once you select your architecture, follow these next steps to finalize your hardware:
Map physical constraints: Decide if your assembly requires a housed unit with bearings, a frameless rotor/stator pair, or a hollow-shaft design for cable routing.
Verify the transformation ratio: Ensure the stator output voltage swing matches the input range of your selected RDC chip.
Design the excitation circuit: Verify your driver amplifiers can supply the necessary AC current without saturating.
Reach out for support: If you are unsure about matching pole pairs, you should multi speed resolver application engineers to verify your system calculations.
The choice between single speed and multi speed architectures represents a direct trade-off. You must balance the convenience of absolute 360° position tracking against the mathematical precision of minimized mechanical error. General tracking tasks benefit from the simplicity of single pole pairs. High-performance velocity loops and EV traction motors demand the error-averaging capabilities of multiple pole pairs.
Remember that a rugged sensor is only as good as its electronic foundation. Successful deployment requires viewing this component not just as a standalone mechanical device. It is the front-end of a highly integrated analog-to-digital signal chain. By carefully matching transformation ratios, employing robust PLL tracking, and filtering your excitation signals, you guarantee reliable motion control in the harshest environments.
A: A multi-speed resolver generates multiple electrical cycles within a single 360° physical rotation to increase precision. It does not track total revolutions. A multi-turn encoder counts how many total complete revolutions the shaft has made beyond 360°. Encoders achieve this using physical gears, battery-backed memory, or Wiegand energy-harvesting sensors.
A: Yes, but it is more susceptible to mechanical errors. Physical imperfections like bearing runout or shaft eccentricity manifest directly as velocity ripple in your control loop. For precise velocity loops, multi speed architectures are strongly preferred because they mathematically average out these mechanical imperfections.
A: The transformation ratio determines the amplitude of the output signals sent to the RDC. A higher ratio (e.g., 0.5) utilizes more of the ADC's dynamic voltage range. This lowers the effective noise floor and improves the final digital angle calculation, regardless of whether the unit uses single or multi speed windings.
