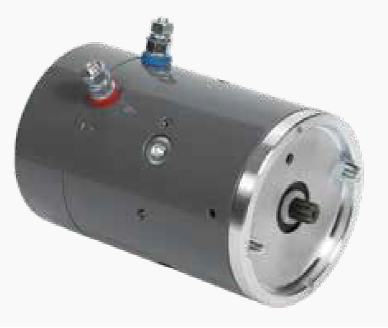

The Front of The Truck Was Flipped Using Hydraulic DC Motor ST114-E Series

Model:
ST114-E Series
Brand:
start-motors
Code:
098

Availability:

Quantity:



Inquire Add to Basket

Product Description

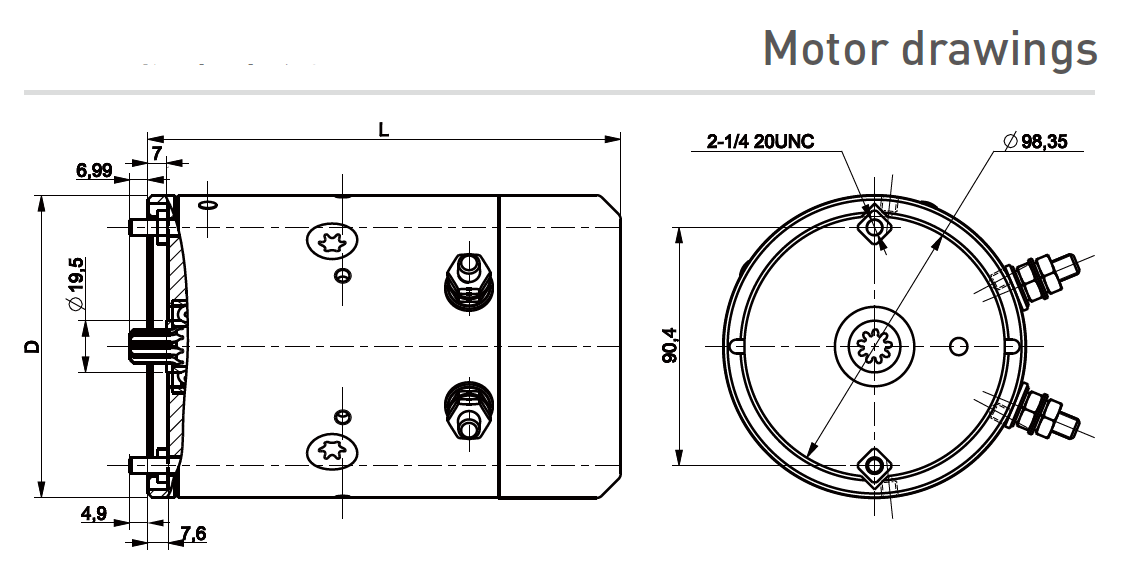

1751019499798

电机参数 Motor Data		电机型号 Motor Model
电机参数 Motor Data		ZD028	ZD017	ZD033	ZD042	ZD029A	ZD035	ZD029	ZD085	ZD010	ZD132
额定功率 Nominal Power	kW	1.6	1.8	2.2	2.2	2.2	2.2	2.5	2.8	2.0	3.0
额定电压 Nominal Voltage	V	12	12	12	24	24	24	24	24	48	48
环境温度 Environmental Tempeature	°C	-20-40°C	-20-40°C	-20-40°C	-20-40°C	-20-40°C	-20-40°C	-20-40°C	-20-40°C	-20-40°C	-20-40°C
空载转速 No-load Speed	Rpm	5200	7000	6200	4000	7000	6200	7000	8200	4800	5200
空载电流 No-load Current	A	45	50	50	20	25	25	25	25	15	20
额定负载 Nominal Torque	N.m	6	6	6	8	8	8	10	10	8	9.6
额定转速 Nominal Speed	Rpm	2650	3000	3000	2650	2800	2800	2850	3000	2650	3500
额定电流 Nominal Current	A	200	225	210	125	145	135	175	175	75	105
工作制 Duty Cycle	S2	2MIN	2MIN	8MIN	2MIN	2MIN	2MIN	2MIN	5MIN	2MIN	6MIN
工作制 Duty Cycle	S3	7%ED	7%ED	20%ED	7%ED	8%ED	7%ED	8%ED	13%ED	7%ED	10%ED
电机转向 Motor Rotation	CW/CCW	CW	CW	CW	CW	CW	CW	CW	CW	CW	CW
电机噪音 Motor Noise	dBA/1m	72	72	72	72	72	72	72	72	72	72
电机尺寸 Motor Dimension	L(mm)	179	179	189.5	171.7	178.6	175.6	179	204	179	213.7
电机尺寸 Motor Dimension	D(mm)	114	114	114	114	114	114	114	114	114	114
电机重量 Motor Weight	Kg	7.0	7.0	8.2	7.2	7.2	7.2	7.2	9.4	7.0	9.4
电机设计 Motor Design
绝缘等级 Insulation Degree	Class	F	F	F	F	F	F	F	F	F	F
温控 Thermal Protection	Optional	√	√	√	√	√	√	√	√	√	√
防水等级 IP Class	Class	IP54	IP54	IP54	IP54	IP65	IP54	IP54	IP54	IP54	IP23
励磁方式 Excitation	Wound	复励 Compound	串励 Series	串励 Series	复励 Compound	复励 Compound	复励 Compound	复励 Compound	串励 Series	复励 Compound	复励 Compound
振动 Vibration	mm/S	<2	<2	<2	<2	<2	<2	<2	<2	<2	<2
绝缘强度 Insulation Resistance	MΩ	>10	>10	>10	>10	>10	>10	>10	>10	>10	>10
电机寿命 Motor Endurance	Hrs	400	400	800	400	400	400	400	800	400	400
