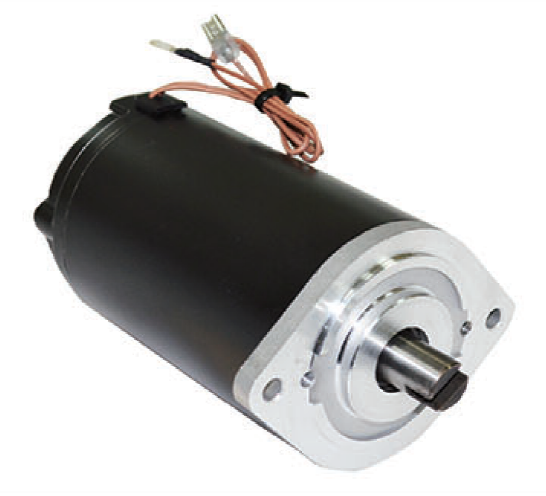

High-torque Hydraulic DC Motor ST78.5-A Series Are Applied To The Winches

Model:
ST78.5-A Series
Brand:
start-motors
Code:
0100

Availability:

Quantity:



Inquire Add to Basket

Product Description

The DC motors used in our hydraulic system usually have permanent magnets as the stator. They receive current from an external power source, causing the stator coils to generate a magnetic field. When the motor starts, the hydraulic pump begins to operate, drawing hydraulic oil from the oil tank into the hydraulic pump, and then generating high-pressure hydraulic oil through the working chambers of the hydraulic pump.

The high-pressure hydraulic oil passes through the valve system and drives the hydraulic cylinder or hydraulic motor to work. At the same time, the hydraulic-driven mechanical devices are connected to the motor's shaft through gears, chains, etc., converting the mechanical energy output by the motor into the required working energy.

We can offer various hydraulic circuits with flow rates ranging from 2lpm to 16lpm, and the pressure can reach up to 250bar.

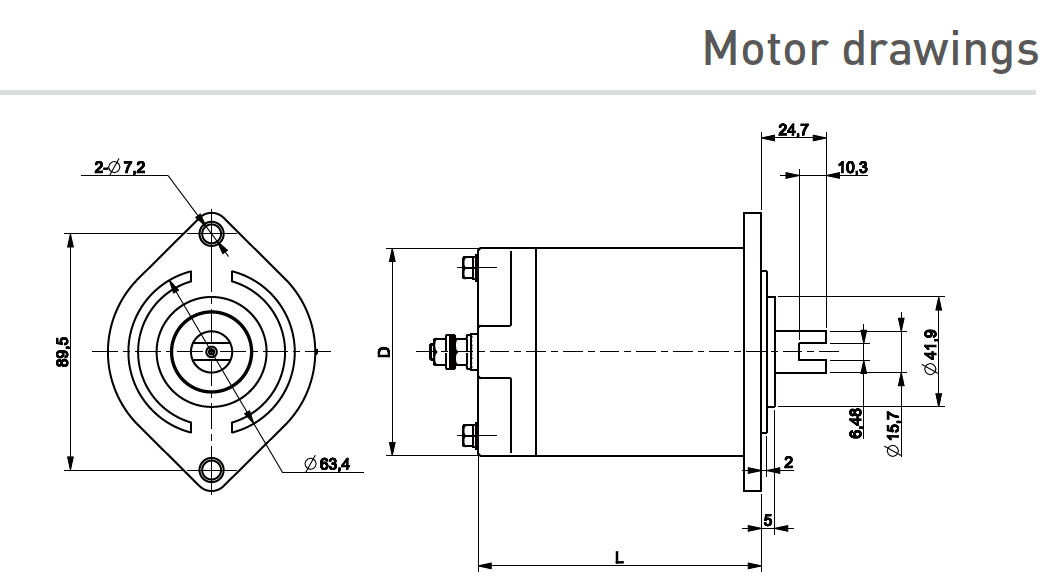

1750987455290

电机参数 Motor Data		电机型号 Motor Model
电机参数 Motor Data		ZD087	ZD089	ZD071	ZD007	ZD075	ZD088	ZD090	ZD072	ZD008	ZD076	ZD066	ZD067	ZD112	ZD102
额定功率 Nominal Power	kW	0.15	0.3	0.5	0.8	0.8	0.15	0.3	0.5	0.8	0.8	0.15	0.3	0.5	0.8
额定电压 Nominal Voltage	V	12	12	12	12	12	24	24	24	24	24	48	48	48	48
环境温度 Environmental Tempeature	°C	-20-40°C	-20-40°C	-20-40°C	-20-40°C	-20-40°C	-20-40°C	-20-40°C	-20-40°C	-20-40°C	-20-40°C	-20-40°C	-20-40°C	-20-40°C	-20-40°C
空载转速 No-load Speed	Rpm	2500	2500	4200	4200	4600	2500	2500	4200	4600	4600	3200	2800	3600	4600
空载电流 No-load Current	A	2	5	10	12	14	1.2	2	6	5	5	1.2	1	2	2.5
额定负载 Nominal Torque	N.m	1.2	1.6	2	2	2	0.8	1.6	2	2	2	0.8	1.6	2	2
额定转速 Nominal Speed	Rpm	1200	1800	2300	3100	3400	1650	1800	2400	3100	3400	1650	1800	2500	3100
额定电流 Nominal Current	A	25	40	72	85	90	10	20	36	42	50	5	10	16	23
工作制 Duty Cycle	S2	20MIN	9MIN	2.5MIN	2.5MIN	2MIN	20MIN	3MIN	2.5MIN	2.5MIN	2MIN	6MIN	3MIN	3MIN	2.5MIN
工作制 Duty Cycle	S3	30%ED	18%ED	10%ED	10%ED	10%ED	30%ED	10%ED	10%ED	10%ED	10%ED	20%ED	10%ED	10%ED	10%ED
电机转向 Motor Rotation	CW/CCW	CCW	CCW	CW	CW	CW	CCW	CCW	CW	CW	CW	CCW	CCW	CCW	CW
电机噪音 Motor Noise	dBA/1m	68	68	68	68	68	68	68	68	68	68	68	68	68	68
电机尺寸 Motor Dimension	L(mm)	108	137	137	137	137	108	137	137	137	137	108	137	137	137
电机尺寸 Motor Dimension	D(mm)	78.5	78.5	78.5	78.5	79	78.5	78.5	78.5	78.5	79	78.5	78.5	78.5	78.5
电机重量 Motor Weight	Kg	2.1	2.6	2.6	2.6	2.6	2.1	2.6	2.6	2.6	2.6	2.1	2.6	2.6	2.6
