ST114-HT Series
start-motors
Availability: | |
---|---|
Quantity: | |

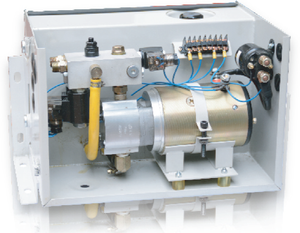

The product is widely used in Tail gatefor car lift, Power units for car lift, Electric stacker, Train boarding bridge, Hydraulic aerial cage, Sanitation equipment, and dump truck.
电机参数 Motor Data | 电机型号 Motor Model | |||||||
ZD053 | ZD048 | ZD033 | ZD056 | ZD035 | ZD116 | ZD010 | ||
额定功率 Nominal Power | kW | 1.3 | 1.6 | 2 | 1.3 | 2.2 | 2.5 | 2 |
额定电压 Nominal Voltage | V | 12 | 12 | 12 | 24 | 24 | 24 | 48 |
环境温度 Environmental Tempeature | °C | -20-40°C | -20-40°C | -20-40°C | -20-40°C | -20-40°C | -20-40°C | -20-40°C |
空载转速 No-load Speed | Rpm | 5500 | 4200 | 6200 | 5500 | 5500 | 5500 | 5000 |
空载电流 No-load Current | A | 35 | 35 | 50 | 20 | 20 | 20 | 10 |
额定负载 Nominal Torque | N.m | 4.7 | 6 | 5.4 | 4.7 | 6 | 10 | 7.5 |
额定转速 Nominal Speed | Rpm | 2400 | 2650 | 2586 | 2400 | 2800 | 2500 | 2700 |
额定电流 Nominal Current | A | 160 | 185 | 200 | 80 | 110 | 150 | 65 |
工作制 Duty Cycle | S2 | 1.2MIN | 4MIN | 7.5MIN | 1.2MIN | 2MIN | 2.5MIN | 3MIN |
S3 | 4.5%ED | 8%ED | 20%ED | 4.5%ED | 7.5%ED | 10%ED | 12%ED | |
电机转向 Motor Rotation | CW/CCW | CW | CW | CW | CW | CW | CW | CW |
电机噪音 Motor Noise | dBA/1m | 72 | 72 | 72 | 72 | 72 | 72 | 72 |

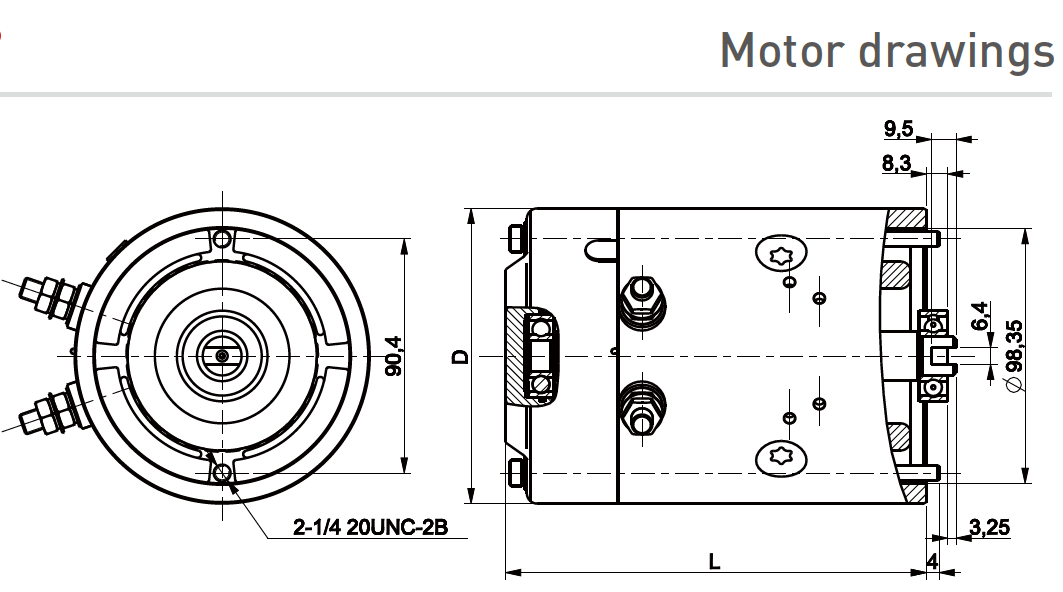

电机尺寸 Motor Dimension | L(mm) | 138 | 162.5 | 179.5 | 138 | 162.5 | 179.1 | 162.5 |
D(mm) | 114 | 114 | 114 | 114 | 114 | 114 | 114 | |
电机重量 Motor Weight | Kg | 5.1 | 7.2 | 8.2 | 5.1 | 6.9 | 8.2 | 6.9 |
电机设计 Motor Design | ||||||||
绝缘等级 Insulation Degree | Class | F | F | F | F | F | F | F |
温控 Thermal Protection | Optional | √ | √ | √ | √ | √ | √ | √ |
防水等级 IP Class | Class | IP54 | IP54 | IP54 | IP54 | IP54 | IP54 | IP54 |
励磁方式 Excitation | Wound | 串励 Series | 复励 Compound | 串励 Series | 串励 Series | 复励 Compound | 复励 Compound | 复励 Compound |
振动 Vibration | mm/S | <2 | <2 | <2 | <2 | <2 | <2 | <2 |
绝缘强度 Insulation Resistance | MΩ | >10 | >10 | >10 | >10 | >10 | >10 | >10 |
电机寿命 Motor Endurance | Hrs | 400 | 400 | 400 | 400 | 400 | 400 | 400 |
