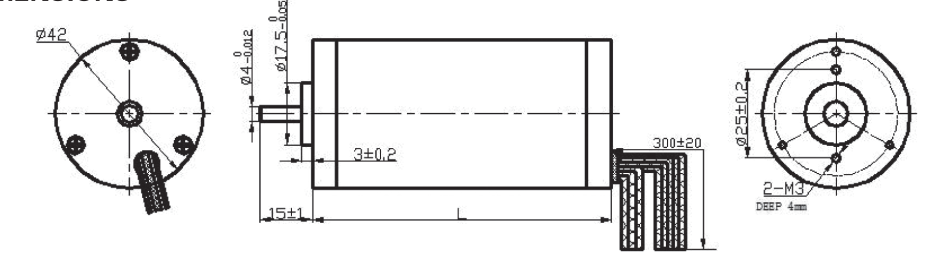

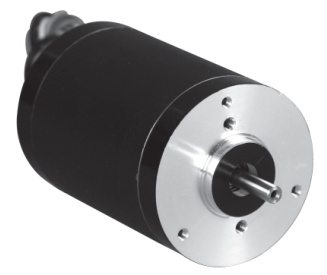

Motor size( unit: mm)
| Motor Data | Unit | ST42RBL30-24V-4009A-P | ST42RBL60-24V-4030A-P | ST42RBL85-24V-4060A-P | ST42RBL93-24V-6375A-P |
Number of poles | 8 | ||||
Number of phases | 3 | ||||
Rated voltage | VDC | 24 | |||
Rated torque | mN.m | 20 | 56 | 150 | 115 |
Continuous stall torque | mN.m | 24 | 68 | 180 | 138 |
Rated speed | RPM | 4000 | 4200 | 4000 | 6300 |
Rated power | W | 8.4 | 25 | 62 | 76 |
Peak torque | mN.m | 60 | 170 | 450 | 350 |
Peak current | A | 1.5 | 4.2 | 11.2 | 11.5 |
Line to line inductance | mH | 5.1 | 1.94 | 0.86 | 0.36 |
Torque constant | mN.m/A | 39.8 | 41.04 | 40.5 | 30.6 |
Back EMF | Vrms/KRPM | 2.95 | 3.04 | 3.0 | 2.27 |
Rotor inertia ) | g.cm2 | 15.6 | 33 | 84 | 94 |
Motor length L | mm | 30 | 60 | 85 | 93 |
Weight | Kg | 0.25 | 0.4 | 0.7 | 0.8 |
引出线型号Type | 引出线颜色Color | 功能Functions |
UL1007 AWG26 | 蓝色 ( Blue ) | 霍尔电源正 ( Vcc ) |
黄色 (Yellow ) | 霍尔 U ( Hu ) | |
棕色 ( Brown ) | 霍尔 V ( Hv ) | |
红色 ( Red) | 霍尔 W ( Hw ) | |
绿色 ( Green ) | 霍尔电源负 ( GND ) | |
UL1007 AWG22 | 红色 ( Red) | U相 ( Phase U ) |
棕色 ( Brown ) | V相 ( Phase V ) | |
黑色 ( Black) | W相 ( Phase W ) |
Motor size( unit: mm)
| Motor Data | Unit | ST42RBL30-24V-4009A-P | ST42RBL60-24V-4030A-P | ST42RBL85-24V-4060A-P | ST42RBL93-24V-6375A-P |
Number of poles | 8 | ||||
Number of phases | 3 | ||||
Rated voltage | VDC | 24 | |||
Rated torque | mN.m | 20 | 56 | 150 | 115 |
Continuous stall torque | mN.m | 24 | 68 | 180 | 138 |
Rated speed | RPM | 4000 | 4200 | 4000 | 6300 |
Rated power | W | 8.4 | 25 | 62 | 76 |
Peak torque | mN.m | 60 | 170 | 450 | 350 |
Peak current | A | 1.5 | 4.2 | 11.2 | 11.5 |
Line to line inductance | mH | 5.1 | 1.94 | 0.86 | 0.36 |
Torque constant | mN.m/A | 39.8 | 41.04 | 40.5 | 30.6 |
Back EMF | Vrms/KRPM | 2.95 | 3.04 | 3.0 | 2.27 |
Rotor inertia ) | g.cm2 | 15.6 | 33 | 84 | 94 |
Motor length L | mm | 30 | 60 | 85 | 93 |
Weight | Kg | 0.25 | 0.4 | 0.7 | 0.8 |
引出线型号Type | 引出线颜色Color | 功能Functions |
UL1007 AWG26 | 蓝色 ( Blue ) | 霍尔电源正 ( Vcc ) |
黄色 (Yellow ) | 霍尔 U ( Hu ) | |
棕色 ( Brown ) | 霍尔 V ( Hv ) | |
红色 ( Red) | 霍尔 W ( Hw ) | |
绿色 ( Green ) | 霍尔电源负 ( GND ) | |
UL1007 AWG22 | 红色 ( Red) | U相 ( Phase U ) |
棕色 ( Brown ) | V相 ( Phase V ) | |
黑色 ( Black) | W相 ( Phase W ) |
