EP-BLDC110series
start-motors
011
| Quantity: | |
|---|---|
Key performance parameters match
1、Power and torque
Calculate the continuous torque (rated torque) and the peak torque (overload capacity) based on the load inertia.
The conveying line requires a peak torque of at least 200% of the rated torque when starting under heavy load.
2、Speed range
Low-speed high-torque (such as 0.1 - 500 RPM) or high-speed applications (such as 3000 - 6000 RPM).
3、Encoder type
Incremental (low-cost): Suitable for general positioning.
Absolute value (multi-circle 17-bit +): High precision, power-off memory position.
4、Protection level
Damp/washing environment: IP66/IP67.
Dust environment: IP6X + Dust-proof sealing.
5、Mechanical interface and installation requirements
Flange and shaft extension
European standard: IEC (such as B5/B14), NEMA (such as C-Face).
Shaft extension type: Keyway, smooth shaft, with locking sleeve (to prevent loosening).
6、Cooling method
Natural cooling (IC410): Suitable for low power.
Mandatory air cooling (IC416): Explosion-proof fans are required.
Water cooling (ICW): High power density scenario

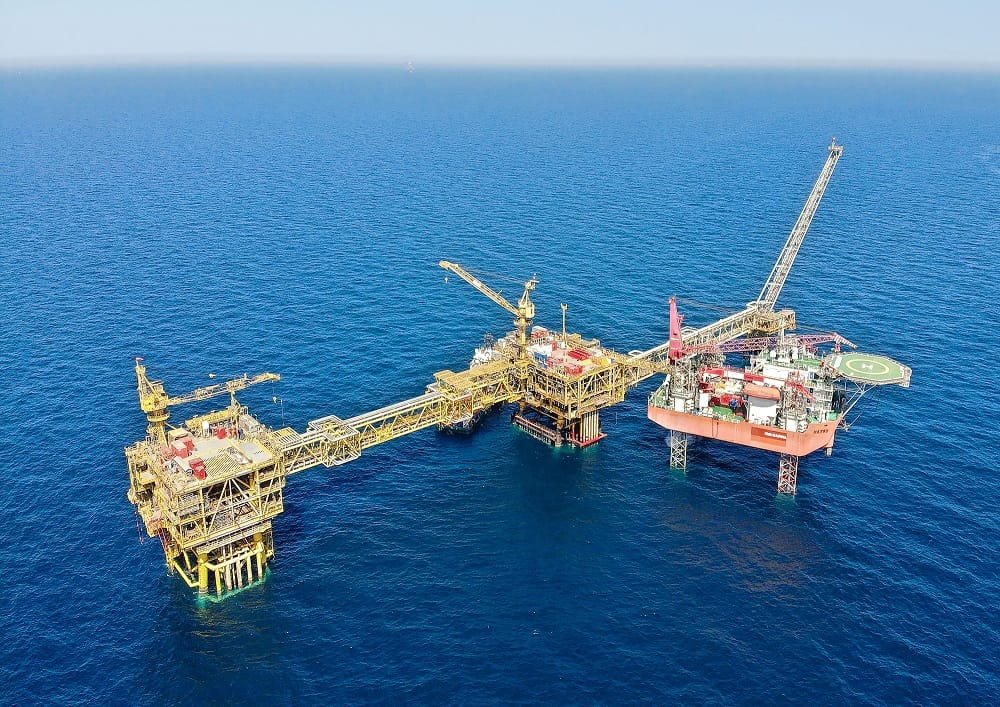

DC Explosion-proof motors are special types of motors specifically designed for environments prone to fire and explosion. They achieve this by means of special structures (such as explosion-proof enclosures, sealing designs, etc.) to prevent internal electric sparks or high temperatures from igniting external explosive substances. They are widely used in high-risk industries such as petroleum, chemical engineering, and mining.
| DC24V | |||
| Motor Model | 110ST-□02030-EX-24V | 110ST-□04030-EX-24V | 110ST-□06020-EX-24V |
| Rated Power(W) | 0.6 | 1.2 | 1.2 |
| Rated Currently(A) | 31.3 | 62.5 | 62.5 |
| Rated speed(rpm) | 3000 | 3000 | 2000 |
| MAX Speed(rpm) | 3600 | 3600 | 2400 |
| Rated torque(Nm) | 2 | 4 | 6 |
| MAX Torque(Nm) | 6 | 12 | 18 |
| Rotor inertia(Kg.cm²) | 3.1 | 5.4 | 7.6 |
| MTC（ms） | 12.8 | 16.0 | 19.2 |
| DC48V | |||
| Motor Model | 110ST-□02030-EX-48V | 110ST-□04030-EX-48V | 110ST-□06030-EX-48V |
| Rated Power(W) | 0.6 | 1.2 | 1.8 |
| Rated Currently(A) | 14.7 | 29.4 | 44.1 |
| Rated speed(rpm) | 3000 | 3000 | 3000 |
| MAX Speed(rpm) | 3600 | 3600 | 3600 |
| Rated torque(Nm) | 2 | 4 | 6 |
| MAX Torque(Nm) | 6 | 12 | 18 |
| Rotor inertia(Kg.cm²) | 3.1 | 5.4 | 7.6 |
| MTC（ms） | 11.2 | 16.8 | 20.2 |
| DC72V | |||
| Motor Model | 110ST-□02030-EX-72V | 110ST-□04030-EX-72V | 110ST-□06030-EX-72V |
| Rated Power(W) | 0.6 | 1.2 | 1.8 |
| Rated Currently(A) | 9.8 | 19.6 | 29.4 |
| Rated speed(rpm) | 3000 | 3000 | 2000 |
| MAX Speed(rpm) | 3600 | 3600 | 2400 |
| Rated torque(Nm) | 2 | 4 | 6 |
| MAX Torque(Nm) | 6 | 12 | 18 |
| Rotor inertia(Kg.cm²) | 3.1 | 5.4 | 7.6 |
| MTC（ms） | 9.6 | 12.0 | 14.4 |
| AC220V | |||
| Motor Model | 110ST-□02030-EX | 110ST-□04030-EX | 110ST-□06030-EX |
| Rated Power(W) | 0.6 | 1.2 | 1.8 |
| Rated Currently(A) | 2.4 | 4.8 | 7.3 |
| Rated speed(rpm) | 3000 | 3000 | 2000 |
| MAX Speed(rpm) | 3600 | 3600 | 2400 |
| Rated torque(Nm) | 2 | 4 | 6 |
| MAX Torque(Nm) | 6 | 12 | 18 |
| Rotor inertia(Kg.cm²) | 3.1 | 5.4 | 7.6 |
| MTC（ms） | 8 | 10 | 12 |
Application:

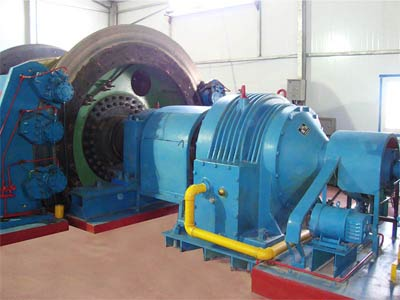

Explosion-proof servo motors for coal mines are mainly used in flammable and explosive environments such as coal mines to provide precise motion control and driving force, while ensuring the safe operation of equipment in hazardous environments. The following are some of the main application scenarios for explosion-proof servo motors in coal mines: Hoisting equipment control: In coal mine hoisting equipment, such as hoists and bucket wheel hoists, explosion-proof servo motors can provide highly precise speed and position control, ensuring the safe and efficient operation of the hoisting equipment.
How to choose a suitable explosion-proof servo motor?
1、Clarify your needs: First, clarify your specific needs. Determine the required technical specifications such as power, speed, torque, and accuracy, as well as the specific hazardous environment in which the motor will be used. Different applications may have different requirements for explosion-proof servo motors.
Environments containing hazardous gases can be classified into Zone 0, Zone 1, and Zone 2; environments containing explosive dust can be classified into Zone 20, Zone 21, and Zone 22.
2、Performance and price balance: Once you have clearly defined your needs, compare different brands and models of explosion-proof servo motors, weighing their performance against their price. Find a balance between performance and price to ensure that the product you purchase meets your actual needs.
3、Brand reputation, certifications and compliance：Choose brands with a good reputation and positive word-of-mouth. Well-known brands typically prioritize product quality and after-sales service, offering more reliable products and support.
Ensure that the purchased explosion-proof servo motors comply with relevant international and domestic certification standards, such as the EU's ATEX certification and the international IECEx certification.
Please contact our sales team for details regarding model naming.
info@start-motors-tech.com (Mr.Louis)
