EP-BLDC130series
start-motors
012
| Quantity: | |
|---|---|
The application of BLDC explosion-proof motors:

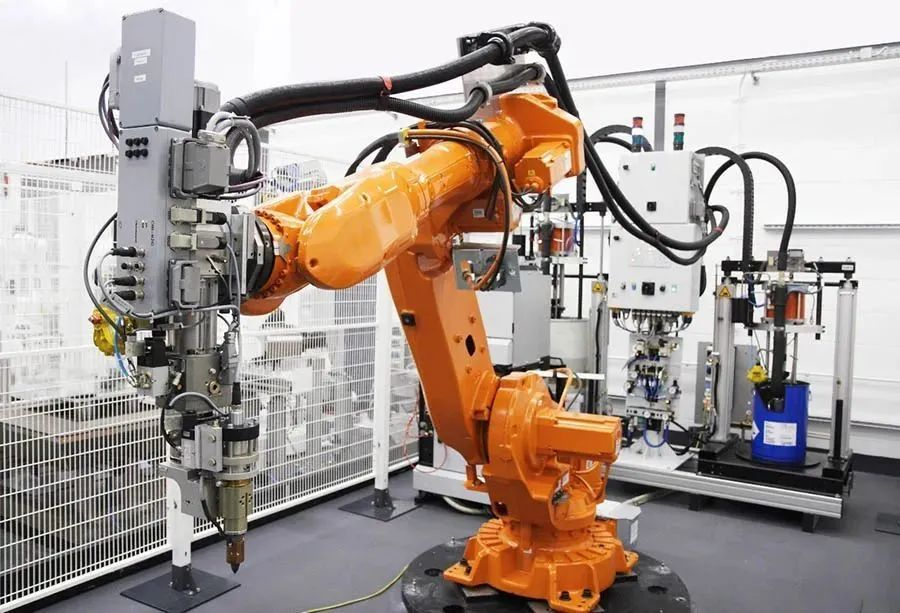

At present, with the large-scale development of brushless explosion-proof motors and the gradual maturity of their technologies, the application range of their drive systems in industrial production has also expanded, gradually becoming the mainstream of the development of industrial electric motors. Research and attempts aimed at reducing production costs and improving operational efficiency have achieved remarkable results. The reliable safety ensures that major manufacturers also provide different types of motors to meet the needs of different drive systems. Currently, in industrial production such as textiles, metallurgy, printing, automated production lines, and CNC machines, explosion-proof brushless DC motors are widely used.
| DC24V | |||||
| Motor Model | 130ST-□04030-24V-EX | 130ST-□06030-24V-EX | 130ST-□07725-24V-EX | 130ST-□10025-24V-EX | |
| Rated Power(W) | 1.2 | 1.8 | 2 | 2.5 | |
| Rated Currently(A) | 62.5 | 93.8 | 104.2 | 130.2 | |
| Rated speed(rpm) | 3000 | 3000 | 2500 | 2500 | |
| MAX Speed(rpm) | 3600 | 3600 | 3000 | 3000 | |
| Rated torque(Nm) | 4 | 6 | 7.7 | 10 | |
| MAX Torque(Nm) | 12 | 18 | 23.1 | 30 | |
| Rotor inertia(Kg.cm²) | 8.5 | 12.6 | 15.3 | 21.4 | |
| MTC（ms） | 22 | 24 | 26 | 29 | |
| DC48V | |||||
| Motor Model | 130ST-□04030-48V-EX | 130ST-□06030-48V-EX | 130ST-□07730-48V-EX | 130ST-□10030-48V-EX | |
| Rated Power(W) | 1.2 | 1.8 | 2.4 | 3 | |
| Rated Currently(A) | 29.4 | 44.1 | 58.8 | 73.5 | |
| Rated speed(rpm) | 3000 | 3000 | 3000 | 3000 | |
| MAX Speed(rpm) | 3600 | 3600 | 3600 | 3600 | |
| Rated torque(Nm) | 4 | 6 | 7.7 | 10 | |
| MAX Torque(Nm) | 12 | 18 | 23.1 | 30 | |
| Rotor inertia(Kg.cm²) | 8.5 | 12.6 | 15.3 | 21.4 | |
| MTC（ms） | 20 | 21 | 22 | 25 | |
| DC72V | |||||
| Motor Model | 130ST-□04030-72V-EX | 130ST-□06030-72V-EX | 130ST-□07730-72V-EX | 130ST-□10030-72V-EX | |
| Rated Power(W) | 1.2 | 1.8 | 2.4 | 3 | |
| Rated Currently(A) | 19.6 | 29.4 | 39.2 | 49.0 | |
| Rated speed(rpm) | 3000 | 3000 | 3000 | 3000 | |
| MAX Speed(rpm) | 3600 | 3600 | 3600 | 3600 | |
| Rated torque(Nm) | 4 | 6 | 7.7 | 10 | |
| MAX Torque(Nm) | 12 | 18 | 23.1 | 30 | |
| Rotor inertia(Kg.cm²) | 8.5 | 12.6 | 15.3 | 21.4 | |
| MTC（ms） | 17 | 18 | 19 | 22 | |
| AC220V | |||||
| Motor Model | 130ST-□04030-EX | 130ST-□06030-EX | 130ST-□07730-EX | 130ST-□10030-EX | 130ST-□15030-EX |
| Rated Power(W) | 1.2 | 1.8 | 2.4 | 3 | 4.5 |
| Rated Currently(A) | 4.8 | 7.3 | 9.7 | 12.1 | 18.1 |
| Rated speed(rpm) | 3000 | 3000 | 3000 | 3000 | 3000 |
| MAX Speed(rpm) | 3600 | 3600 | 3600 | 3600 | 3600 |
| Rated torque(Nm) | 4 | 6 | 7.7 | 10 | 15 |
| MAX Torque(Nm) | 12 | 18 | 23.1 | 30 | 45 |
| Rotor inertia(Kg.cm²) | 8.5 | 12.6 | 15.3 | 21.4 | 27.7 |
| MTC（ms） | 14 | 15 | 16 | 18 | 21 |
