ST140XFW975
start-motors
074
| Quantity: | |
|---|---|

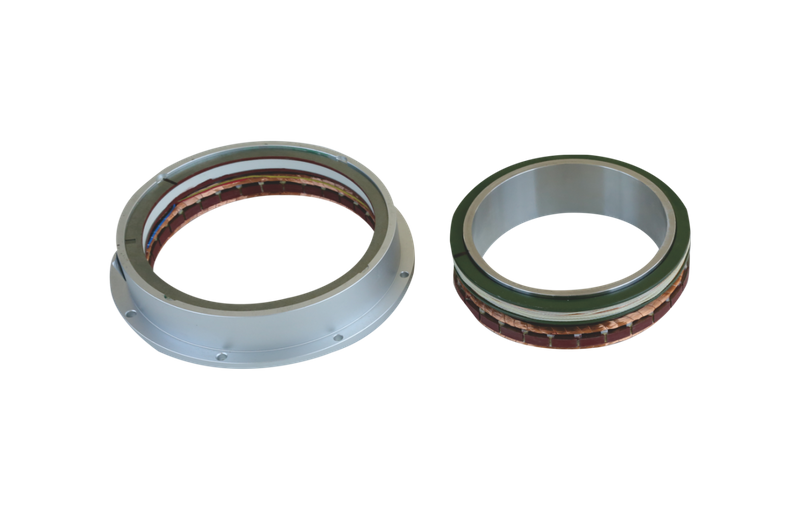

The Resolver is an angle displacement sensor used to control the rotation of the motor. It can convert the measured rotational angle into an analog signal. By processing the output analog signal with a microcontroller, high-precision control can be achieved for DC brushless motors and stepper motors equipped with the rotary transformer. The rotary transformer is suitable for applications where the rotation angle of the motor and precise determination of the speed must be detected.
Application areas of resolvers
Rotating machinery systems: Resolvers are commonly used in mechanical systems that require continuous rotation, such as rotary tables, rotating platforms, and wind turbine machinery systems. In these applications, resolvers transmit control signals, electrical signals, or data signals without being limited by rotational motion.
Radar Systems: Radar antennas typically need to rotate continuously to detect targets in different directions. Resolvers are used to transmit electrical energy and control signals during radar rotation, ensuring the radar system can operate continuously.
Medical Imaging Equipment: In some medical imaging equipment that requires rotation, such as CT scanners, resolvers can transmit electrical energy and data signals, allowing the equipment to perform rotating scans without stopping.
How to choose the right resolver for your application
Positioning accuracy; （Positioning accuracy depends only on application requirements）
Speed stability;
Audible noise;
Power loss;
Bandwidth, which determines the driver's command signal response.
Please contact our sales team for details regarding model naming.
info@start-motors-tech.com (Mr.Louis)
