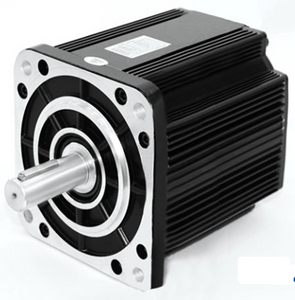

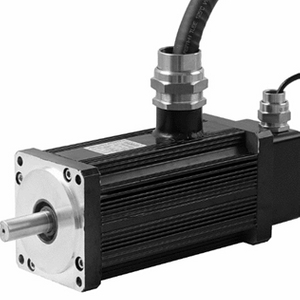

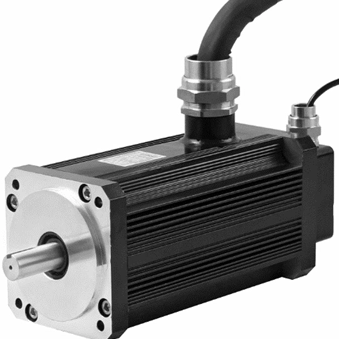

EP-BLDC130series
start-motors
012
| Quantity: | |
|---|---|
| DC24V | |||||
| Motor Model | 130ST-□04030-24V-EX | 130ST-□06030-24V-EX | 130ST-□07725-24V-EX | 130ST-□10025-24V-EX | |
| Rated Power(W) | 1.2 | 1.8 | 2 | 2.5 | |
| Rated Currently(A) | 62.5 | 93.8 | 104.2 | 130.2 | |
| Rated speed(rpm) | 3000 | 3000 | 2500 | 2500 | |
| MAX Speed(rpm) | 3600 | 3600 | 3000 | 3000 | |
| Rated torque(Nm) | 4 | 6 | 7.7 | 10 | |
| MAX Torque(Nm) | 12 | 18 | 23.1 | 30 | |
| Rotor inertia(Kg.cm²) | 8.5 | 12.6 | 15.3 | 21.4 | |
| MTC（ms） | 22 | 24 | 26 | 29 | |
| DC48V | |||||
| Motor Model | 130ST-□04030-48V-EX | 130ST-□06030-48V-EX | 130ST-□07730-48V-EX | 130ST-□10030-48V-EX | |
| Rated Power(W) | 1.2 | 1.8 | 2.4 | 3 | |
| Rated Currently(A) | 29.4 | 44.1 | 58.8 | 73.5 | |
| Rated speed(rpm) | 3000 | 3000 | 3000 | 3000 | |
| MAX Speed(rpm) | 3600 | 3600 | 3600 | 3600 | |
| Rated torque(Nm) | 4 | 6 | 7.7 | 10 | |
| MAX Torque(Nm) | 12 | 18 | 23.1 | 30 | |
| Rotor inertia(Kg.cm²) | 8.5 | 12.6 | 15.3 | 21.4 | |
| MTC（ms） | 20 | 21 | 22 | 25 | |
| DC72V | |||||
| Motor Model | 130ST-□04030-72V-EX | 130ST-□06030-72V-EX | 130ST-□07730-72V-EX | 130ST-□10030-72V-EX | |
| Rated Power(W) | 1.2 | 1.8 | 2.4 | 3 | |
| Rated Currently(A) | 19.6 | 29.4 | 39.2 | 49.0 | |
| Rated speed(rpm) | 3000 | 3000 | 3000 | 3000 | |
| MAX Speed(rpm) | 3600 | 3600 | 3600 | 3600 | |
| Rated torque(Nm) | 4 | 6 | 7.7 | 10 | |
| MAX Torque(Nm) | 12 | 18 | 23.1 | 30 | |
| Rotor inertia(Kg.cm²) | 8.5 | 12.6 | 15.3 | 21.4 | |
| MTC（ms） | 17 | 18 | 19 | 22 | |
| AC220V | |||||
| Motor Model | 130ST-□04030-EX | 130ST-□06030-EX | 130ST-□07730-EX | 130ST-□10030-EX | 130ST-□15030-EX |
| Rated Power(W) | 1.2 | 1.8 | 2.4 | 3 | 4.5 |
| Rated Currently(A) | 4.8 | 7.3 | 9.7 | 12.1 | 18.1 |
| Rated speed(rpm) | 3000 | 3000 | 3000 | 3000 | 3000 |
| MAX Speed(rpm) | 3600 | 3600 | 3600 | 3600 | 3600 |
| Rated torque(Nm) | 4 | 6 | 7.7 | 10 | 15 |
| MAX Torque(Nm) | 12 | 18 | 23.1 | 30 | 45 |
| Rotor inertia(Kg.cm²) | 8.5 | 12.6 | 15.3 | 21.4 | 27.7 |
| MTC（ms） | 14 | 15 | 16 | 18 | 21 |
| DC24V | |||||
| Motor Model | 130ST-□04030-24V-EX | 130ST-□06030-24V-EX | 130ST-□07725-24V-EX | 130ST-□10025-24V-EX | |
| Rated Power(W) | 1.2 | 1.8 | 2 | 2.5 | |
| Rated Currently(A) | 62.5 | 93.8 | 104.2 | 130.2 | |
| Rated speed(rpm) | 3000 | 3000 | 2500 | 2500 | |
| MAX Speed(rpm) | 3600 | 3600 | 3000 | 3000 | |
| Rated torque(Nm) | 4 | 6 | 7.7 | 10 | |
| MAX Torque(Nm) | 12 | 18 | 23.1 | 30 | |
| Rotor inertia(Kg.cm²) | 8.5 | 12.6 | 15.3 | 21.4 | |
| MTC（ms） | 22 | 24 | 26 | 29 | |
| DC48V | |||||
| Motor Model | 130ST-□04030-48V-EX | 130ST-□06030-48V-EX | 130ST-□07730-48V-EX | 130ST-□10030-48V-EX | |
| Rated Power(W) | 1.2 | 1.8 | 2.4 | 3 | |
| Rated Currently(A) | 29.4 | 44.1 | 58.8 | 73.5 | |
| Rated speed(rpm) | 3000 | 3000 | 3000 | 3000 | |
| MAX Speed(rpm) | 3600 | 3600 | 3600 | 3600 | |
| Rated torque(Nm) | 4 | 6 | 7.7 | 10 | |
| MAX Torque(Nm) | 12 | 18 | 23.1 | 30 | |
| Rotor inertia(Kg.cm²) | 8.5 | 12.6 | 15.3 | 21.4 | |
| MTC（ms） | 20 | 21 | 22 | 25 | |
| DC72V | |||||
| Motor Model | 130ST-□04030-72V-EX | 130ST-□06030-72V-EX | 130ST-□07730-72V-EX | 130ST-□10030-72V-EX | |
| Rated Power(W) | 1.2 | 1.8 | 2.4 | 3 | |
| Rated Currently(A) | 19.6 | 29.4 | 39.2 | 49.0 | |
| Rated speed(rpm) | 3000 | 3000 | 3000 | 3000 | |
| MAX Speed(rpm) | 3600 | 3600 | 3600 | 3600 | |
| Rated torque(Nm) | 4 | 6 | 7.7 | 10 | |
| MAX Torque(Nm) | 12 | 18 | 23.1 | 30 | |
| Rotor inertia(Kg.cm²) | 8.5 | 12.6 | 15.3 | 21.4 | |
| MTC（ms） | 17 | 18 | 19 | 22 | |
| AC220V | |||||
| Motor Model | 130ST-□04030-EX | 130ST-□06030-EX | 130ST-□07730-EX | 130ST-□10030-EX | 130ST-□15030-EX |
| Rated Power(W) | 1.2 | 1.8 | 2.4 | 3 | 4.5 |
| Rated Currently(A) | 4.8 | 7.3 | 9.7 | 12.1 | 18.1 |
| Rated speed(rpm) | 3000 | 3000 | 3000 | 3000 | 3000 |
| MAX Speed(rpm) | 3600 | 3600 | 3600 | 3600 | 3600 |
| Rated torque(Nm) | 4 | 6 | 7.7 | 10 | 15 |
| MAX Torque(Nm) | 12 | 18 | 23.1 | 30 | 45 |
| Rotor inertia(Kg.cm²) | 8.5 | 12.6 | 15.3 | 21.4 | 27.7 |
| MTC（ms） | 14 | 15 | 16 | 18 | 21 |
