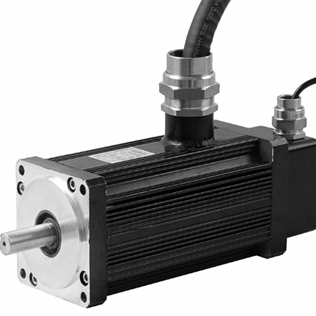

EP-BLDC110series
start-motors
011
| Quantity: | |
|---|---|
| DC24V | |||
| Motor Model | 110ST-□02030-EX-24V | 110ST-□04030-EX-24V | 110ST-□06020-EX-24V |
| Rated Power(W) | 0.6 | 1.2 | 1.2 |
| Rated Currently(A) | 31.3 | 62.5 | 62.5 |
| Rated speed(rpm) | 3000 | 3000 | 2000 |
| MAX Speed(rpm) | 3600 | 3600 | 2400 |
| Rated torque(Nm) | 2 | 4 | 6 |
| MAX Torque(Nm) | 6 | 12 | 18 |
| Rotor inertia(Kg.cm²) | 3.1 | 5.4 | 7.6 |
| MTC（ms） | 12.8 | 16.0 | 19.2 |
| DC48V | |||
| Motor Model | 110ST-□02030-EX-48V | 110ST-□04030-EX-48V | 110ST-□06030-EX-48V |
| Rated Power(W) | 0.6 | 1.2 | 1.8 |
| Rated Currently(A) | 14.7 | 29.4 | 44.1 |
| Rated speed(rpm) | 3000 | 3000 | 3000 |
| MAX Speed(rpm) | 3600 | 3600 | 3600 |
| Rated torque(Nm) | 2 | 4 | 6 |
| MAX Torque(Nm) | 6 | 12 | 18 |
| Rotor inertia(Kg.cm²) | 3.1 | 5.4 | 7.6 |
| MTC（ms） | 11.2 | 16.8 | 20.2 |
| DC72V | |||
| Motor Model | 110ST-□02030-EX-72V | 110ST-□04030-EX-72V | 110ST-□06030-EX-72V |
| Rated Power(W) | 0.6 | 1.2 | 1.8 |
| Rated Currently(A) | 9.8 | 19.6 | 29.4 |
| Rated speed(rpm) | 3000 | 3000 | 2000 |
| MAX Speed(rpm) | 3600 | 3600 | 2400 |
| Rated torque(Nm) | 2 | 4 | 6 |
| MAX Torque(Nm) | 6 | 12 | 18 |
| Rotor inertia(Kg.cm²) | 3.1 | 5.4 | 7.6 |
| MTC（ms） | 9.6 | 12.0 | 14.4 |
| AC220V | |||
| Motor Model | 110ST-□02030-EX | 110ST-□04030-EX | 110ST-□06030-EX |
| Rated Power(W) | 0.6 | 1.2 | 1.8 |
| Rated Currently(A) | 2.4 | 4.8 | 7.3 |
| Rated speed(rpm) | 3000 | 3000 | 2000 |
| MAX Speed(rpm) | 3600 | 3600 | 2400 |
| Rated torque(Nm) | 2 | 4 | 6 |
| MAX Torque(Nm) | 6 | 12 | 18 |
| Rotor inertia(Kg.cm²) | 3.1 | 5.4 | 7.6 |
| MTC（ms） | 8 | 10 | 12 |
