ST200XFS6411M01 / ST320XF6411M01
start-motors
079
| Quantity: | |
|---|---|

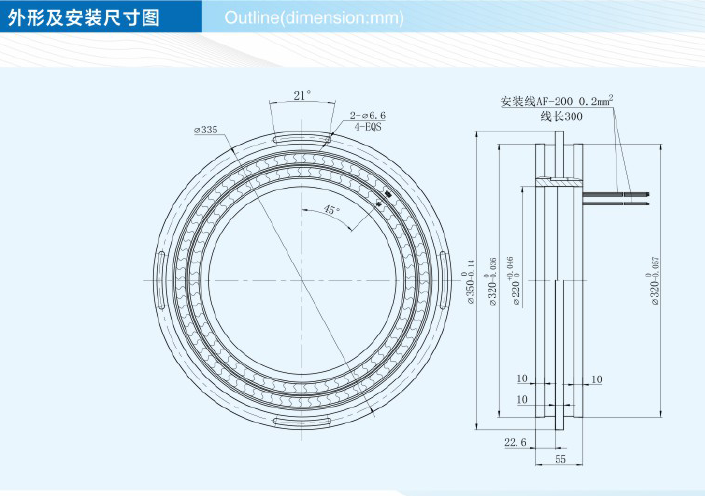

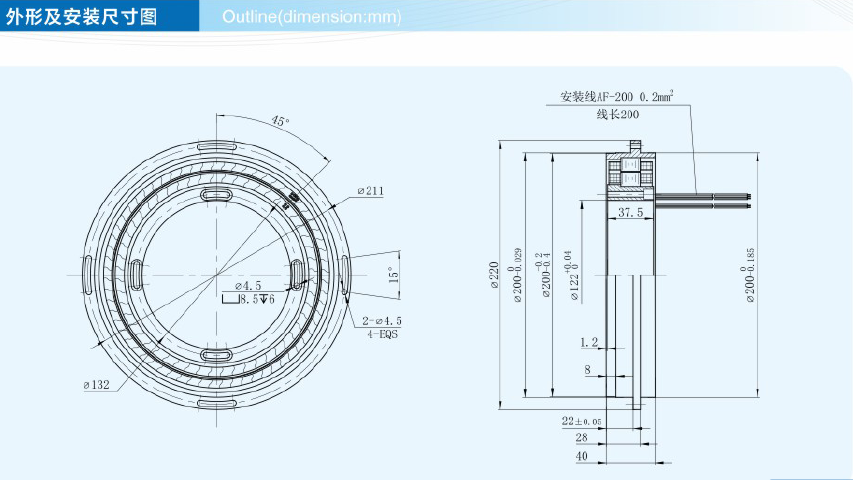

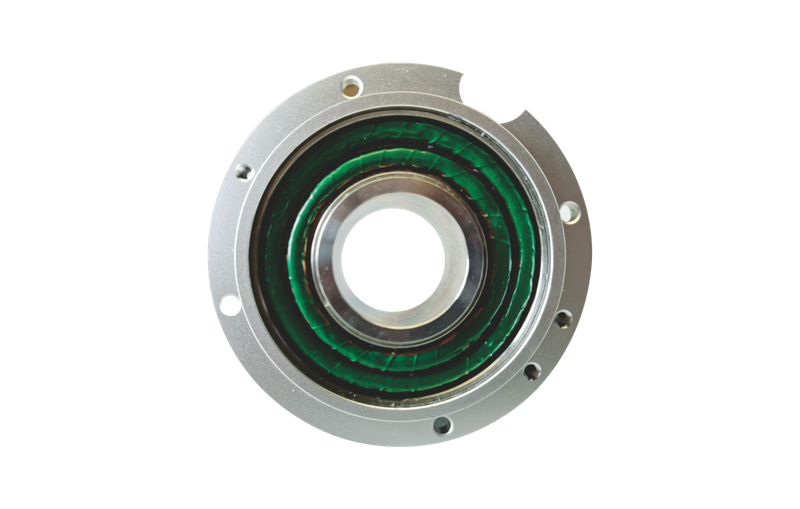

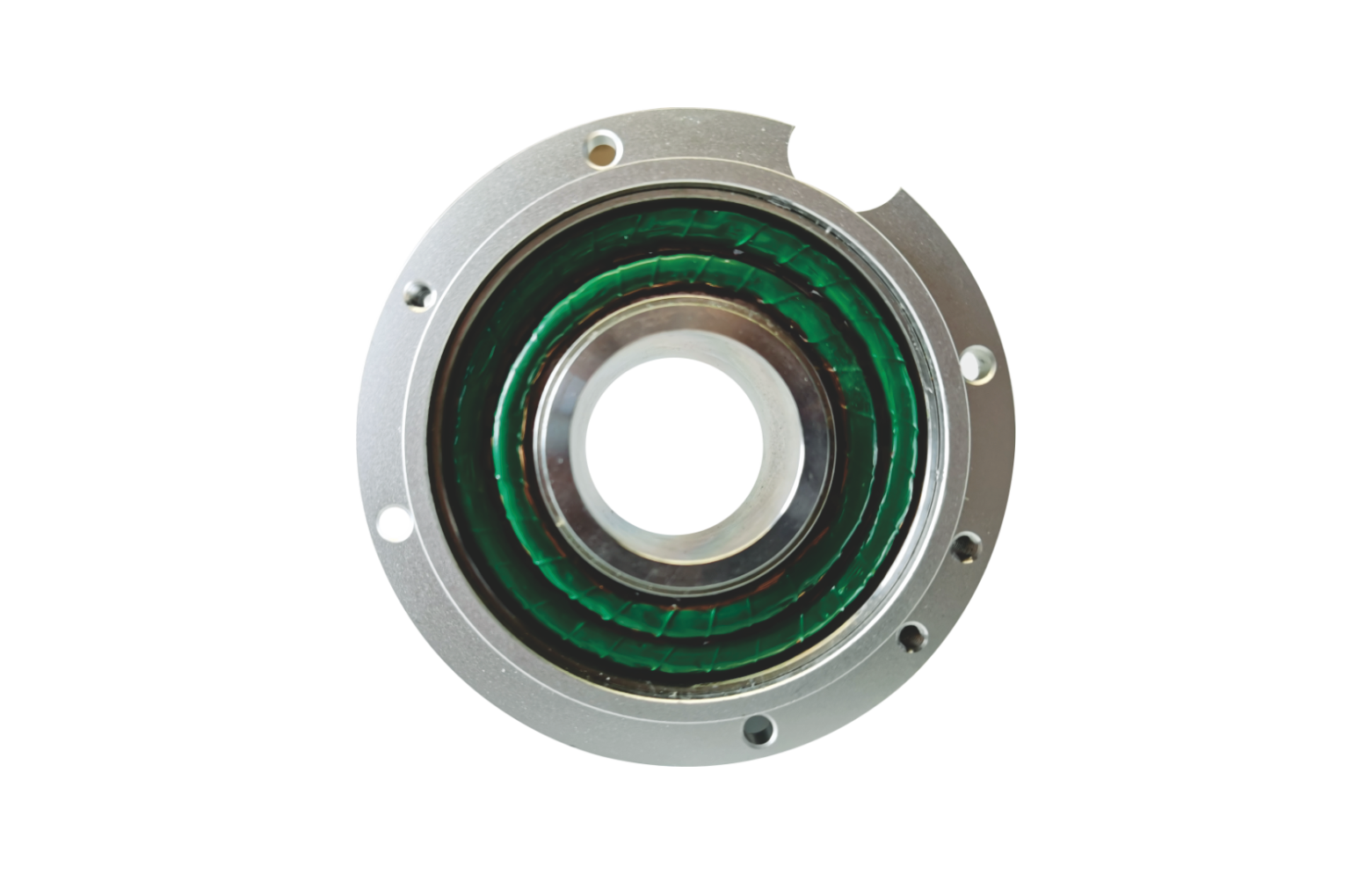

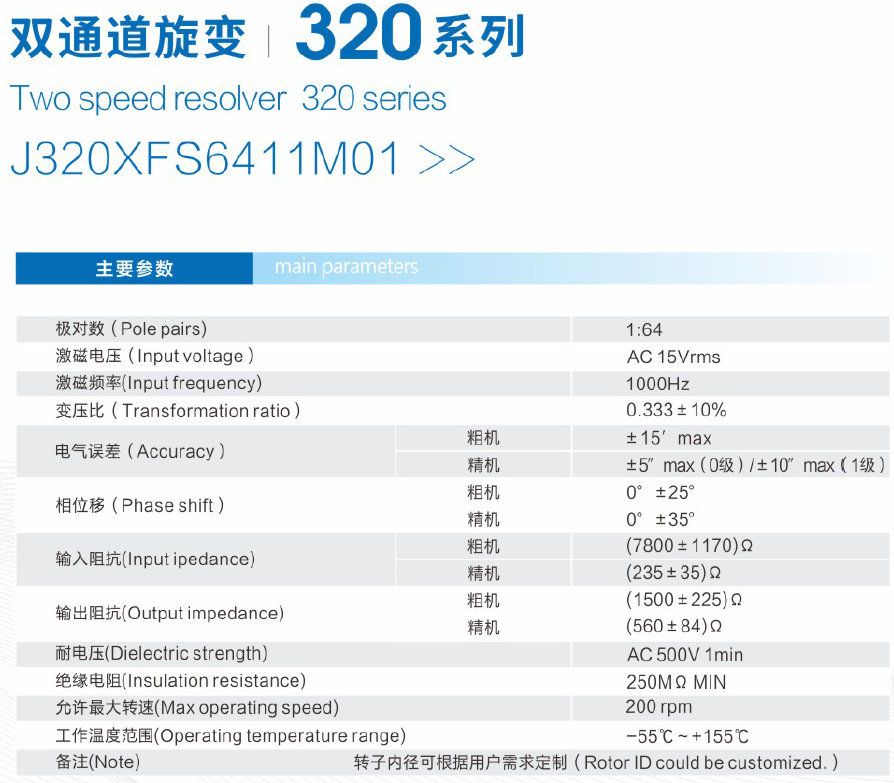

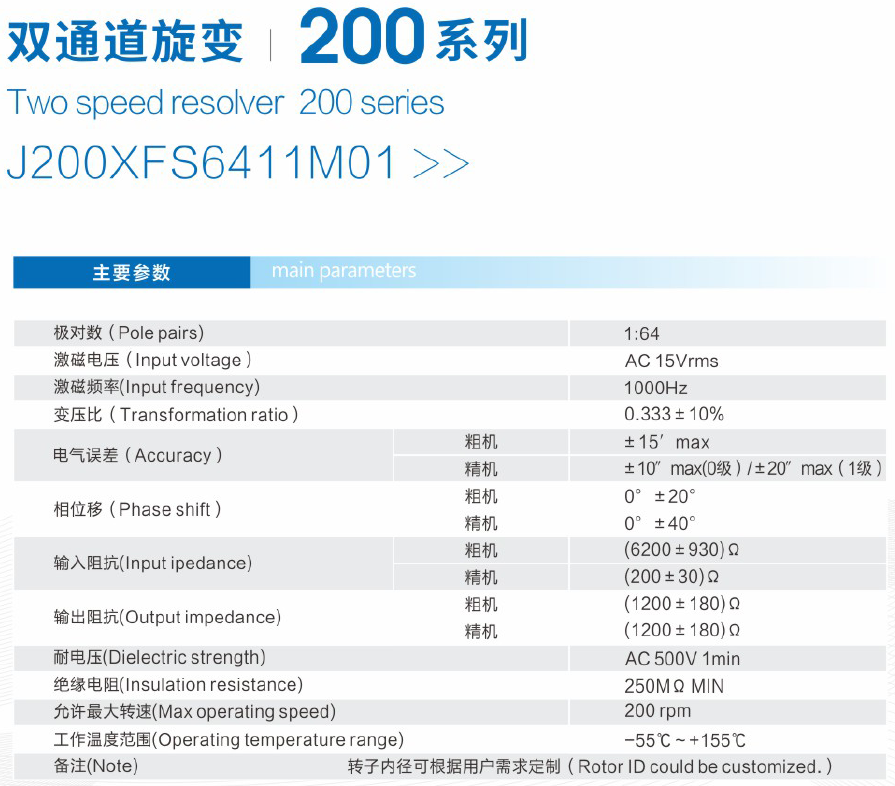

The working principle of brushless resolver is similar to that of ordinary transformer. It is an angle sensing element that gene Rates induced electromotive force through electromagnetic coupling of stator and rotor windings to make the induced voltage of output winding change sine or cosine with roto rangle change.It is widely used in militay，aerospace,industrial,servo fields.
The product has the following characteristics:
1、High precision absolute detection to meet the requirements of high speed applications.
2、Compact structure, convenient installation and use.
3、High reliability, long life, suitable for harsh environment, maintenance-free, especially for harsh working conditions;
4、High cost performance
The application scope of this product：

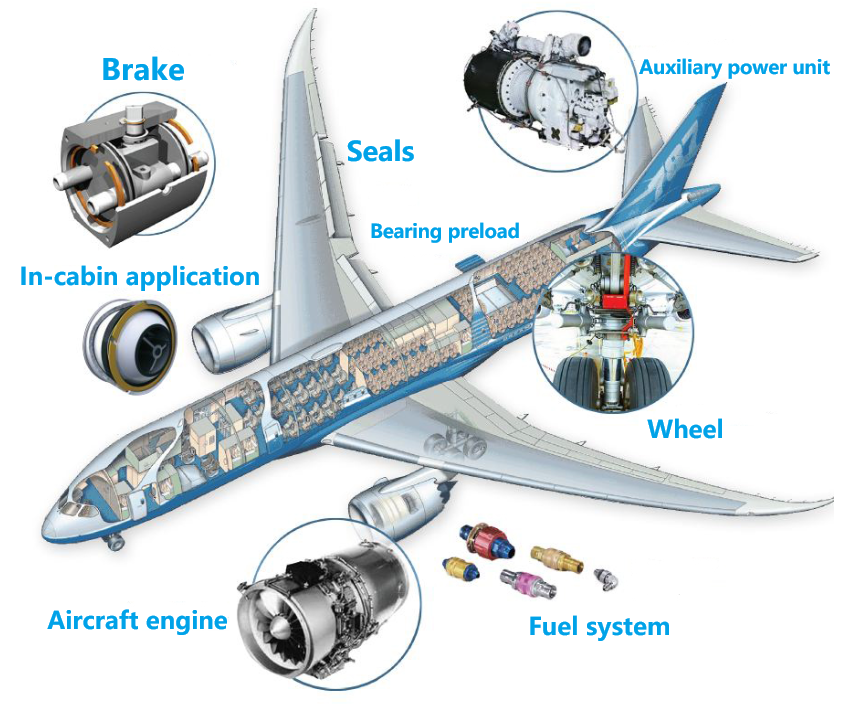

1、Aerospace and Military Fields: Due to its high reliability and precision, the rotary transformer is widely used in angle and position detection systems in the aerospace and military fields.
2、In the automotive sector: In electric vehicles, resolvers are used as position and speed sensors, providing crucial information for motor control. Furthermore, resolvers also play a vital role in hybrid vehicles, detecting the motor's rotational speed.
3、Transportation sector: In fields such as railway transportation, agricultural and construction equipment, buses and heavy trucks, golf carts and low-speed electric vehicles, rotary transformers have also been widely used.
4、Robot system: Provides precise angle feedback for the robot's joints, ensuring the motion accuracy of the robot.
FAQ
Q1：What is a resolver and where are it used?
A resolver is a brushless angle feedback system based on the principle of electromagnetic induction, producing an absolute analog signal. It is primarily used to control the speed of servo motors. Compared to rotary encoders, resolvers have a wider range of applications (e.g., robotics, automotive, transportation, aerospace, and military). Depending on the design, the operating temperature range can be -55°C to 155°C. Resolvers are unaffected by radioactivity and can be used in absolute vacuum (space). Maximum speeds can reach 90,000 rpm.
Q2：Why did the resolver control unit report an error during the first test?
Are the frequency, input voltage, turns ratio, and current loss of the resolver consistent with the values set by the control unit。Stranded cable (input voltage, Sin, Cos)
Is there any electromagnetic interference (from motor brakes, excessively long cables)
Q3：Why can resolver products in the same series have different specifications?
Because servo controllers commonly found on the market come in different frequencies and voltages. The data on resistance and phase shift in the three tables correspond to various resistances, impedance strengths, and phase shifts under two to three different input frequencies and feedback voltages. We provide you with the necessary information to help you select the correct analog-to-digital converter or appropriate control components.
Q4：How to install and secure the stator and rotor of a rotary transformer?
The stator is mounted to the bearing housing of the motor. It is secured using clamps or snap rings.
The rotor is typically glued to the rotating shaft. For some special shapes or security applications, the rotor can be secured to the shaft using axial screws. For larger shaft diameters, the rotor is secured with radial clamping screws (e.g., set screws).
Q5：What is the accuracy of the resolver?
Standard resolvers have an absolute measurement accuracy of ±10'. In most cases, this accuracy is sufficient for speed control units with typical systems. For applications requiring higher precision positioning, we also offer resolvers with absolute measurement accuracies of ±6' and ±4'.
Please contact our sales team for details regarding model naming.
