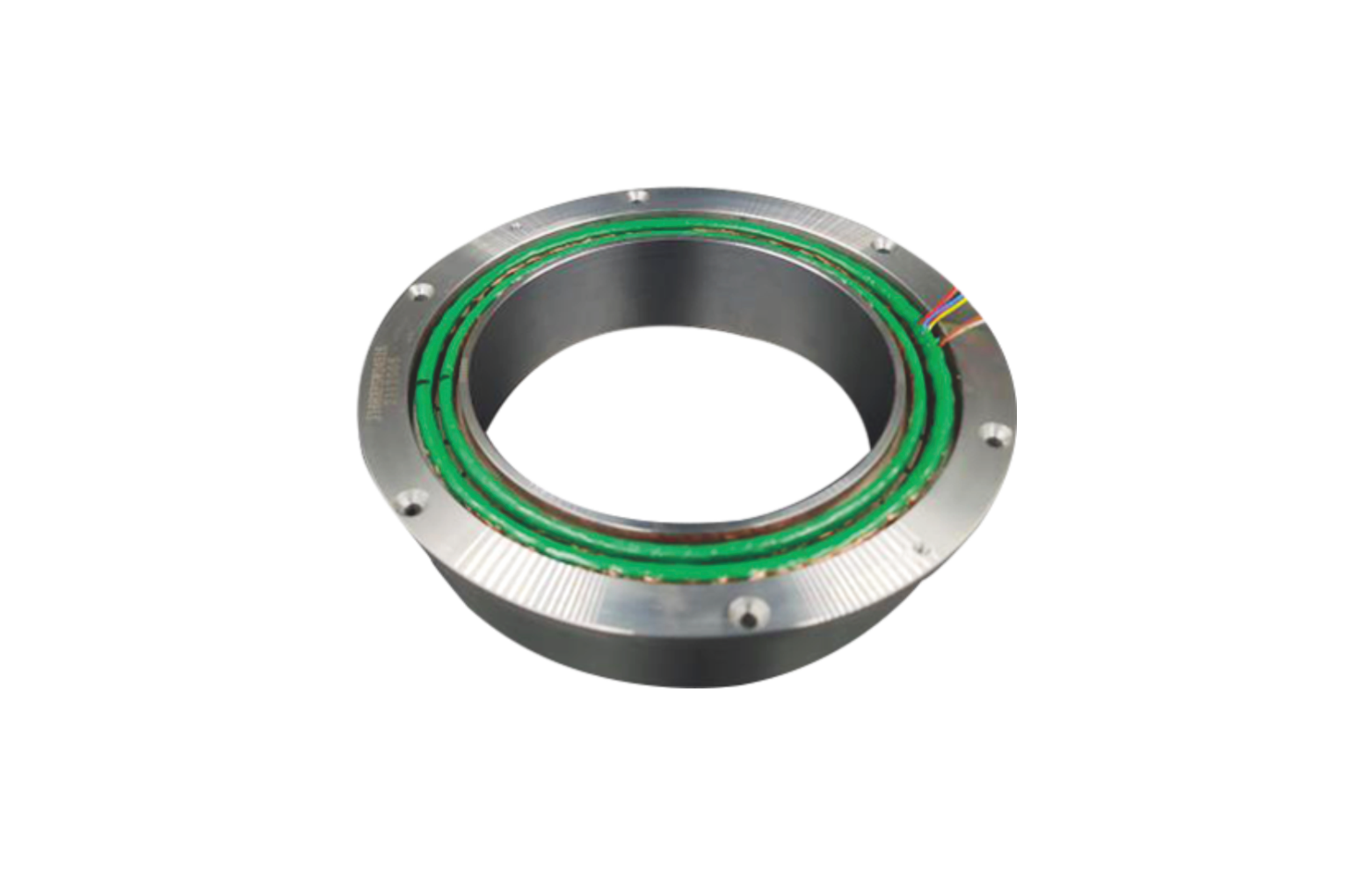

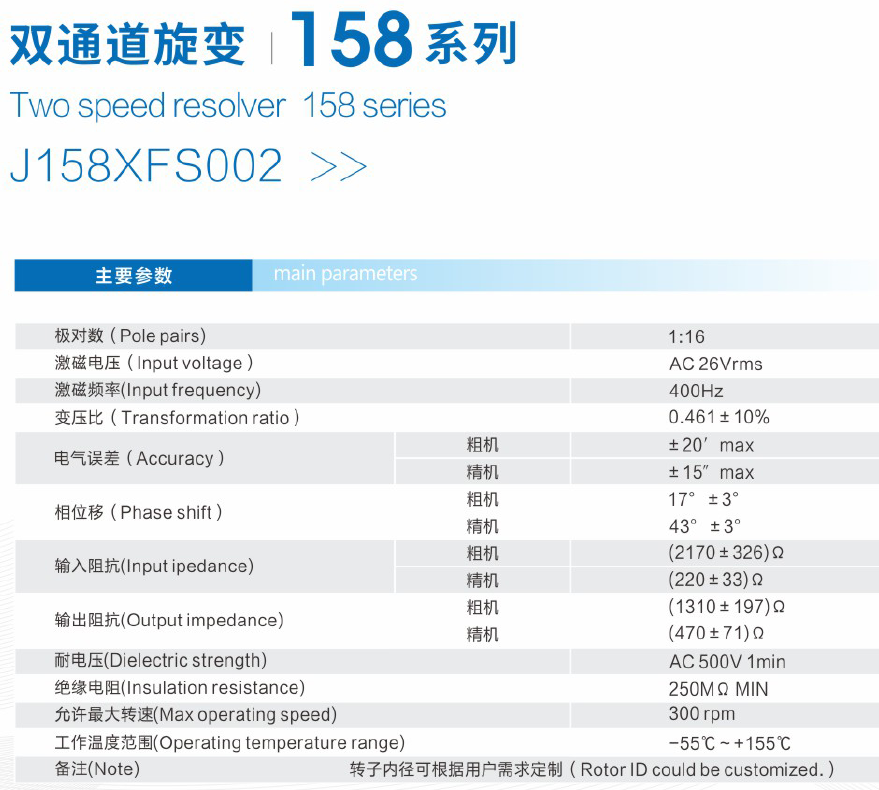

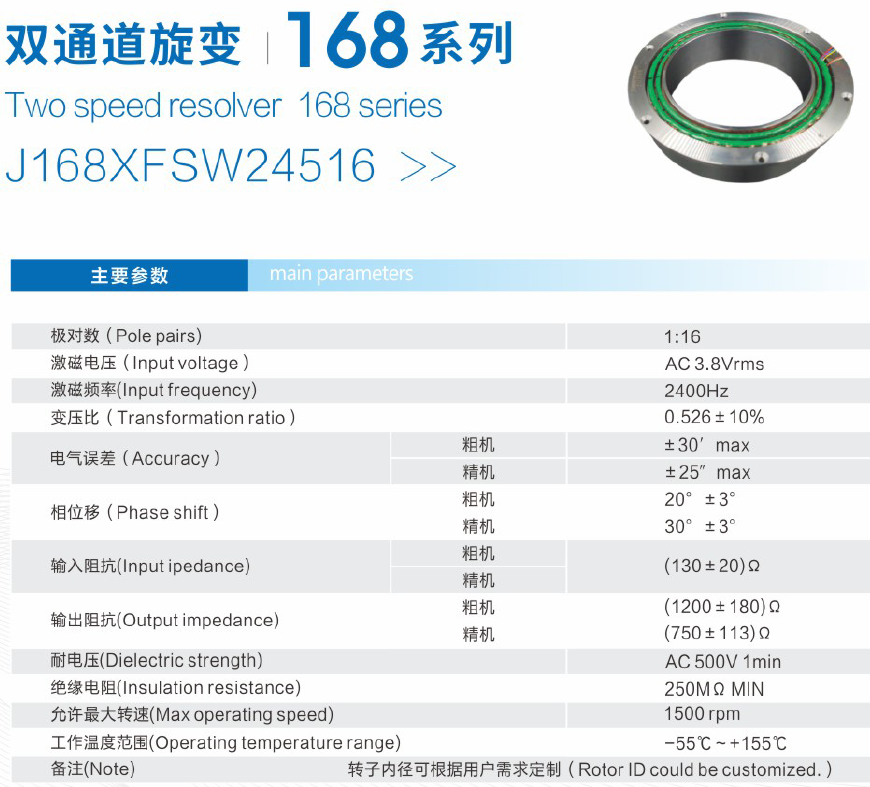

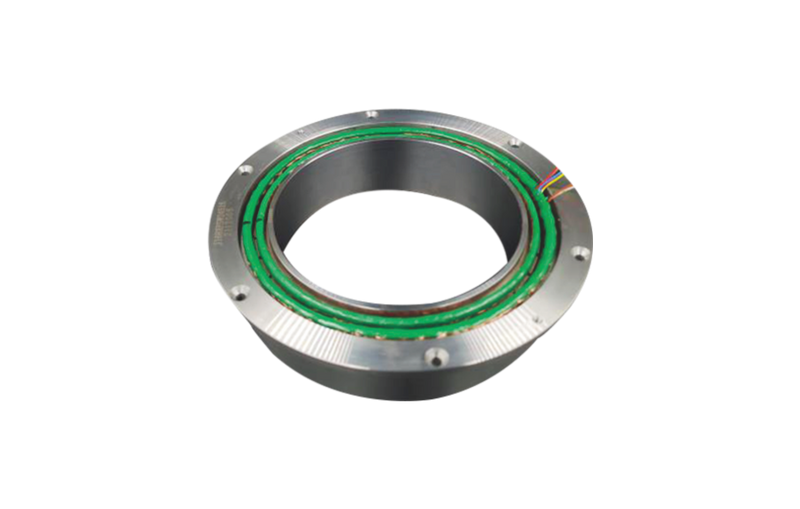

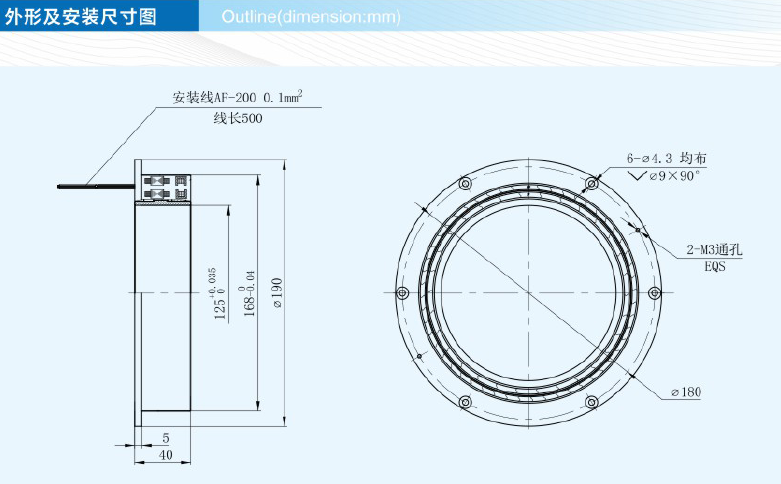

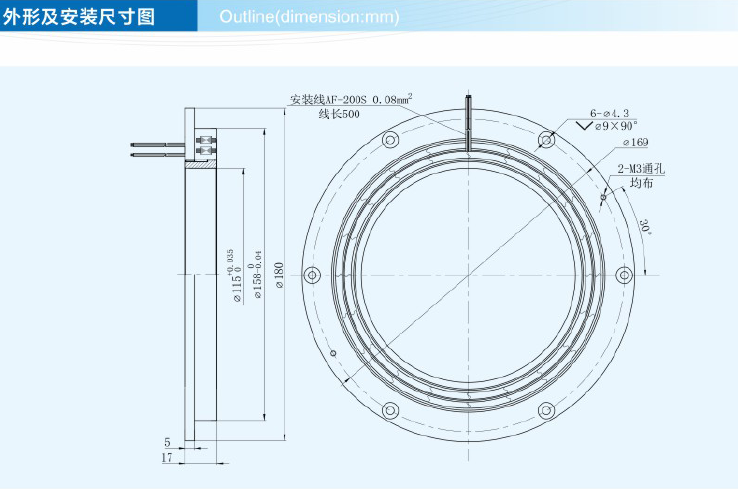

Highly Resistant To Interference Two Speed 158 And 168 Series Applied in Military Servo

Installation:

*

For the fit condition of brush less resolver， it is recommended to adopt (transition fit):H7/h6 and h6/H7;

*

The deviation between the motor shaft and the center of resolver rotor and stator shaft is generally

required to be ≤0.03mm;

*

The verticality of the mating end face between the motor end cover and the resolver stator, the

motor shaft and the resolver rotor is ≤ 0.05mm;

*

For the fabricated resolver (stator and rotor assembled together with bearings), in addition to

the above requirements, the motor shaft and resolver rotor can not be directly connected forcely,

but need to be connected through a special coupling.
