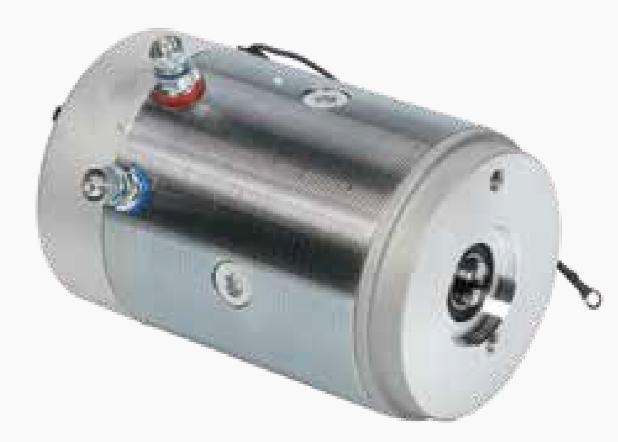

Medical Bed with Low-noise Hydraulic DC Motor ST114-V Series

Model:
ST114-V Series
Brand:
start-motors
Code:
0103

Availability:

Quantity:



Inquire Add to Basket

Product Description

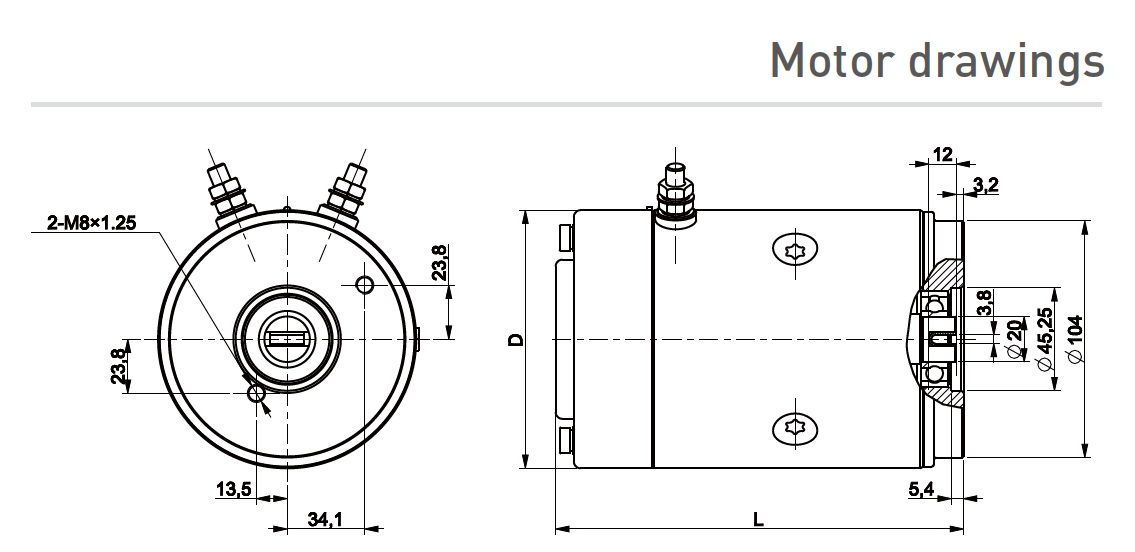

1751337251094

电机参数 Motor Data		电机型号 Motor Model
电机参数 Motor Data		ZD048	ZD064	ZD025	ZD010	ZD012	ZD096	ZD033	ZD021	ZD085	ZD086
额定功率 Nominal Power	kW	1.6	2	2.5	2	2	2.2	2.5	2.5	2.8	3
额定电压 Nominal Voltage	V	12	12	24	48	72	24	12	24	24	24
环境温度 Environmental Tempeature	°C	-20-40°C	-20-40°C	-20-40°C	-20-40°C	-20-40°C	-20-40°C	-20-40°C	-20-40°C	-20-40°C	-20-40°C
空载转速 No-load Speed	Rpm	4200	5800	6200	4800	5800	6200	6200	6200	8000	4200
空载电流 No-load Current	A	35	40	20	12	10	20	50	35	40	20
额定负载 Nominal Torque	N.m	6	8	10	7	7	10	10	10	9	11
额定转速 Nominal Speed	Rpm	2650	2600	2650	2850	3200	2250	2400	2950	3100	2850
额定电流 Nominal Current	A	185	265	135	70	50	135	280	170	170	170
工作制 Duty Cycle	S2	2Min	2Min	2Min	2Min	2Min	2Min	5Min	2Min	5Min	4Min
工作制 Duty Cycle	S3	8%ED	8%ED	8%ED	8%ED	8%ED	8%ED	13%ED	8%ED	13%ED	15%ED
电机转向 Motor Rotation	CW/CCW	CW	CW	CW	CW	CW	CW	CW	CW	CW	CW
电机噪音 Motor Noise	dBA/1m	72	72	72	72	72	72	72	72	72	82
电机尺寸 Motor Dimension	L(mm)	178.8	178.8	178.8	178.8	178.8	209.8	195.8	178.8	220.6	229
电机尺寸 Motor Dimension	D(mm)	114	114	114	114	114	114	114	114	114	127
电机重量 Motor Weight	Kg	6.9	6.9	6.9	6.9	6.9	9	8.4	6.9	9.4	12
电机设计 Motor Design
绝缘等级 Insulation Degree	Class	F	F	F	F	F	F	F	F	F	F
温控 Thermal Protection	Optional	√	√	√	√	√	√	√	√	√	√
防水等级 IP Class	Class	IP54	IP54	IP54	IP54	IP54	IP54	IP54	IP54	IP54	IP23
励磁方式 Excitation	Wound	复励 Compound	复励 Compound	复励 Compound	复励 Compound	复励 Compound	复励 Compound	串励 Series	复励 Compound	串励 Series	复励 Compound
振动 Vibration	mm/S	<2	<2	<2	<2	<2	<2	<2	<2	<2	<3.8
绝缘强度 Insulation Resistance	MΩ	>10	>10	>10	>10	>10	>10	>10	>10	>10	>10
电机寿命 Motor Endurance	Hrs	400	400	400	400	400	400	800	400	800	800
