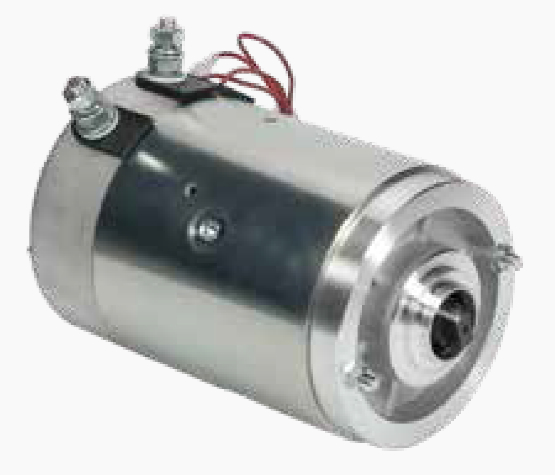

ST114-H Series
start-motors
0102
| Quantity: | |
|---|---|
Classification of Hydraulic DC Motors:
A: According to the structural form: there are several main types such as gear type, blade type and plunger type.
B: According to the speed and torque range: high-speed motors and low-speed motors.
1. The gear-type hydraulic motor has a simple structure and is inexpensive. It is often used in situations where high rotational speed, low torque, and low requirements for motion stability are needed. For example, it is used to drive grinding machines and fans.
2. The blade-type hydraulic motor has a small rotational inertia, is highly sensitive, has a low volumetric efficiency, soft mechanical characteristics, and is suitable for applications with medium or higher speeds, where the torque is not large and frequent starting and reversing are required.
3. The axial piston motor has high volumetric efficiency, a wide adjustment range, good low-speed stability, and poor shock resistance. It is commonly used in high-pressure systems with high requirements.
| 电机参数 Motor Data | 电机型号 Motor Model | |||||||||
| ZD053 | ZD036 | ZD034 | ZD033 | ZD054 | ZD035 | ZD085 | ZD010 | ZD132 | ||
| 额定功率 Nominal Power | kW | 1.2 | 1.6 | 2 | 2 | 1.2 | 2.2 | 2.8 | 2 | 3 |
| 额定电压 Nominal Voltage | V | 12 | 12 | 12 | 12 | 24 | 24 | 24 | 48 | 48 |
| 环境温度 Environmental Tempeature | °C | -20-40°C | -20-40°C | -20-40°C | -20-40°C | -20-40°C | -20-40°C | -20-40°C | -20-40°C | -20-40°C |
| 空载转速 No-load Speed | Rpm | 5500 | 6200 | 3800 | 6200 | 6000 | 5500 | 8200 | 4800 | 5200 |
| 空载电流 No-load Current | A | 35 | 45 | 40 | 50 | 20 | 20 | 25 | 15 | 20 |
| 额定负载 Nominal Torque | N.m | 4.7 | 6 | 8 | 5.4 | 3 | 7.5 | 10 | 7 | 8 |
| 额定转速 Nominal Speed | Rpm | 2400 | 2650 | 2300 | 2586 | 4500 | 2600 | 3000 | 2850 | 3800 |
| 额定电流 Nominal Current | A | 160 | 200 | 210 | 200 | 85 | 125 | 175 | 70 | 95 |
| 工作制 Duty Cycle | S2 | 1.2MIN | 2MIN | 2MIN | 7.5MIN | 1.2MIN | 2MIN | 5MIN | 2MIN | 6MIN |
| S3 | 4.5%ED | 5%ED | 8%ED | 20%ED | 4.5%ED | 5%ED | 13%ED | 8%ED | 10%ED | |
| 电机转向 Motor Rotation | CW/CCW | CW | CW | CW | CW | CW | CW | CW | CW | CW |
| 电机噪音 Motor Noise | dBA/1m | 72 | 72 | 72 | 72 | 72 | 72 | 72 | 72 | 72 |

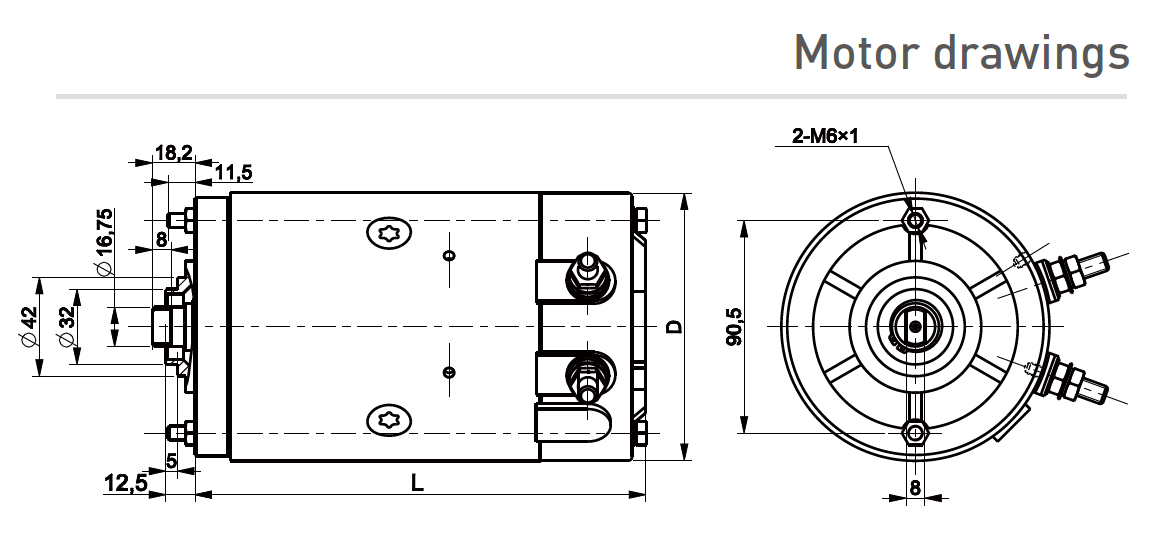

| 电机尺寸 Motor Dimension | L(mm) | 153 | 174.3 | 174.3 | 191.3 | 153 | 174.3 | 206.1 | 177.5 | 218.1 |
| D(mm) | 114 | 114 | 114 | 114 | 114 | 114 | 114 | 114 | 114 | |
| 电机重量 Motor Weight | Kg | 5.1 | 7.1 | 7.6 | 8.2 | 5.1 | 7.1 | 9.4 | 7.5 | 9.4 |
| 电机设计 Motor Design | ||||||||||
| 绝缘等级 Insulation Degree | Class | F | F | F | F | F | F | F | F | F |
| 温控 Thermal Protection | Optional | √ | √ | √ | √ | √ | √ | √ | √ | √ |
| 防水等级 IP Class | Class | IP54 | IP54 | IP54 | IP54 | IP54 | IP54 | IP54 | IP54 | IP54 |
| 励磁方式 Excitation | Wound | 串励 Series | 串励 Series | 复励 Compound | 串励 Series | 复励 Compound | 复励 Compound | 串励 Series | 复励 Compound | 复励 Compound |
| 振动 Vibration | mm/S | <2 | <2 | <2 | <2 | <2 | <2 | <2 | <2 | <2 |
| 绝缘强度 Insulation Resistance | MΩ | >10 | >10 | >10 | >10 | >10 | >10 | >10 | >10 | >10 |
| 电机寿命 Motor Endurance | Hrs | 400 | 400 | 400 | 800 | 400 | 400 | 800 | 400 | 400 |
