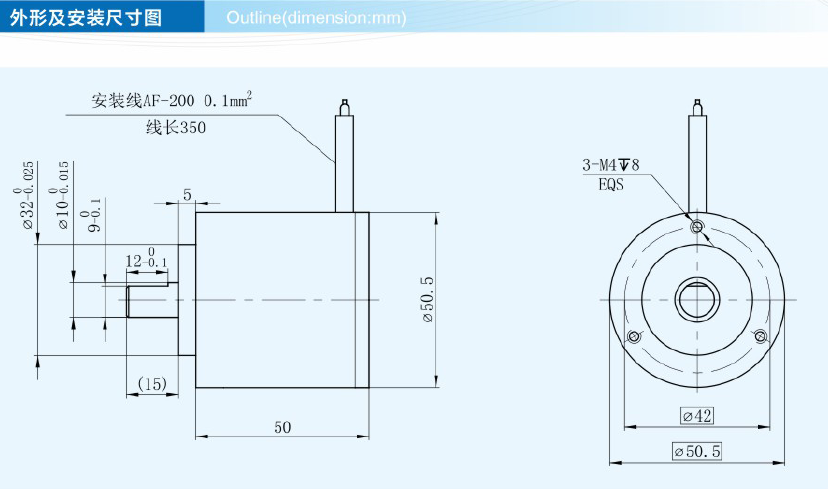

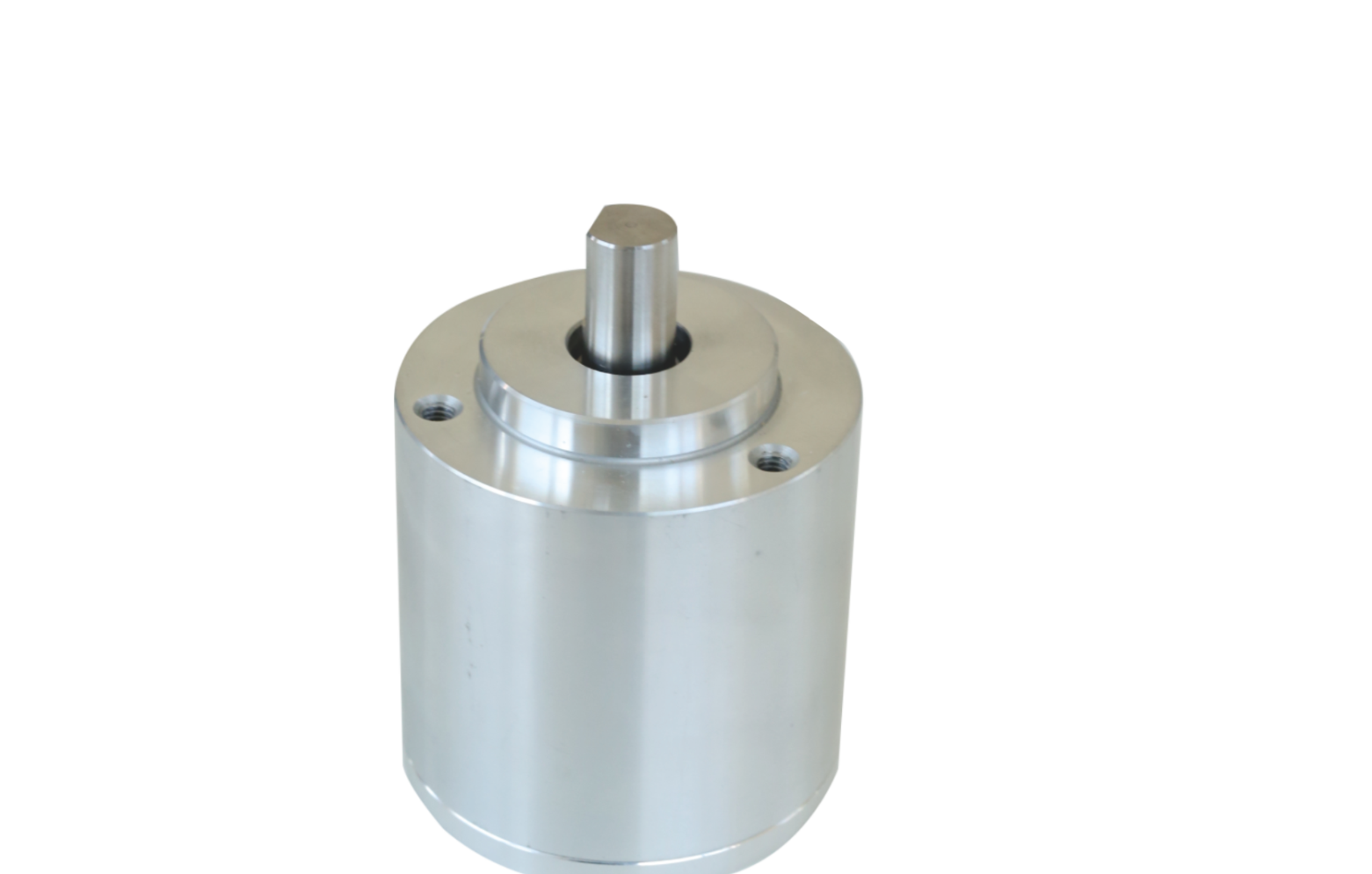

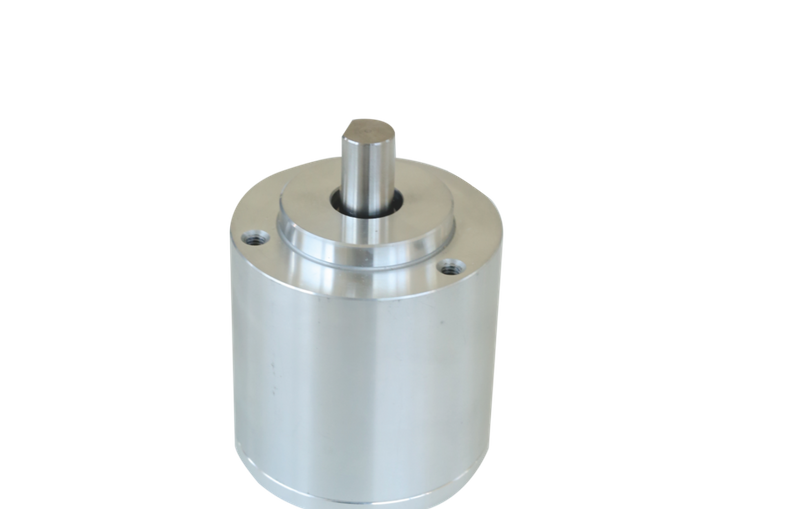

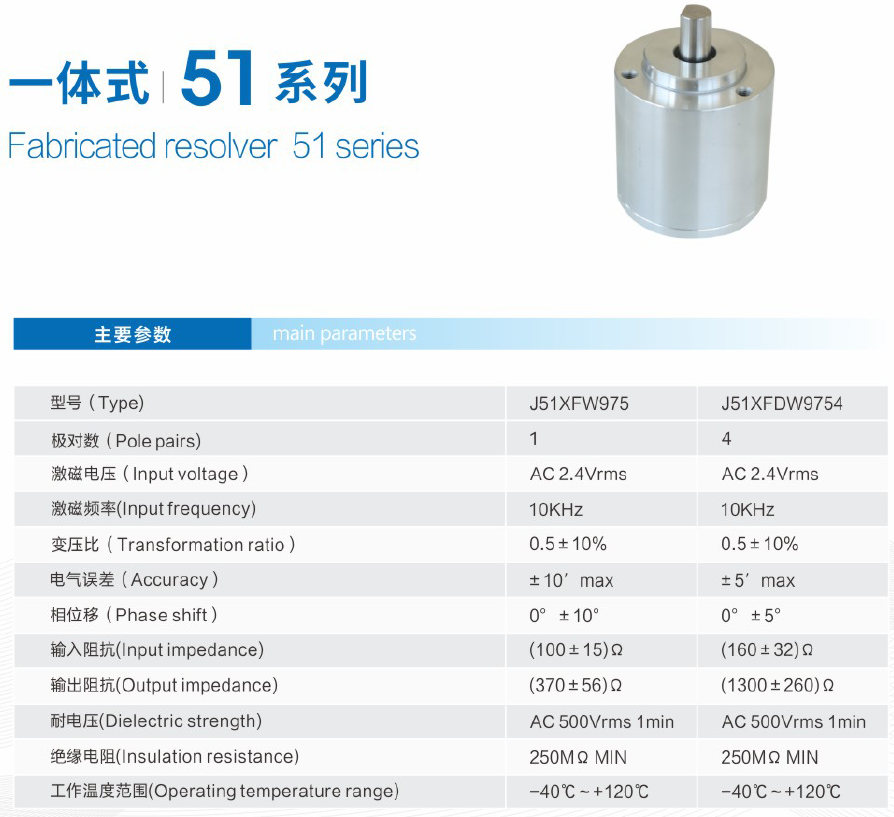

Characteristic:
High temperature resistance, Integrated sealing structure, Anti-pollution protection, Anti-vibration, shock resistance.
Our products are widely applied in servo motors, wind power, factory automation, construction machinery, medical equipment, metallurgy, oil and gas, vector motors, aerospace, new energy vehicles and other industries.
Application Areas
1. Servo Control Systems: Used to measure the angular displacement and angular velocity of rotating objects, enabling precise position control.
2. Robotic Systems: Provides precise angle feedback for robot joints, ensuring the accuracy of robot movement.
3. Automotive Industry: In electric vehicles, rotary transformers are used as position and speed sensors, providing critical information for motor control. Furthermore, in hybrid vehicles, rotary transformers also play an important role in detecting the rotational speed of the electric motor.
4. Industrial Automation: In equipment such as CNC machine tools, injection molding machines, elevators, and robotic arms, rotary transformers are used to achieve precise measurement of angular velocity and position.
5. Transportation Sector: Rotary transformers are also widely used in areas such as railway transportation, agricultural and construction equipment, buses and heavy trucks, golf carts, and low-speed electric vehicles.
6. Aerospace and Military Fields: Due to their high reliability and precision, rotary transformers are widely used in angle and position detection systems in the aerospace and military fields.
FAQ
Q1：What is a resolver and where are it used?
A resolver is a brushless angle feedback system based on the principle of electromagnetic induction, producing an absolute analog signal. It is primarily used to control the speed of servo motors. Compared to rotary encoders, resolvers have a wider range of applications (e.g., robotics, automotive, transportation, aerospace, and military). Depending on the design, the operating temperature range can be -55°C to 155°C. Resolvers are unaffected by radioactivity and can be used in absolute vacuum (space). Maximum speeds can reach 90,000 rpm.
Q2：Why did the resolver control unit report an error during the first test?
Are the frequency, input voltage, turns ratio, and current loss of the resolver consistent with the values set by the control unit。Stranded cable (input voltage, Sin, Cos)
Is there any electromagnetic interference (from motor brakes, excessively long cables)
Q3：Why can resolver products in the same series have different specifications?
Because servo controllers commonly found on the market come in different frequencies and voltages. The data on resistance and phase shift in the three tables correspond to various resistances, impedance strengths, and phase shifts under two to three different input frequencies and feedback voltages. We provide you with the necessary information to help you select the correct analog-to-digital converter or appropriate control components.
Q4：How to install and secure the stator and rotor of a rotary transformer?
The stator is mounted to the bearing housing of the motor. It is secured using clamps or snap rings.
The rotor is typically glued to the rotating shaft. For some special shapes or security applications, the rotor can be secured to the shaft using axial screws. For larger shaft diameters, the rotor is secured with radial clamping screws (e.g., set screws).
Q5：What is the accuracy of the resolver?
Standard resolvers have an absolute measurement accuracy of ±10'. In most cases, this accuracy is sufficient for speed control units with typical systems. For applications requiring higher precision positioning, we also offer resolvers with absolute measurement accuracies of ±6' and ±4'.
Please contact our sales team for details regarding model naming.
