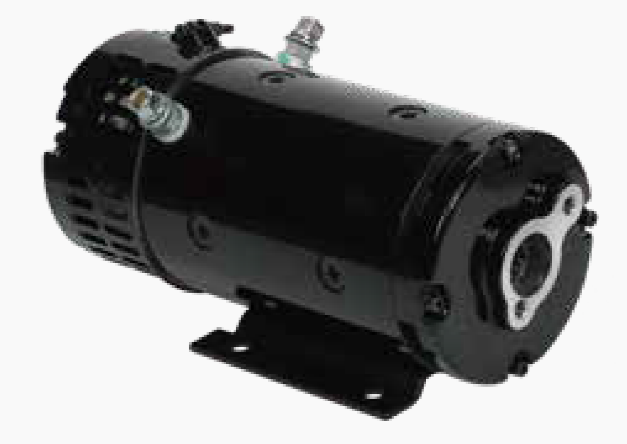

ST127-BL Series
start-motors
0104
| Quantity: | |
|---|---|
| 电机参数 Motor Data | 电机型号 Motor Model | ||
| ZD002 | ZD061 | ||
| 额定功率 Nominal Power | kW | 4.5 | 4 |
| 额定电压 Nominal Voltage | V | 24 | 48 |
| 环境温度 Environmental Tempeature | °C | -20-40°C | -20-40°C |
| 空载转速 No-load Speed | Rpm | 7200 | 6800 |
| 空载电流 No-load Current | A | 45 | 20 |
| 额定负载 Nominal Torque | N.m | 14 | 14 |
| 额定转速 Nominal Speed | Rpm | 2800 | 2800 |
| 额定电流 Nominal Current | A | 210 | 110 |
| 工作制 Duty Cycle | S2 | 12MIN | 6MIN |
| S3 | 20%ED | 12%ED | |
| 电机转向 Motor Rotation | CW/CCW | CW | CW |
| 电机噪音 Motor Noise | dBA/1m | 90 | 90 |

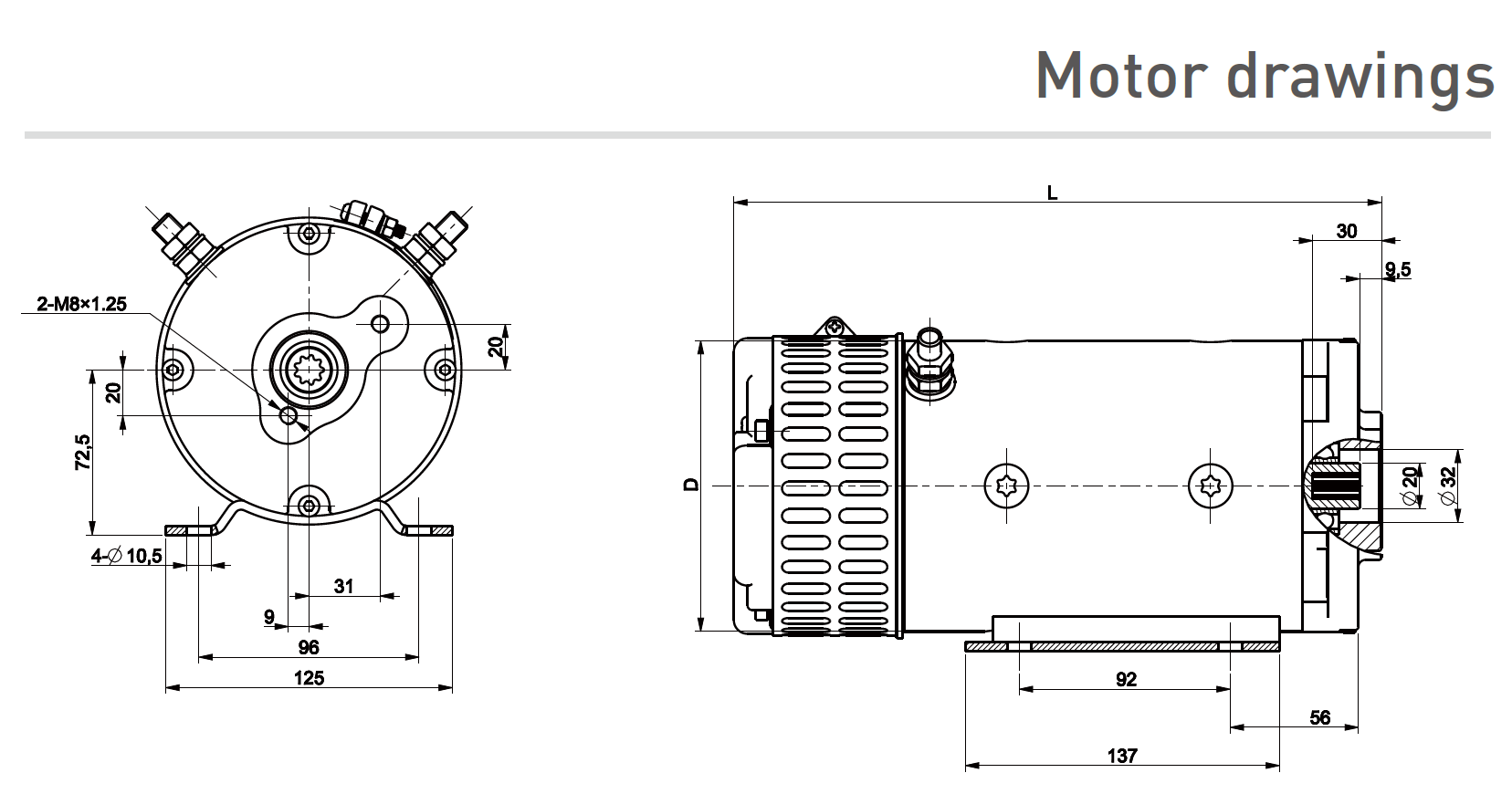

| 电机尺寸 Motor Dimension | L（mm） | 282.5 | 282.5 |
| D（mm） | 127 | 127 | |
| 电机重量 Motor Weight | Kg | 15.5 | 15.5 |
| 电机设计 Motor Design | |||
| 绝缘等级 Insulation Degree | Class | H | H |
| 温控 Thermal Protection | Optional | √ | √ |
| 防水等级 IP Class | Class | IP23 | IP23 |
| 励磁方式 Excitation | Wound | 串励 Series | 串励 Series |
| 振动 Vibration | mm/S | <5 | <5 |
| 绝缘强度 Insulation Resistance | MΩ | >20 | >20 |
| 电机寿命 Motor Endurance | Hrs | 800 | 800 |
