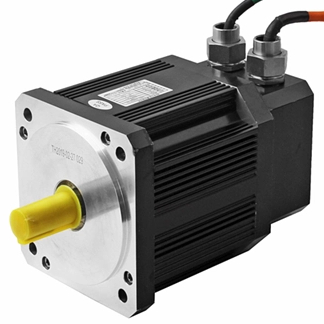

BLDC Explosion-proof Motor 150series

  • EP-BLDC150series

  • start-motors

  • 013

Availability:
Quantity:
Inquire Add to Basket

17450289105291745028930584

DC24V
Motor   Model 150ST-□04030-24V-EX 150ST-□06030-24V-EX 150ST-□07725-24V-EX 150ST-□10025-24V-EX 150ST-□15020-24V-EX
Rated Power(W) 1200 1800 2000 2500 3000
Rated Currently(A) 62.5 93.8 104.2 130.2 156.3
Rated speed(rpm) 3000 3000 2000 1500 1500
MAX Speed(rpm) 3600 3600 2400 1800 1800
Rated torque(Nm) 4 6 7.7 10 15
MAX Torque(Nm) 12 18 23.1 30 45
Rotor inertia(Kg.cm²) 8.5 12.6 15.3 21.4 27.7
MTC（ms） 22 24 26 29 34
DC48V
Motor   Model 150ST-□04030-48V-EX 150ST-□06030-48V-EX 150ST-□07730-48V-EX 150ST-□10030-48V-EX 150ST-□15030-48V-EX
Rated Power(W) 1200 1800 2400 3000 4500
Rated Currently(A) 29.4 44.1 58.8 73.5 110.3
Rated speed(rpm) 3000 3000 3000 3000 3000
MAX Speed(rpm) 3600 3600 3600 3600 3600
Rated torque(Nm) 2 4 6 9 9
MAX Torque(Nm) 6 12 18 27 27
Rotor inertia(Kg.cm²) 8.5 12.6 15.3 21.4 27.7
MTC（ms） 20 21 22 25 29
DC72V
Motor   Model 150ST-□04030-72V-EX 150ST-□06030-72V-EX 150ST-□07730-72V-EX 150ST-□10030-72V-EX 150ST-□15030-72V-EX
Rated Power(W) 1200 1800 2400 3000 4500
Rated Currently(A) 19.6 29.4 39.2 49.0 73.5
Rated speed(rpm) 3000 3000 3000 3000 3000
MAX Speed(rpm) 3600 3600 3600 3600 3600
Rated torque(Nm) 2 4 6 9 9
MAX Torque(Nm) 6 12 18 27 27
Rotor inertia(Kg.cm²) 8.5 12.6 15.3 21.4 27.7
MTC（ms） 17 18 19 22 25
AC220V
Motor   Model 150ST-□04030-EX 150ST-□06030-EX 150ST-□07730-EX 150ST-□10030-EX 150ST-□15030-EX
Rated Power(W) 1200 1800 2400 3000 4500
Rated Currently(A) 4.8 7.3 9.7 12.1 18.1
Rated speed(rpm) 3000 3000 3000 3000 3000
MAX Speed(rpm) 3600 3600 3600 3600 3600
Rated torque(Nm) 2 4 6 9 9
MAX Torque(Nm) 6 12 18 27 27
Rotor inertia(Kg.cm²) 8.5 12.6 15.3 21.4 27.7
MTC（ms） 14 15 16 18 21


Previous:
Next:
BLDC Explosion-proof Motor Explosion-proof Motor Mining industry Hydraulic mining BLDC motor DC motor Agricultural shipping 3000rpm high torque
