Advantages of motors:
1. The motor's ourput shaft uses ball beanings, itimproved work efficiency and extended service life;
2. The motor can be matched with gearboxes of different specifications，this improves output torque and resolution;
3. Motors in various diameters and lengths are available to meet space requirements. Space flexibility。
4. The encoder can obtain position feedback（HALL）；
5. We can customize the windings to adapt to different operating voltages.

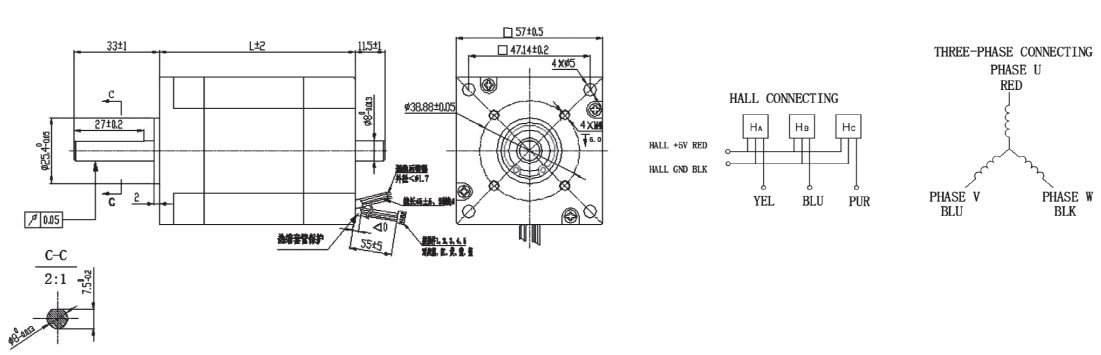

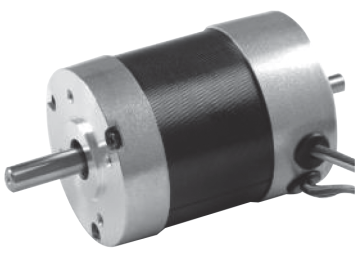

Motor size( unit: mm)Φ57series
| Motor Data | Unit | ST57BL(S)01 | ST57BL(S)02 | ST57BL(S)03 | ST57BL(S)04 |
Number of poles | 4 | ||||
Number of phases | 3 | ||||
Rated voltage | VDC | 36 | |||
Rated torque | N.m | 0.11 | 0.22 | 0.33 | 0.44 |
Continuous stall torque | N.m | 0.132 | 0.264 | 0.396 | 0.528 |
Rated speed | RPM | 4000 | 4000 | 4000 | 4000 |
Rated power | W | 46 | 99 | 138 | 184 |
Peak torque | N.m | 0.39 | 0.7 | 1.0 | 1.27 |
Peak current | A | 6.5 | 12 | 16 | 21 |
Line to line resistance | ohms@20℃ | 1.63 | 0.64 | 0.45 | 0.33 |
Line to line inductance | mH | 4.4 | 2 | 1.5 | 0.95 |
Torque constant | N.m/A | 0.0607 | 0.0601 | 0.0648 | 0.0621 |
Back EMF | Vrms/KRPM | 4.5 | 4.45 | 4.8 | 4.6 |
Rotor inertia | g.cm2 | 75 | 119 | 173 | 230 |
Motor length：L | mm | 53.6 | 73.6 | 93.6 | 113.6 |
Weight | Kg | 0.44 | 0.72 | 0.95 | 1.2 |
Electric Connection Φ57series
引出线型号Type | 引出线颜色Color | 功能Functions |
UL1430 AWG20 | 红色 ( Red ) | 霍尔电源正 ( Vcc ) |
蓝色 ( Blue ) | 霍尔 U ( Hu ) | |
绿色 ( Green ) | 霍尔 V ( Hv ) | |
白色 ( White ) | 霍尔 W ( Hw ) | |
黑色 ( Black ) | 霍尔电源负 ( GND ) | |
UL AWG26 | 黄色 ( Yellow ) | U相 ( Phase U ) |
红色 ( Red ) | V相 ( Phase V ) | |
黑色 ( Black) | W相 ( Phase W ) |

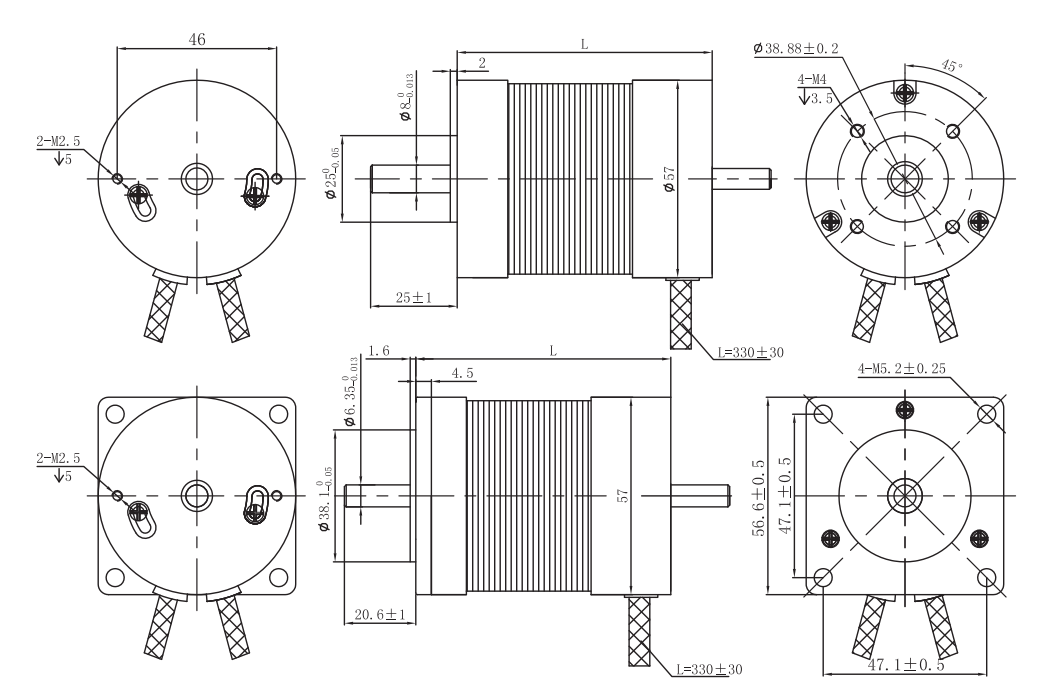

Motor size( unit: mm)■57series
Unit | ST57BLB40 | ST57BLB60 | ST57BLB80 | |
Number of poles | 8 | |||
Number of phases | 3 | |||
Rated voltage | VDC | 36 | ||
Rated torque | N.m | 0.3 | 0.45 | 0.6 |
Continuous stall torque | N.m | 0.36 | 0.54 | 0.72 |
Rated speed | RPM | 3000 | 3000 | 3000 |
Rated power | W | 94 | 141 | 188 |
Peak torque | N.m | 0.9 | 1.35 | 1.8 |
Peak current | A | 12.3 | 18.2 | 23.8 |
Line to line resistance | ohms@20℃ | 1.2 | 0.8 | 0.5 |
Line to line inductance | mH | 1.2 | 0.8 | 0.6 |
Torque constant | N.m/A | 0.076 | 0.076 | 0.077 |
Back EMF | Vrms/KRPM | 5.6 | 5.6 | 5.7 |
Rotor inertia | g.cm2 | 210 | 320 | 430 |
Motor length ) L | mm | 76 | 96 | 116 |
Weight | Kg | 0.8 | 1.0 | 1.2 |
Electric Connection■57series
引出线型号 Type | 引出线颜色 Color | 功能 Functions |
UL1061 AWG28 | 红色 ( Red ) | 霍尔电源正 ( Vcc ) |
蓝色 ( Blue ) | 霍尔 U ( Hu ) | |
绿色 ( Green ) | 霍尔 V ( Hv ) | |
白色 ( White ) | 霍尔 W ( Hw ) | |
黑色 ( Black ) | 霍尔电源负 ( GND ) | |
UL1430 AWG18 | 黄色 ( Yellow ) | U相 ( Phase U ) |
红色 ( Red ) | V相 ( Phase V ) | |
黑色 ( Black) | W相 ( Phase W ) |
