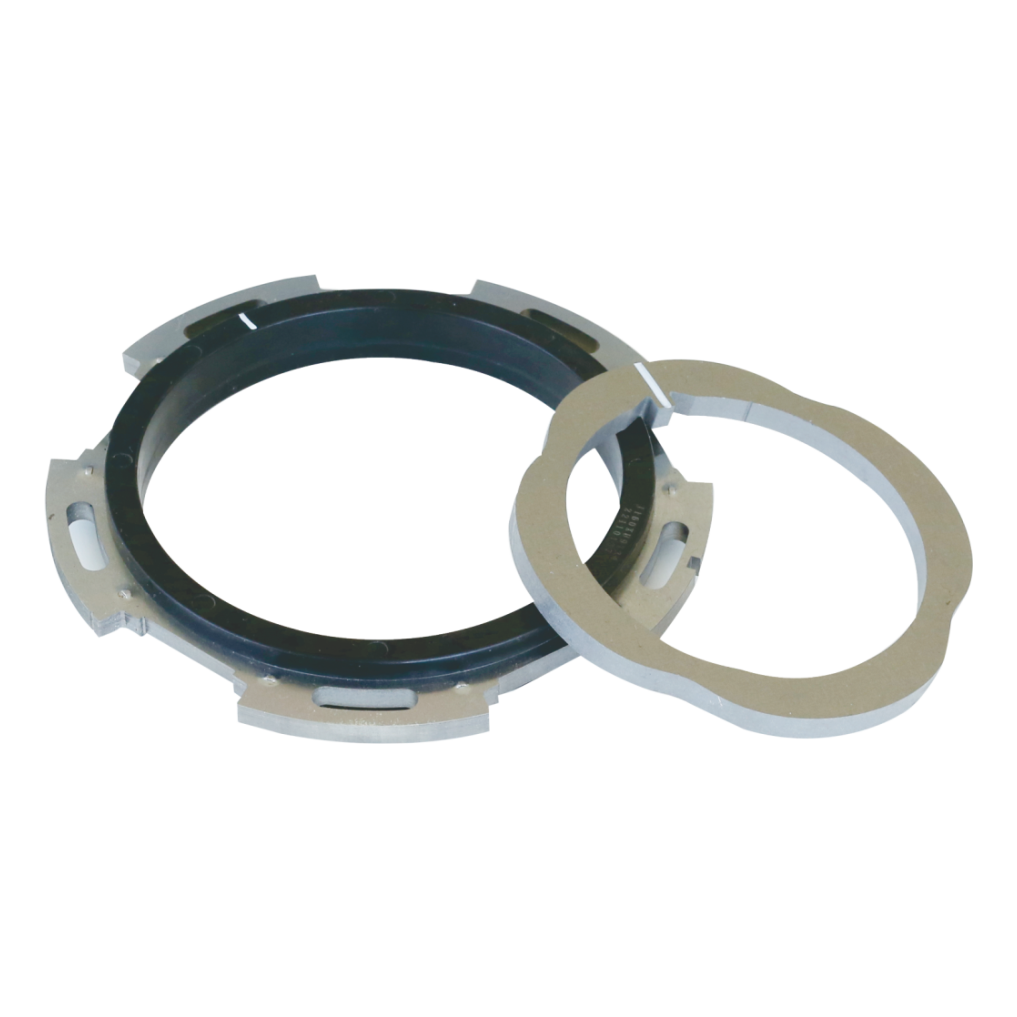

Variable Reluctance Resolver is an absolute angle sensor component that converts mechanical rotary angleinto electric signal through theelectromagneticinduction.lt is applicable to wide temperature, humidity range, severe environments and has highreliability.lt is widely usedin many fields such as new energy vehicles, rail transit, mining machinery, textile machinery and so on.

The product hasthe following characteristics:

1、High accurate absolute angle detection, adapted to high speed application demand;

2、Ultra--thin configuration,compact structure,easyinstallation;

3、High reliabilit, long lifespan, applicable for bad working conditions;

4、Highly cost- effective;

    Industrial Automation and Servo Equipment

• High-power servo motor, explosion-proof servo motor：In metallurgy, injection molding, textiles, and coal mine explosion-proof equipment, the glass discs of photoelectric encoders are easily damaged by oily mist and dust; magnetoresistive resolvers have no optical components and can operate maintenance-free for a long time.




• Industrial robot joint servos, collaborative robots：Frequent repeated impacts on the joint and tight spaces call for a thin magnetic reluctance resolver; using a multi-speed magnetic reluctance resolver improves angular accuracy.




• High-speed CNC machine spindle：High-speed spindle, oil-cooled environment, position and speed feedback.




• Wind turbine pitch servo：The wind turbine nacelle experiences large day-night temperature differences and heavy vibrations, the pitch motor rotor position feedback is needed, and it's outdoors without anyone on-site for a long time.

Please contact our sales team for details regarding model naming.
