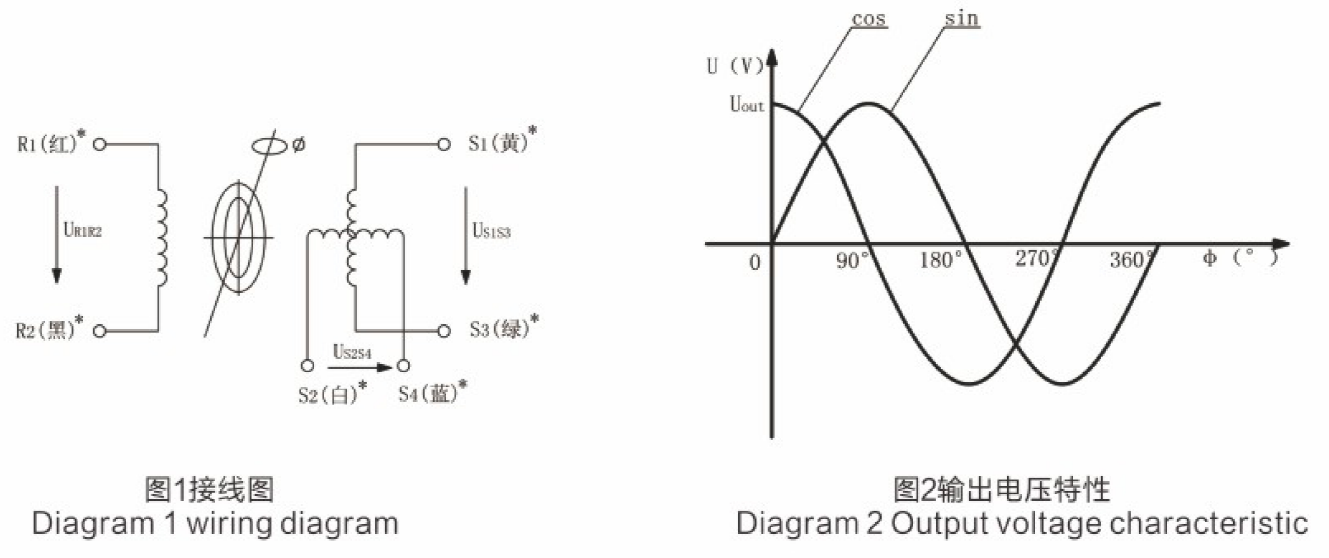

VR resolver canproduce a particular waveform curve(Sine) based on the magnetic permeability between the innerring of the stator and the outer ring ofthe rotor. The stator has 1 set of excitation winding and 2 output windings. Theoutput voltage changes as asine or cosine characteristic according to the change ofthe air gap between rotor and stator. Please referto diagram 1 and diagram 2for details.
Variable Reluctance Resolver Circuit Theory
VR resolver canproduce a particular waveform curve(Sine) based on the magnetic permeability between the innerring of the stator and the outer ring ofthe rotor. The stator has 1 set of excitation winding and 2 output windings. Theoutput voltage changes as asine or cosine characteristic according to the change ofthe air gap between rotor and stator. Please referto diagram 1 and diagram 2for details.
