ST-VR52 SERIES
start-motors
096
| Quantity: | |
|---|---|

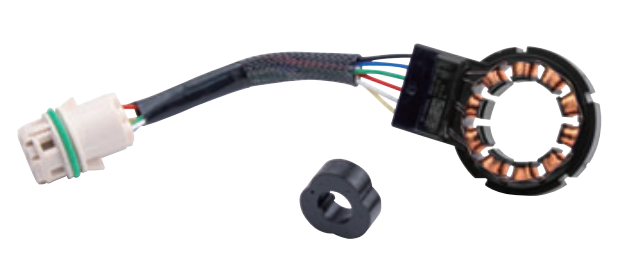

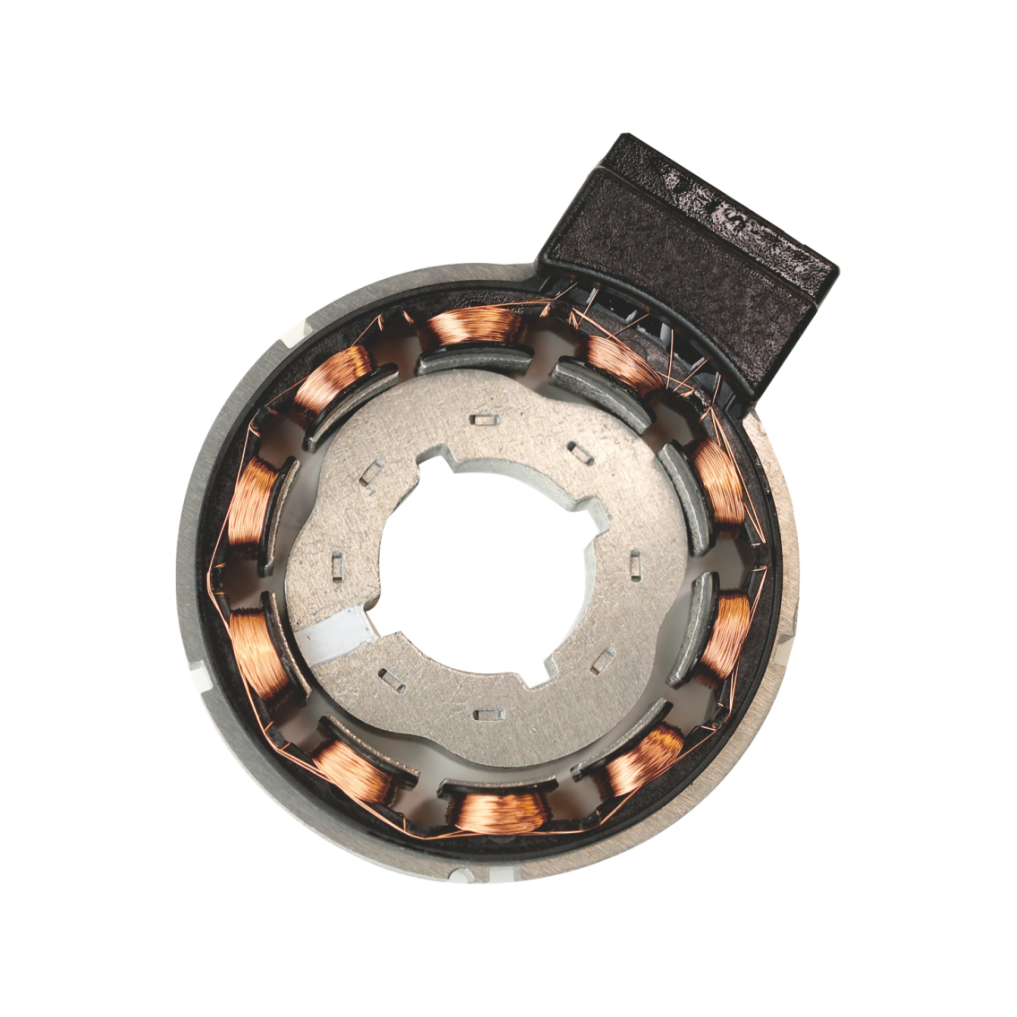

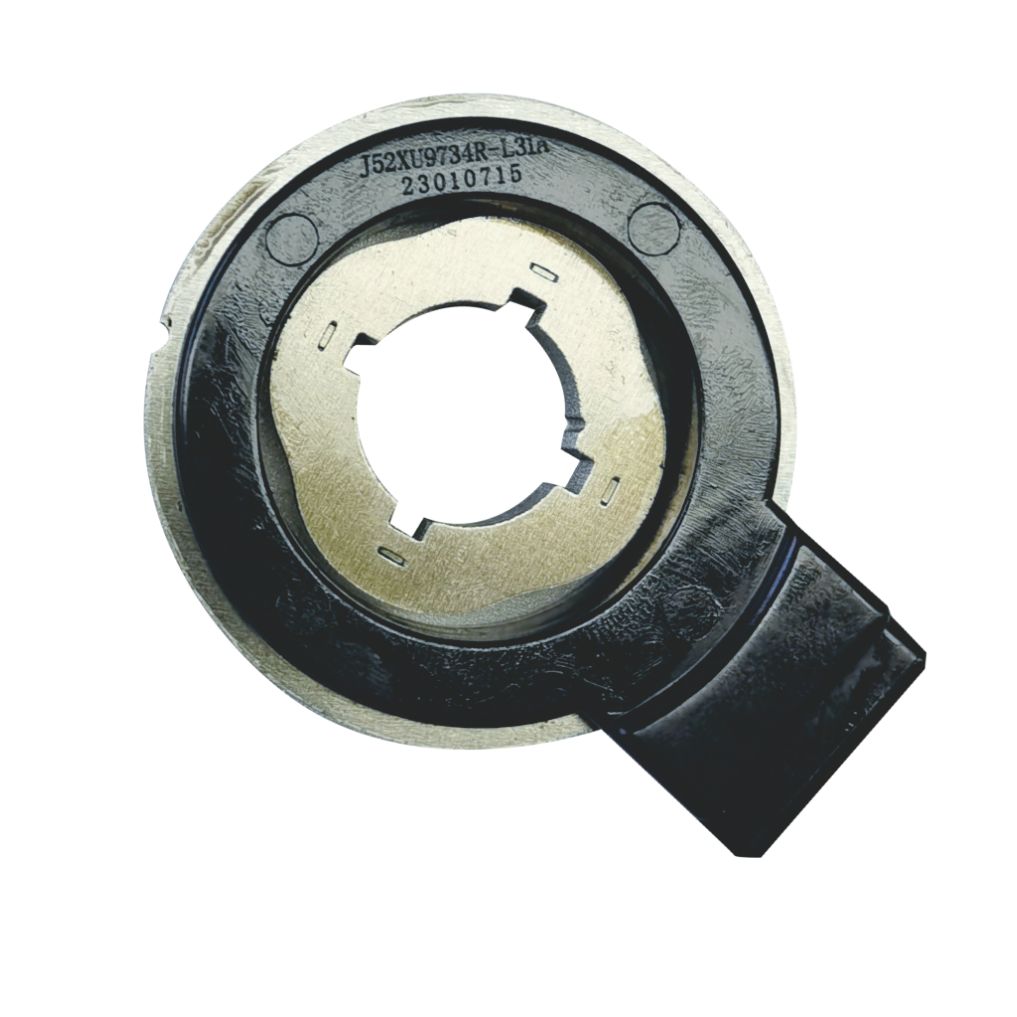

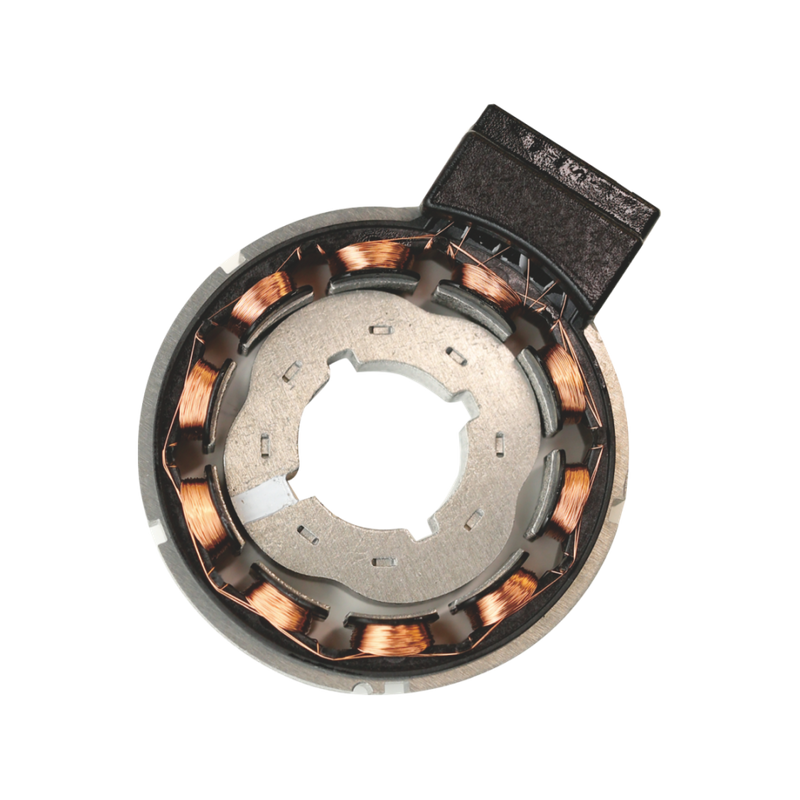

Our product consists of a set of excitation windings that share the same magnetic path, generating two sets of coarse and fine sine-cosine position signals. The stator coarse machine is a multi-pole winding, while the fine machine is a pair of poles. It can provide both a pair of pole absolute position signals and high-precision multi-pole position signals. Our product adopts an axial magnetic path magnetic reluctance type rotary transformer structure. The volume and diameter can be freely adjusted according to needs. Our product is compact and simple, not only has strong shock resistance, but also reduces the constant potential component, thereby minimizing the errors caused by installation eccentricity and other factors to the greatest extent. It can be applied in various fields such as electric vehicles, aviation and aerospace.
The main technical features:
1、High accurate absolute angle detection, adapted to high speed application demand; Ultra- -thin configuration, compact structure, easy installation;
3、High reliabilit, long lifespan, applicable for bad working conditions;/4、Highly cost- effective;
4、Unique patented technology.
Our product consists of a set of excitation windings that share the same magnetic path, generating two sets of coarse and fine sine-cosine position signals. The stator coarse machine is a multi-pole winding, while the fine machine is a pair of poles. It can provide both a pair of pole absolute position signals and high-precision multi-pole position signals. Our product adopts an axial magnetic path magnetic reluctance type rotary transformer structure. The volume and diameter can be freely adjusted according to needs. Our product is compact and simple, not only has strong shock resistance, but also reduces the constant potential component, thereby minimizing the errors caused by installation eccentricity and other factors to the greatest extent. It can be applied in various fields such as electric vehicles, aviation and aerospace.
The main technical features:
1、High accurate absolute angle detection, adapted to high speed application demand; Ultra- -thin configuration, compact structure, easy installation;
3、High reliabilit, long lifespan, applicable for bad working conditions;/4、Highly cost- effective;
4、Unique patented technology.
