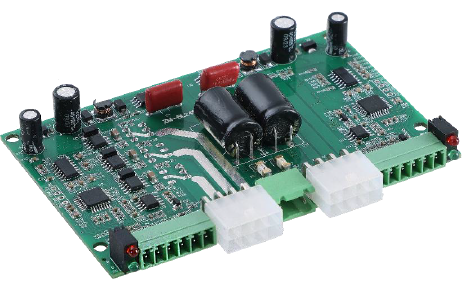

Open-frame Square Brushless Motor Driver
start-motors
033
| Quantity: | |
|---|---|
Model： BL2205FH-RK03
product feature：
It has the function of communicating with the upper computer via RS232 serial port.
It adopts a dual-closed-loop design for current and speed, with large low-speed torque and stable operation.
It can output high torque and high speed, with the maximum speed reaching 10,000 rpm/min (depending on the user's motor).
Speed control method: external PWM speed control or external potentiometer speed control.
It has EN (enable), DIR (direction), and signal control terminals.
It can output speed measurement pulses FG (optically isolated, gate output).
It can output alarm signal ALM for user detection (optically isolated, gate output).
It has protection functions such as overcurrent, overvoltage, undervoltage, phase error of Hall sensor, and motor stall.
Electrical performance (at environmental temperature Tj = 25℃)
Power supply voltage: AC 80V - 220V. AC power supply. Capacity is selected according to the motor power.
Input current: 5A
Maximum input power: 1100W
Suitable for motors: Motors with Hall brushless motors and output power ≤ 750W are compatible.
Motor pole pairs: 2, 4, 6, 8 pairs
Speed: Below 10000 rpm
Control motor method: Square-wave output, open-loop output
Speed regulation method: PWM speed control, VSP 0-5V speed control
Speed feedback signal output: Motor speed (RPM) = F ÷ N × 60 (F is the output frequency, N is the pole pairs)

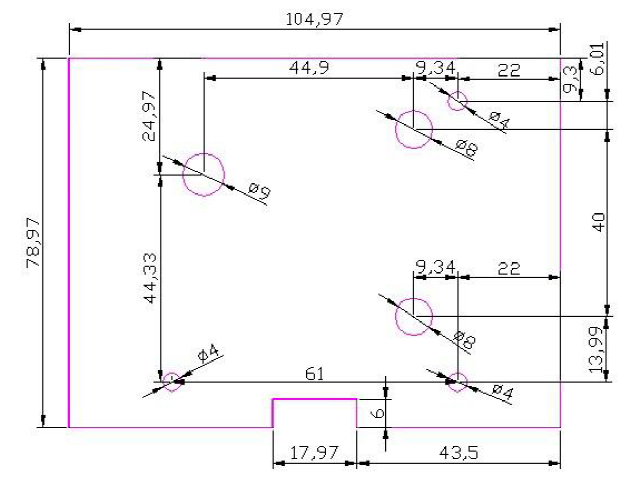

Dimensions: 150mm X 97.5mm X 53mm

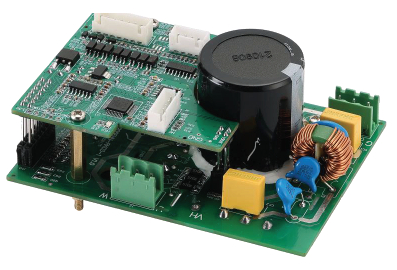

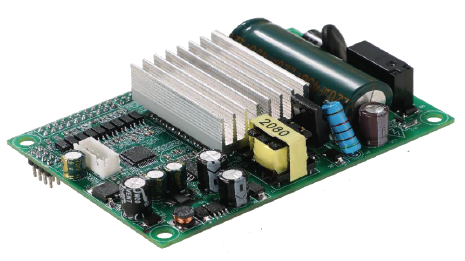

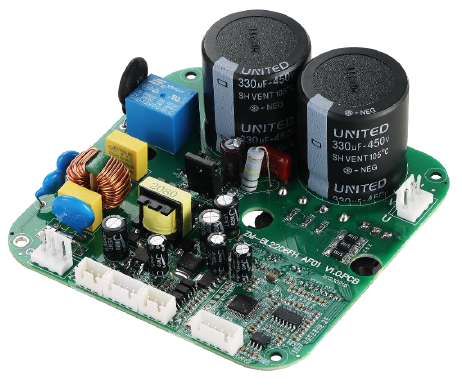

We have several types of drives. The power and current capacity can be selected based on the actual application scenarios of the customers. It also includes the selection of installation dimensions. For more model options, please feel free to contact us at any time.
How to choose the right drive?
1. Current and Power Capability
When selecting a driver, the primary considerations are its current and power capabilities. The current capability must be sufficient to meet the motor's demands. Consider the motor's rated power and peak power to ensure the driver can provide enough power to handle high loads instantaneously.
2. Control Method
The driver's control method is also an important factor in selection. Common control methods include PWM control and pulse direction control. PWM control offers more precise speed and torque control, while pulse direction control is simpler and less expensive. Choose the appropriate control method based on the specific application requirements.
3. Protection Functions
Drivers for high-power brushless motors should possess several protection functions to prevent unexpected malfunctions and damage. Common protection functions include overvoltage protection, overcurrent protection, and overheat protection. Ensuring the driver has these protection functions improves system reliability and safety.
4. Debugging and Configuration
When choosing a driver, ease of debugging and configuration should be considered. Some drivers offer simple configuration interfaces or interfaces, allowing for easy parameter adjustment and monitoring of system operation. A good driver should also provide strong technical support, as well as detailed product manuals and debugging guides.
5. Cost and Reliability
Cost and reliability are also factors to consider when choosing a driver. Price is not always the deciding factor; performance and quality are equally important. When selecting a driver, its cost-effectiveness and long-term reliability should be considered comprehensively.
Q1：Can I use my own logo or design on the products?
A: Yes,we provide OEM/ODM services;your logo and design can be applied to the products.
Q2.What are the advantages of your company?
A：Strong R&D and innovation capabilities, efficient production and logistics management, excellent customer service, rich industry experience, unique market positioning, strong corporate culture and team cohesion.We can quickly match you with equipment parts of the exact same model,which improves your procurement efficiency。
Q3: What is your delivery time?
A: Generally, our standard products take 25 days, and customized products take longer（40 days）. However, we are very flexible with delivery times, which will depend on the specific order details.
Please contact our sales team for details regarding model naming.
