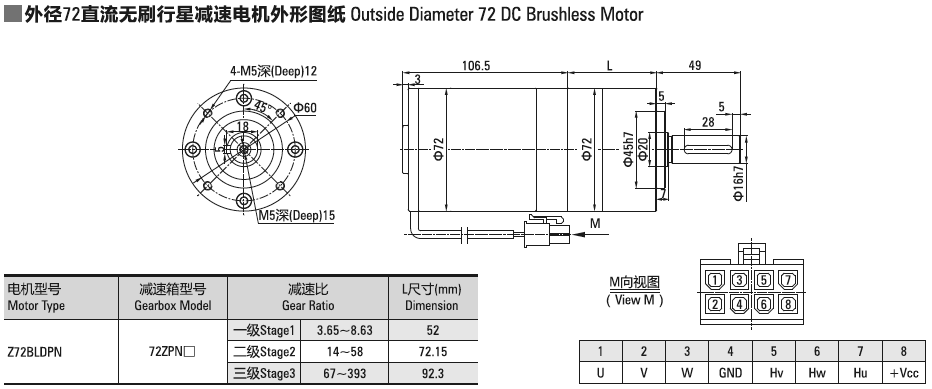

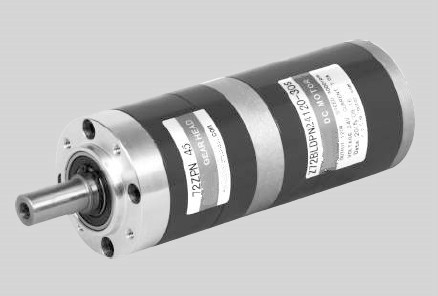

BLDC Planetary Gear Φ72 Series
start-motors
028
| Quantity: | |
|---|---|

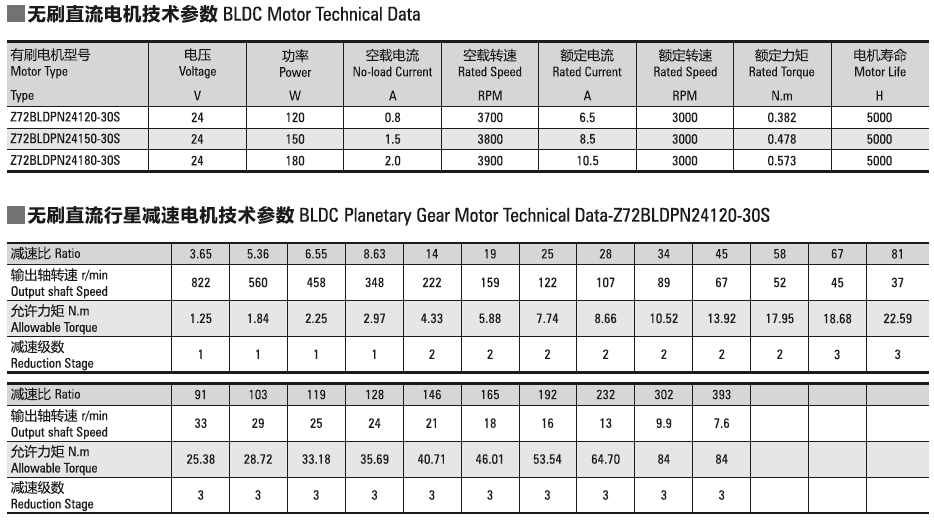

The main technical parameters of the motor:
1、 Rated voltage（DC）：12V，24V，48V，72V，110V
2、 Motor Outline Dimension（mm）: φ22~82mm
3、Motor Speed（rpm）:1500, 2000, 2500, 3000, 3500, 4000, 4500;
4、Gear Reduction Ration: 3~200;
5、Power（W）：15, 20, 40，60, 90，120, 200，400, 750， 900， 1000， 1500；
6、Rated Torque (N.m): 0.14~60N.m
The application scenarios of our brushless motors are extremely wide-ranging, including but not limited to the following fields:

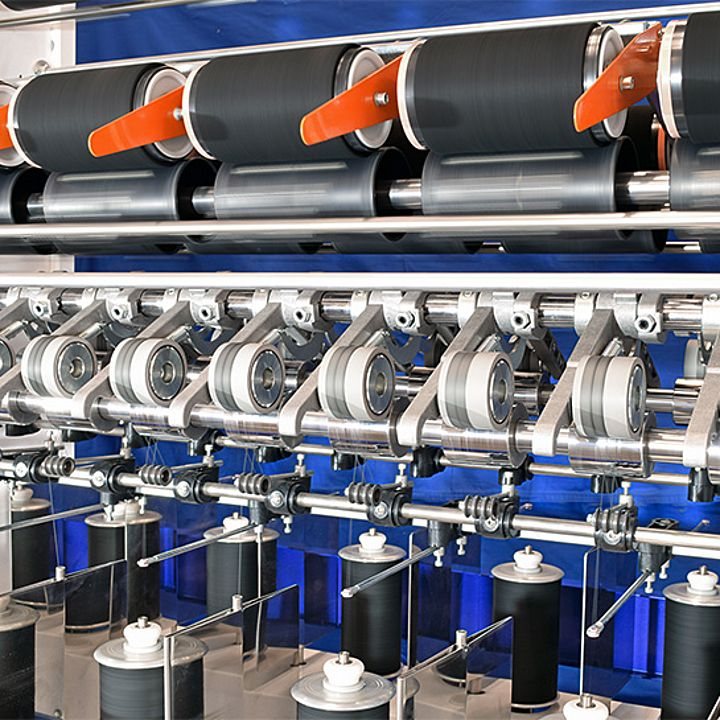

1. Industrial Automation: Brushless DC geared motors are commonly used in various industrial automation equipment, such as automatic conveyor belts and robotic arms. These motors provide stable power output and allow for precise speed and position control as needed. Furthermore, their high efficiency and long lifespan reduce maintenance costs and improve the overall system performance.

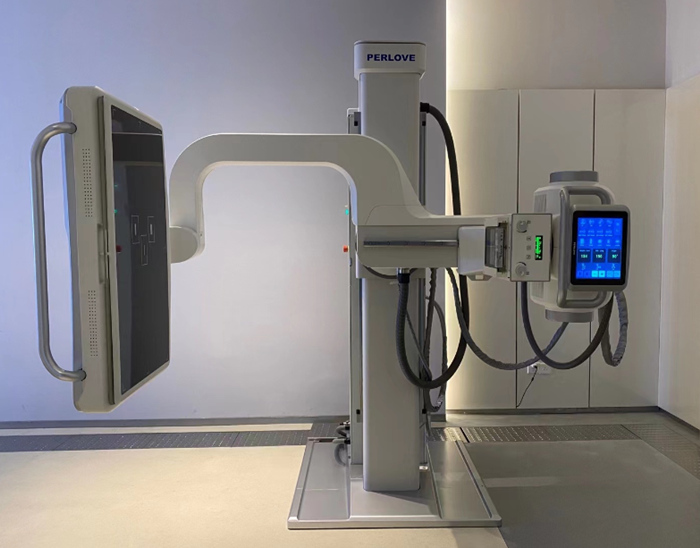

2. Medical Equipment: In the medical device field, brushless DC geared motors are widely used in surgical instruments, dialysis machines, and X-ray machines due to their high precision and reliability. These motors ensure smooth and accurate operation of the equipment, which is crucial for improving the accuracy of diagnosis and treatment.
3. Home Appliances: In the home appliance industry, brushless DC geared motors are favored for their high efficiency, low noise, and compact design. For example, in appliances such as air conditioners, washing machines, and refrigerators, these motors effectively reduce energy consumption, extend service life, and reduce noise during operation.
4. Aerospace: In aerospace engineering, the requirements for motors are extremely high, demanding not only lightweight design but also extremely high reliability and stability. Brushless DC geared motors are the ideal choice to meet these needs. They are used in various control systems on aircraft and in critical missions such as satellite attitude control.
5. Automotive Industry: With the growth of the electric and hybrid vehicle market, the demand for brushless DC geared motors is constantly increasing. These motors are used in drive systems, steering systems, and braking systems, and their high efficiency and performance help improve the overall efficiency and safety of vehicles.
6. Security Equipment: Brushless DC geared motors are also used in security cameras and other surveillance equipment, providing precise rotation and translation control to ensure smooth and clear monitoring footage.
FAQ
Q1: What are our main products?
A: We mainly produce planetary (square) DC gear motors, brushless DC motors, resolvers, NEMA motors, hydraulic DC motors, automatic door motors, etc. You can view the specifications of the above products on our website, or you can recommend products according to your specifications to us via email.
Q2: How to choose the right motor?
A: If you have pictures or drawings of motors to show us, or if you have detailed specifications such as voltage, speed, torque, motor size, operating mode, required lifespan, and noise level, please don't hesitate to let us know. Then we can recommend a suitable motor based on your requirements.
Q3.How is your product quality?
A: All our products are brand new and original (we have spare materials for standard products). We will conduct random checks on incoming materials and full inspections on every finished product to ensure that it meets quality standards before shipping it to you. We will provide a factory inspection report for your traceability.
Q4: Do you offer customization services or personalized designs for standard motors?
A: Yes, we can customize voltage, speed, torque, and shaft size/shape according to your requirements. We can also do this if you need to solder additional wires/cables to the terminals, or add connectors, capacitors, or EMC.
Additionally, we can provide individual design services, but this may incur some mold development costs.
Q5：Can I use my own logo or design on the products?
A: Yes,we provide OEM/ODM services;your logo and design can be applied to the products.
Q6.What are the advantages of your company?
A：Strong R&D and innovation capabilities, efficient production and logistics management, excellent customer service, rich industry experience, unique market positioning, strong corporate culture and team cohesion.We can quickly match you with equipment parts of the exact same model,which improves your procurement efficiency。
Q7: What is your delivery time?
A: Generally, our standard products take 25 days, and customized products take longer（40 days）. However, we are very flexible with delivery times, which will depend on the specific order details.
Please contact our sales team for details regarding model naming.
