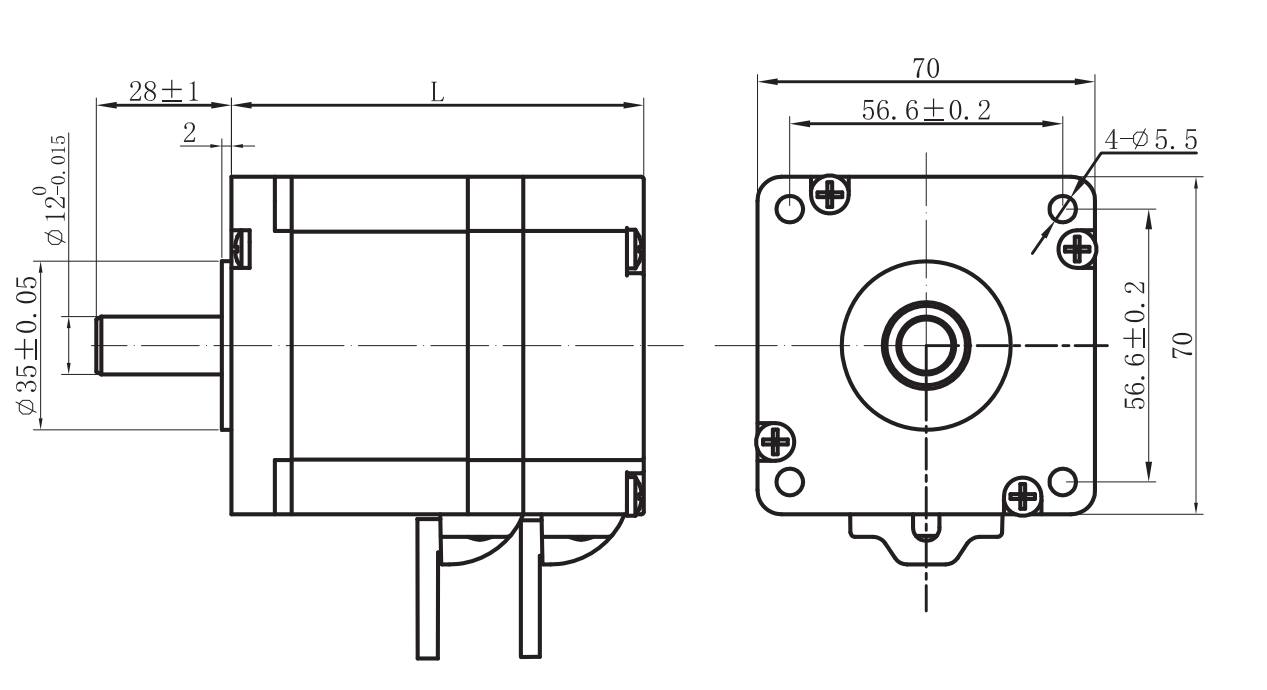

Motor size( unit: mm)■70series
| Motor Data | Unit | ST70BLS01 | ST70BLS02 | ST70BLS03 |
Number of poles | 8 | |||
Number of phases | 3 | |||
Rated voltage | VDC | 48 | ||
Rated torque | N.m | 0.5 | 1.0 | 1.5 |
Continuous stall torque | N.m | 0.6 | 1.2 | 1.8 |
Rated speed | RPM | 3000 | 3000 | 3000 |
Rated power | W | 157 | 314 | 471 |
Peak torque | N.m | 1.5 | 3.0 | 4.5 |
Peak current | A | 13.0 | 26 | 38 |
Line to line resistance | ohms@20℃ | 0.6 | 0.3 | 0.22 |
Line to line inductance | mH | 1.4 | 0.7 | 0.55 |
Torque constant | Nm/A | 0.12 | 0.12 | 0.12 |
Back EMF | Vrms/KRPM | 9.0 | 9.0 | 9.0 |
Rotor inertia | g.cm2 | 200 | 400 | 600 |
Motor length ) L | mm | 86 | 116 | 136 |
Weight | Kg | 1.3 | 2.1 | 2.9 |
引出线型号 Type | 引出线颜色 Color | 功能 Functions |
UL2464 AWG26 | 红色 ( Red ) | 霍尔电源正 ( Vcc ) |
蓝色 ( Blue ) | 霍尔 U ( Hu ) | |
绿色 ( Green ) | 霍尔 V ( Hv ) | |
白色 ( White ) | 霍尔 W ( Hw ) | |
黑色 ( Black ) | 霍尔电源负 ( GND ) | |
UL2464 AWG16 | 黄色 ( Yellow ) | U相 ( Phase U ) |
红色 ( Red ) | V相 ( Phase V ) | |
黑色 ( Black) | W相 ( Phase W ) |
