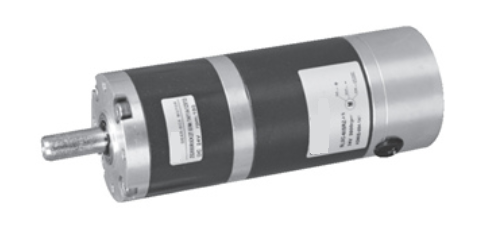

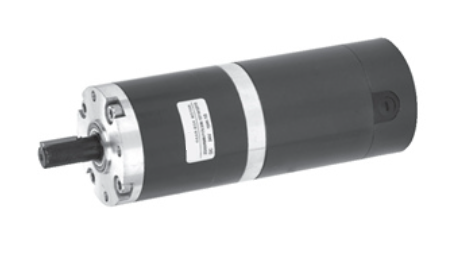

Household Appliances Use Low-noise BLDC 60 Series Gearbox Motors

The main technical parameters of the motor:

1、 Rated voltage（DC）：12V，24V，48V，72V，110V

2、 Motor Outline Dimension（mm）: φ22~82mm

3、Motor Speed（rpm）:1500, 2000, 2500, 3000, 3500, 4000, 4500;

4、Gear Reduction Ration: 3~200;

5、Power（W）：15, 20, 40，60, 90，120, 200，400, 750， 900， 1000， 1500；

6、Rated Torque (N.m): 0.14~60N.m

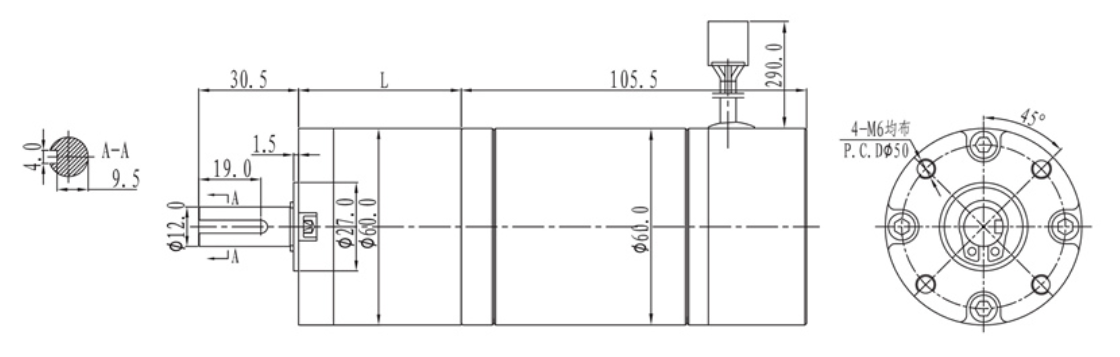

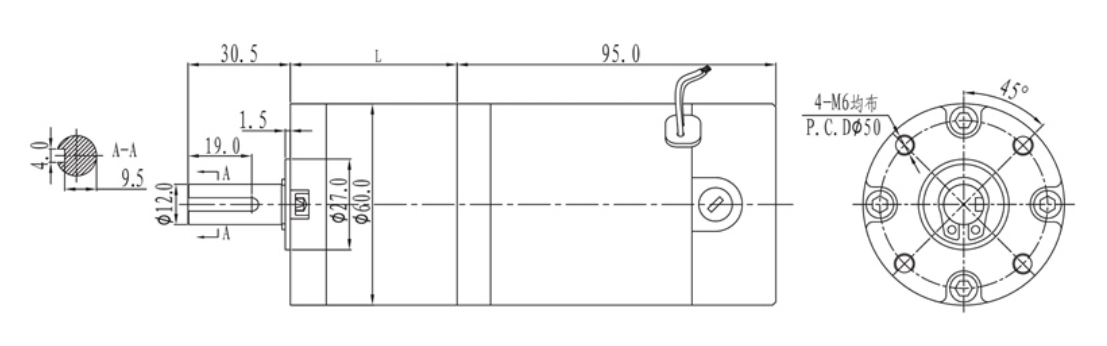

Motor dimensions( Unit: Mm)

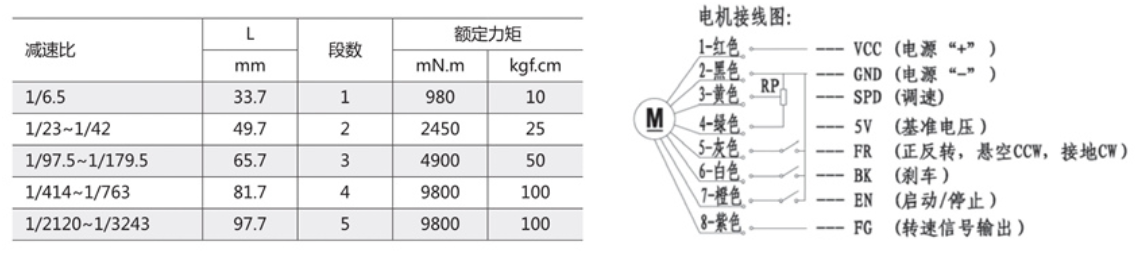

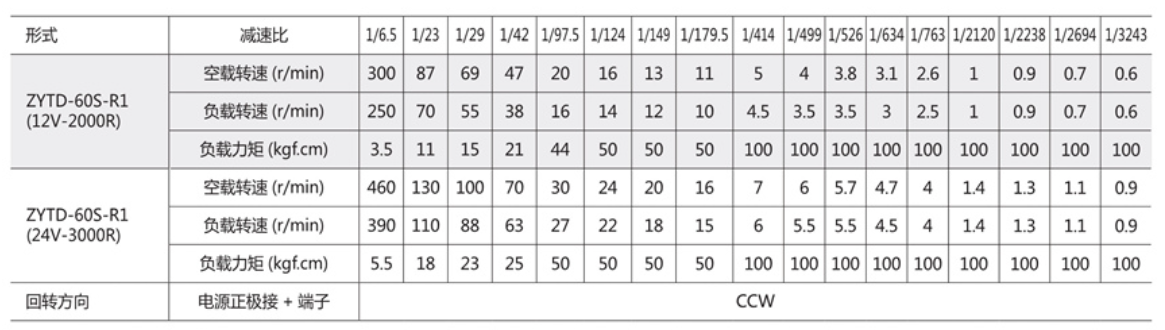

Technical parameters of the reduction gearbox

reduction gearbox length(unit:mm)

Applications

The home appliance industry requires products with long lifespan, leading prices, and low noise.

Brushless motors have a wide range of applications.

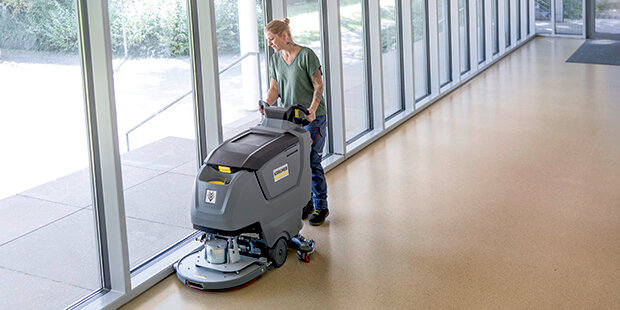

• Some are closely related to our daily lives, such as blenders, vacuum cleaners, floor scrubbers, and portable car air pumps;

• others are used by children in toys like electric scooters and electric bicycles;

• still others are used by model aircraft enthusiasts in products like drones, aerial photography equipment, and model boats;

• still others are used in computer air-cooling systems, paper shredders, electric bicycles, cameras, electric fans, refrigerators,

• air conditioners, electric car doors, various types of fans, and water pumps.

FAQ

Q1: What are our main products?

A: We mainly produce planetary (square) DC gear motors, brushless DC motors, resolvers, NEMA motors, hydraulic DC motors, automatic door motors, etc. You can view the specifications of the above products on our website, or you can recommend products according to your specifications to us via email.

Q2: How to choose the right motor?

A: If you have pictures or drawings of motors to show us, or if you have detailed specifications such as voltage, speed, torque, motor size, operating mode, required lifespan, and noise level, please don't hesitate to let us know. Then we can recommend a suitable motor based on your requirements.

Q3.How is your product quality?

A: All our products are brand new and original (we have spare materials for standard products). We will conduct random checks on incoming materials and full inspections on every finished product to ensure that it meets quality standards before shipping it to you. We will provide a factory inspection report for your traceability.

Q4: Do you offer customization services or personalized designs for standard motors?

A: Yes, we can customize voltage, speed, torque, and shaft size/shape according to your requirements. We can also do this if you need to solder additional wires/cables to the terminals, or add connectors, capacitors, or EMC.

Additionally, we can provide individual design services, but this may incur some mold development costs.

Q5：Can I use my own logo or design on the products?

A: Yes,we provide OEM/ODM services;your logo and design can be applied to the products.

Q6.What are the advantages of your company?

A：Strong R&D and innovation capabilities, efficient production and logistics management, excellent customer service, rich industry experience, unique market positioning, strong corporate culture and team cohesion.We can quickly match you with equipment parts of the exact same model,which improves your procurement efficiency。

Q7: What is your delivery time?

A: Generally, our standard products take 25 days, and customized products take longer（40 days）. However, we are very flexible with delivery times, which will depend on the specific order details.

Please contact our sales team for details regarding model naming.
