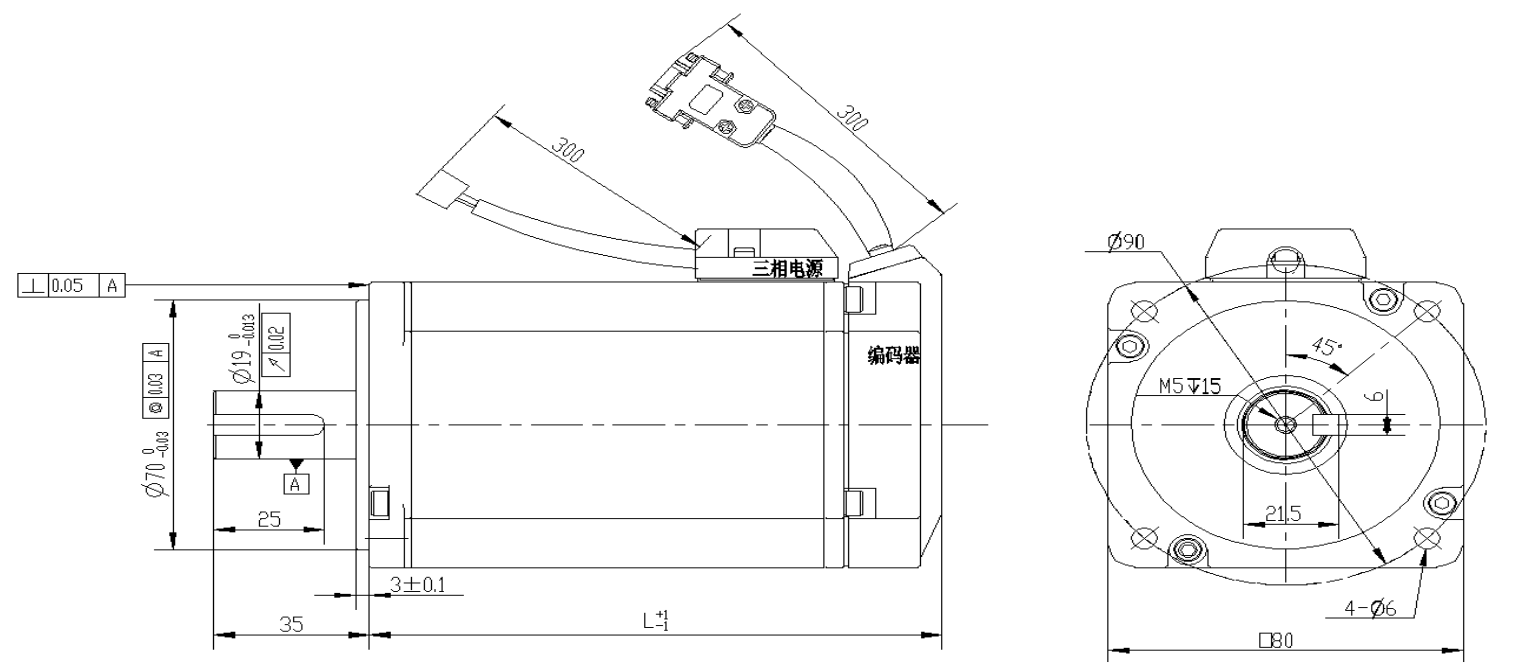

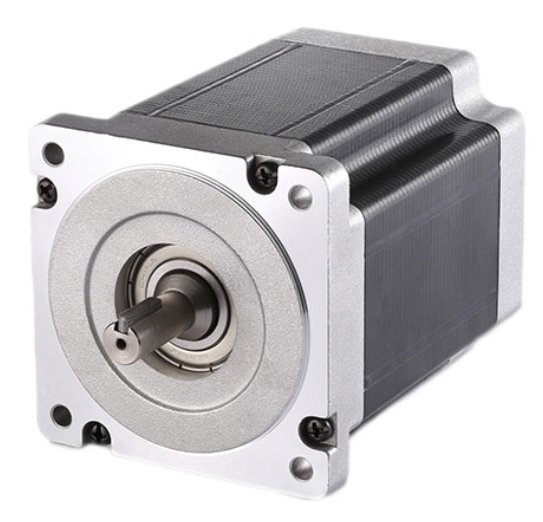

Motor size( unit: mm)■80series
| Motor data | Unit | ST80BLG75 | ST80BLG100 | ||
Number of poles | 10 | ||||
Number of phases | 3 | ||||
Rated voltage | VDC | 310 | 48 | 310 | 48 |
Rated torque | N.m | 2.39 | 2.39 | 3.18 | 3.18 |
Continuous stall torque | N.m | 2.86 | 2.86 | 3.81 | 3.81 |
Rated speed | RPM | 3000 | 3000 | 3000 | 3000 |
Rated power | W | 750 | 750 | 1000 | 1000 |
Peak torque | N.m | 7.14 | 7.14 | 9.6 | 9.6 |
Peak current | A | 13.2 | 73.5 | 17.7 | 90 |
Line to line resistance | ohms@20℃ | 4.09 | 0.089 | 2.8 | 0.069 |
Line to line inductance | mH | 12.6 | 0.275 | 8.67 | 0.208 |
Torque constant ) | Nm/A | 0.736 | 0.115 | 0.736 | 0.115 |
Back EMF | Vrms/KRPM | 54.5 | 8.5 | 54.5 | 8.5 |
Rotor inertia | kg.cm2 | 1.56 | 1.56 | 2.22 | 2.22 |
Motor length L | mm | 112 | 118 | 129 | 135 |
Pin No | 引出线型号Type | 引出线颜色Color | 功能Functions |
5 | AWG26 | 红色 ( Green ) | 霍尔电源正 ( Vcc ) |
1 | 蓝色 ( Blue) | 霍尔 U ( Hu ) | |
2 | 绿色 ( Green ) | 霍尔 V ( Hv ) | |
3 | 白色 ( White ) | 霍尔 W ( Hw ) | |
4 | 黑色 ( Black ) | 霍尔电源负 ( GND ) | |
1 | 3*AWG16(13)+2*AWG20（红+白） | 黄色 ( Yellow ) | U相 ( Phase U ) |
2 | 红色 ( Red) | V相 ( Phase V ) | |
3 | 黑色 ( Black ) | W相 ( Phase W ) |
