Moisture-proof BLDC 86 Series Motor for Textile Machines

Model:
BLDC 86 Series
Brand:
start-motors
Code:
0128

Availability:

Quantity:



Inquire Add to Basket

Product Description

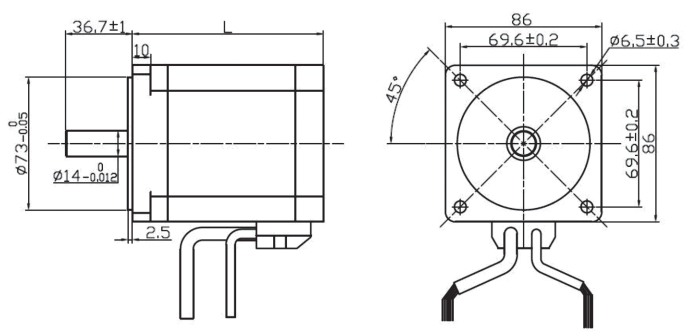

Motor size( unit: mm)■86BLC series

86BLC马达图纸

Electrical Specifications■86BLC series

Motor data	Unit	ST86BLC64	ST86BLC77	ST86BLC105	ST86BLC125
Number of poles		8
Number of phases		3
Rated voltage	VDC	48
Rated torque	N.m	0.4	0.8	1.6	2.22
Continuous stall torque	N.m	0.48	0.96	1.92	2.66
Rated speed	RPM	3000	3000	3000	3000
Rated power	W	130	250	500	700
Peak torque	N.m	1.2	2.4	4.8	6.66
Peak current	A	10	17	36	51
Line to line resistance	ohms@20℃	1	0.34	0.14	0.1
Line to line inductance	mH	1.4	0.6	0.36	0.24
Torque constant	N.m/A	0.122	0.149	0.135	0.131
Back EMF	Vrms/KRPM	9	11	10	9.7
Rotor inertia	g.cm2	400	800	1600	2400
Motor length ) L	mm	64	77	105	125
Weight	Kg	1.5	1.85	2.7	4

Electric Connection:■86BLCseries

引出线型号Type

引出线颜色Color

功能Functions

UL1430 AWG24

红色 ( Red )

霍尔电源正 ( Vcc )

蓝色 ( Blue )

霍尔 U ( Hu )

绿色 ( Green )

霍尔 V ( Hv )

白色 ( White )

霍尔 W ( Hw )

黑色 ( Black )

霍尔电源负 ( GND )

UL1332 AWG16

黄色 ( Yellow )

U相 ( Phase U )

红色 ( Red )

V相 ( Phase V )

黑色 ( Black)

W相 ( Phase W )

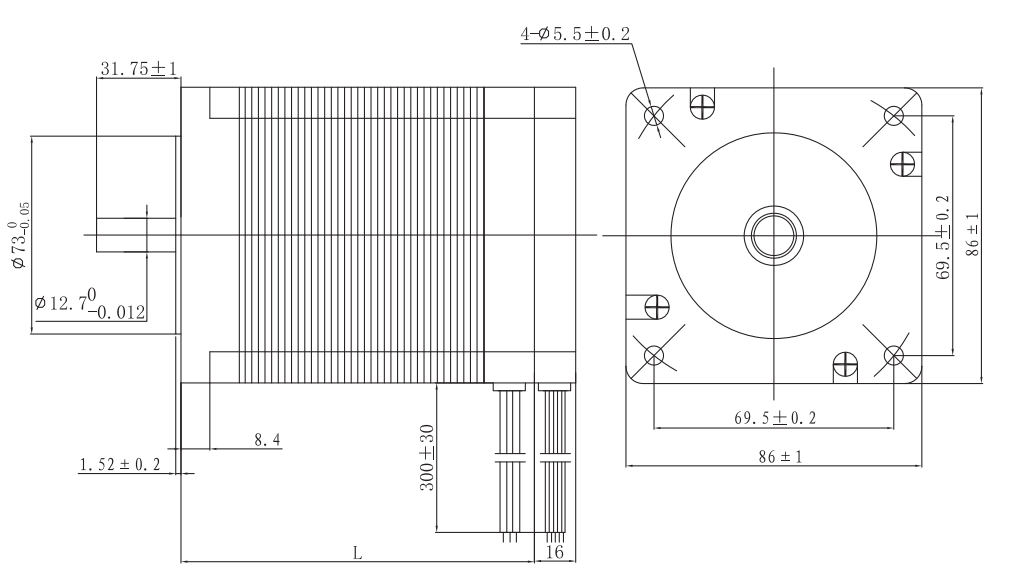

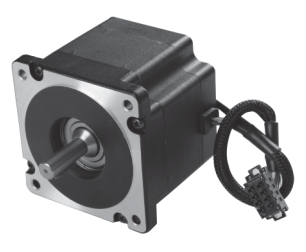

Motor size( unit: mm)■86BLS series

1751607142302

Electrical Specifications■86BLS series

Motor data	Unit	ST86BLS58	ST86BLS71	ST86BLS84	ST86BLS98	ST86BLS125
Number of poles		8
Number of phases		3
Rated voltage	VDC	48
Rated torque	N.m	0.35	0.7	1.05	1.4	2.1
Continuous stall torque	N.m	0.42	0.84	1.26	1.68	2.52
Rated speed	RPM	3000	3000	3000	3000	3000
Rated power	W	110	220	330	440	660
Peak torque	N.m	1.05	2.1	3.15	4.2	6.3
Peak current	A	9.5	17.5	25	33.5	50
Line to line resistance	ohms@20℃	0.9	0.34	0.2	0.16	0.1
Line to line inductance	mH	2.6	1	0.66	0.5	0.31
Torque constant	N.m/A	0.116	0.122	0.127	0.127	0.128
Back EMF	Vrms/KRPM	8.6	9	9.4	9.4	9.5
Rotor inertia	g.cm2	400	800	1200	1600	2400
Motor length ) L	mm	56	70	84	96	123
Weight	Kg	1.6	2.12	2.64	3.15	4.2

Electric Connection:■86BLS series

引出线型号Type	引出线颜色Color	功能Functions
UL1332 AWG22	红色 ( Red )	霍尔电源正 ( Vcc )
	蓝色 ( Blue )	霍尔 U ( Hu )
	绿色 ( Green )	霍尔 V ( Hv )
	白色 ( White )	霍尔 W ( Hw )
	黑色 ( Black )	霍尔电源负 ( GND )
UL1332 AWG18	黄色 ( Yellow )	U相 ( Phase U )
	红色 ( Red )	V相 ( Phase V )
	黑色 ( Black)	W相 ( Phase W )
