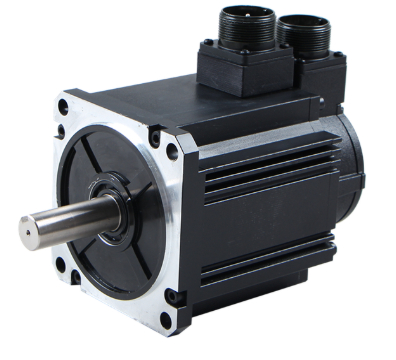

Square BLDC 110 Series
start-motors
0130
| Quantity: | |
|---|---|
Motor size( unit: mm)■110 series
| Motor Data | Unit | ST100BLG10 | ST100BLG15 | ||
Number of poles | 10 | ||||
Number of phases | 3 | ||||
Rated voltage | VDC | 310 | 48 | 310 | 48 |
Rated torque | N.m | 3.18 | 3.18 | 4.77 | 4.77 |
Continuous stall torque | N.m | 3.81 | 3.81 | 5.72 | 5.72 |
Rated speed | RPM | 3000 | 3000 | 3000 | 3000 |
Rated power | W | 1000 | 1000 | 1500 | 1500 |
Peak torque | N.m | 7 | 7 | 10.5 | 10.5 |
Peak current | A | 13.7 | 84.3 | 20.6 | 121 |
Line to line resistance | ohms@20℃ | 0.82 | 0.022 | 0.54 | 0.015 |
Line to line inductance | mH | 7.4 | 0.2 | 5.2 | 0.15 |
Torque constant ) | Nm/A | 0.51 | 0.083 | 0.51 | 0.087 |
Back EMF | Vrms/KRPM | 38 | 6.18 | 38 | 6.48 |
Rotor inertia | kg.cm2 | 1.3 | 1.3 | 1.84 | 1.84 |
Motor length ) L | mm | 137 | 142 | 159 | 164 |
Weight | kg | 3.73 | 3.8 | 4.7 | 4.8 |
Electric Connection■110 series
Pin No | 引出线型号Type | 引出线颜色Color | 功能Functions |
5 | UL1332 AWG26 | 绿色 ( Green ) | 霍尔电源正 ( Vcc ) |
1 | 黄色 ( Yellow ) | 霍尔 U ( Hu ) | |
2 | 棕色 ( Brown ) | 霍尔 V ( Hv ) | |
3 | 灰色 ( Gray ) | 霍尔 W ( Hw ) | |
4 | 蓝色 ( Blue ) | 霍尔电源负 ( GND ) | |
1 | Free | 黄色 ( Yellow ) | U相 ( Phase U ) |
2 | 红色 ( Red) | V相 ( Phase V ) | |
3 | 黑色 ( Black ) | W相 ( Phase W ) |
Motor size( unit: mm)■110 series
| Motor Data | Unit | ST100BLG10 | ST100BLG15 | ||
Number of poles | 10 | ||||
Number of phases | 3 | ||||
Rated voltage | VDC | 310 | 48 | 310 | 48 |
Rated torque | N.m | 3.18 | 3.18 | 4.77 | 4.77 |
Continuous stall torque | N.m | 3.81 | 3.81 | 5.72 | 5.72 |
Rated speed | RPM | 3000 | 3000 | 3000 | 3000 |
Rated power | W | 1000 | 1000 | 1500 | 1500 |
Peak torque | N.m | 7 | 7 | 10.5 | 10.5 |
Peak current | A | 13.7 | 84.3 | 20.6 | 121 |
Line to line resistance | ohms@20℃ | 0.82 | 0.022 | 0.54 | 0.015 |
Line to line inductance | mH | 7.4 | 0.2 | 5.2 | 0.15 |
Torque constant ) | Nm/A | 0.51 | 0.083 | 0.51 | 0.087 |
Back EMF | Vrms/KRPM | 38 | 6.18 | 38 | 6.48 |
Rotor inertia | kg.cm2 | 1.3 | 1.3 | 1.84 | 1.84 |
Motor length ) L | mm | 137 | 142 | 159 | 164 |
Weight | kg | 3.73 | 3.8 | 4.7 | 4.8 |
Electric Connection■110 series
Pin No | 引出线型号Type | 引出线颜色Color | 功能Functions |
5 | UL1332 AWG26 | 绿色 ( Green ) | 霍尔电源正 ( Vcc ) |
1 | 黄色 ( Yellow ) | 霍尔 U ( Hu ) | |
2 | 棕色 ( Brown ) | 霍尔 V ( Hv ) | |
3 | 灰色 ( Gray ) | 霍尔 W ( Hw ) | |
4 | 蓝色 ( Blue ) | 霍尔电源负 ( GND ) | |
1 | Free | 黄色 ( Yellow ) | U相 ( Phase U ) |
2 | 红色 ( Red) | V相 ( Phase V ) | |
3 | 黑色 ( Black ) | W相 ( Phase W ) |
