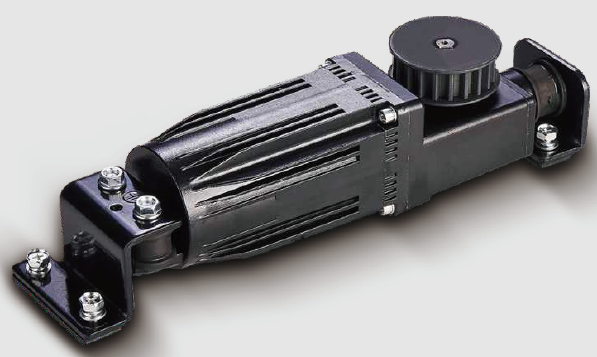

12 Slots 80W And 12 Slots 100W Square Motor

  • YFS180B/12-YFS200B/12

  • start-motors

  • 059

Availability:
Quantity:
Inquire Add to Basket


1、Model：YFS180B/12
Product name 12 slots 80W Square Motor Rated Current 3.4A
Model YFS180B/12 Rated Speed 2800RPM
Color Nature, Black, Customize No-load speed 234RPM
Number of stator slots 12 Gear Ratio 1:12
Magnetic Poles 4 pairs Rated torque with Gearbox 0.55Nm
Motor Pulley S8M powder matallurgy Stall Torque without Gearbox 0.75N.m
Rated Voltage DC24V Motor Socket JST/ELP-09V

Rated Power

80W

 IP Level

IP54


2、Model：YFS200B/12
Product name 12 slots 100W Square Motor Rated Current 4.2A
Model YFSL200B/12 Rated Speed 3100RPM
Color Nature, Black, Customize No-load speed 260RPM
Number of stator slots 12 Gear Ratio 1:12
Magnetic Poles 4 pairs Rated torque with Gearbox 0.65Nm
Motor Pulley S8M powder matallurgy Stall Torque without Gearbox 0.9N.m
Rated Voltage DC24V Motor Socket JST/ELP-09V

Rated Power

100W

 IP Level

IP54



fe9d09f8-aa15-4f4e-87a2-8c1f53094d8a



b0d553f4-4273-45b7-9f61-5076182b5f34
