12 Slots 100W Direct-drive And 6 Slots Direct-drive Square Automatic Door Motor

  • YFSL200B/12——YFSL150A/6

  • start-motors

  • 060

Availability:
Quantity:
Inquire Add to Basket

1、Model：YFSL200B/12
Product name 12 slots 100W direct-drive Square Motor Rated Current 4.2A
Model YFSL200B/12 Rated Speed 3100RPM
Color Nature, Black, Customize No-load speed 130RPM
Number of stator slots 12 Gear Ratio 1:24
Magnetic Poles 4 pairs Rated torque with Gearbox 0.65Nm
Motor Pulley S8M powder matallurgy Stall Torque without Gearbox 0.9N.m
Rated Voltage DC24V Motor Socket JST/ELP-09V

Rated Power

100W

 IP Level

IP54


2、Model：YFSL150A/6
Product name 6 slots direct-drive Square Motor Rated Current 2.5A
Model YFSL150A/6 Rated Speed 2300RPM
Color Nature, Black, Customize No-load speed 144RPM
Number of stator slots 6 Gear Ratio 1:16
Magnetic Poles 4 pairs Rated torque with Gearbox 0.45Nm
Motor Pulley S8M powder matallurgy Stall Torque without Gearbox 0.65N.m
Rated Voltage DC24V Motor Socket JST/ELP-09V

Rated Power

60W

 IP Level

IP54

9e23344a-27fe-48c4-8946-f644aca198ea


2cda253f-2130-467c-a14a-e8e4493a6e2a


Previous:
Next:
Customizable Sliding Door Operator Automatic swing door motor Automatic door operator BLDC square motor DC24V Gearbox motor 24V DC brushless gearbox motor Brushless DC motor automatic door motor

Related Products

120 Type And 12 Slots Square Base Square Motor
120 Type And 12 Slots Square Base Square Motor
6 Slots Square Base Square Motor And 120 Type Round Base Concave Square Motor
6 Slots Square Base Square Motor And 120 Type Round Base Concave Square Motor
12 Slots And 6 Slots Round Base Concave Square Motor
12 Slots And 6 Slots Round Base Concave Square Motor
120 Type And 12 Slots Round Base Square Motor
120 Type And 12 Slots Round Base Square Motor

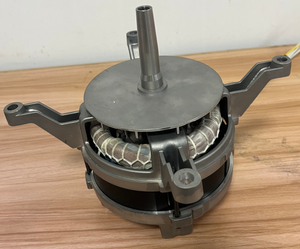

Oven Motor Used in Stainless Steel Oven
