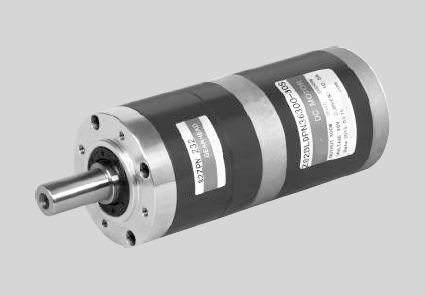

Anti-vibration BLDC Planetary Gear Φ82 Series for Logistics Equipment

Features of our planetary geared motors:

• Low noise, long lifespan, and precise control.;（pure copper wire, gear hobbing）

• High torque, fast response, and high precision; (U/V/W, and HALL）

• High reliability and strong anti-interference ability;

• High efficiency, high torque, and can work continuously for a long time.

Motor and gearbox structural dimensions

Product application areas:

1. Industrial Automation:

   Brushless DC geared motors are commonly used in various industrial automation equipment, such as automatic conveyor belts and robotic arms. These motors provide stable power output and allow for precise speed and position control as needed. Furthermore, their high efficiency and long lifespan reduce maintenance costs and improve the overall performance of the system.




2. Medical Equipment:

   In the field of medical devices, brushless DC geared motors are widely used in surgical instruments, dialysis machines, and X-ray machines due to their high precision and reliability. These motors ensure the smooth and accurate operation of the equipment, which is crucial for improving the accuracy of diagnosis and treatment.




    3. Security equipment:

         Brushless DC geared motors are also used in security cameras and other monitoring equipment to provide precise           rotation and translation control, ensuring the smoothness and clarity of the monitoring images.

Issues in Selecting a Planetary Brushless Gear Motor （FAQ）

Q1. Rated Torque and Peak Torque

Rated Torque: The maximum torque for long-term stable operation (must be ≥ 1.2 times the load torque to avoid overload).

Peak Torque: The maximum torque that can be withstood for short periods (such as starting and braking) (must be ≥ 1.5 times the instantaneous load).

Q2. Reduction Ratio and Output Speed

Reduction Ratio = Motor Speed ÷ Output Speed (e.g., if the motor speed is 3000 rpm and the required output speed is 30 rpm, then the reduction ratio = 100:1).

The output speed must match the equipment requirements (e.g., conveyor belts typically operate at 5-50 rpm, robot joints at 100-500 rpm).

Q3. Power Supply and Power

Voltage: Commonly 12V, 24V,48V, 72V (low DC, suitable for civilian equipment), 110V, 220V, 380V (high industrial voltage).

Power: Estimated based on "Power = Torque × Speed ÷ 9550", ensuring sufficient power reserve.

Q4. Accuracy and Control Method

Normal Scenarios: Open-loop control with Hall effect sensors (low cost).

High-precision Scenarios: Closed-loop speed regulation with encoders (e.g., incremental, absolute) (accuracy up to ±0.5%).

Q5.  Installation and Environment

Installation Dimensions: Flange diameter and shaft diameter must match the equipment (e.g., 80mm flange, 12mm output shaft).

Protection Rating: IP54 or higher (dustproof and waterproof) for outdoor or humid environments; ≥80℃ for high-temperature environments.

Please contact our sales team for details regarding model naming.
