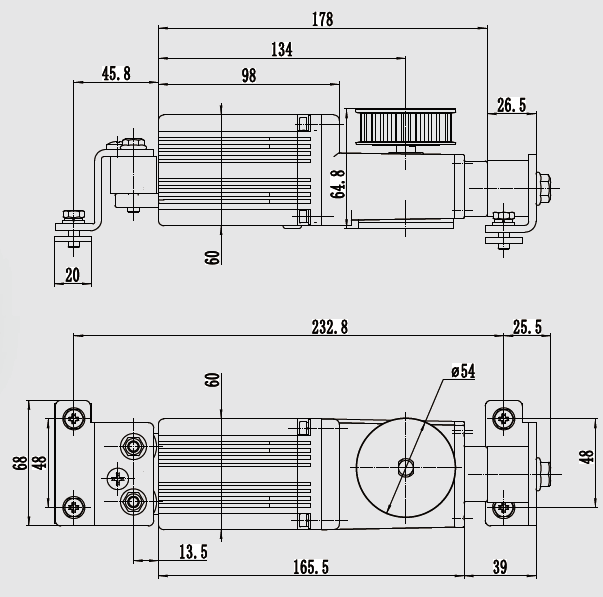

YFS150A/6—YFS120C/12
start-motors
054
| Quantity: | |
|---|---|
1、Model: YFS150A/6
| Product name | 6 Slots Square Base Square Motor | Rated Current | 2.5A |
| Model | YFS150A/6 | Rated Speed | 2300RPM |
| Color | Nature, Black, Customize | No-load speed | 192RPM |
| Number of stator slots | 6 | Gear Ratio | 1:12 |
| Magnetic Poles | 4 pairs | Rated torque with Gearbox | 0.45Nm |
| Motor Pulley | S8M powder matallurgy | Stall Torque without Gearbox | 0.65N.m |
| Rated Voltage | DC24V | Motor Socket | JST/ELP-09V |
Rated Power | 60W | IP Level | IP54 |
2、Model: YFS150A/12
| Product name | 120 Type Round Base Concave Square Motor | Rated Current | 2.1A |
| Model | YFS120C/12 | Rated Speed | 2600RPM |
| Color | Nature, Black, Customize | No-load speed | 217RPM |
| Number of stator slots | 12 | Gear Ratio | 1:12 |
| Magnetic Poles | 4 pairs | Rated torque with Gearbox | 0.35Nm |
| Motor Pulley | S8M powder matallurgy | Stall Torque without Gearbox | 0.5N.m |
| Rated Voltage | DC24V | Motor Socket | JST/ELP-09V |
Rated Power | 50W | IP Level | IP54 |
