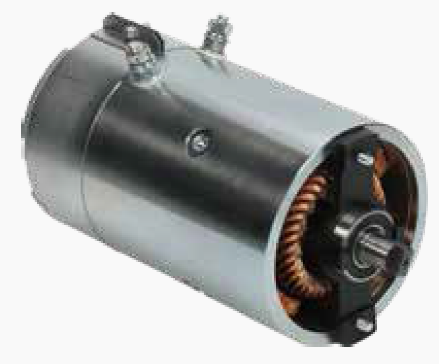

ST127-BS Series
start-motors
0106
| Quantity: | |
|---|---|
| 电机参数 Motor Data | 电机型号 Motor Model | ||||
| ZD084 | ZD062 | ZD084 | ZD086 | ||
| 额定功率 Nominal Power | kW | 3.2 | 3.2 | 3 | 3 |
| 额定电压 Nominal Voltage | V | 24 | 48 | 24 | 24 |
| 环境温度 Environmental Tempeature | °C | -20-40°C | -20-40°C | -20-40°C | -20-40°C |
| 空载转速 No-load Speed | Rpm | 7600 | 6800 | 6500 | 4200 |
| 空载电流 No-load Current | A | 35 | 20 | 25 | 20 |
| 额定负载 Nominal Torque | N.m | 9.7 | 9.7 | 10 | 10 |
| 额定转速 Nominal Speed | Rpm | 3250 | 3250 | 3000 | 2850 |
| 额定电流 Nominal Current | A | 175 | 95 | 165 | 165 |
| 工作制 Duty Cycle | S2 | 5MIN | 5MIN | 6MIN | 5MIN |
| S3 | 16%ED | 16%ED | 11%ED | 9%ED | |
| 电机转向 Motor Rotation | CW/CCW | CCW | CW | CW | CW |
| 电机噪音 Motor Noise | dBA/1m | 82 | 82 | 82 | 82 |

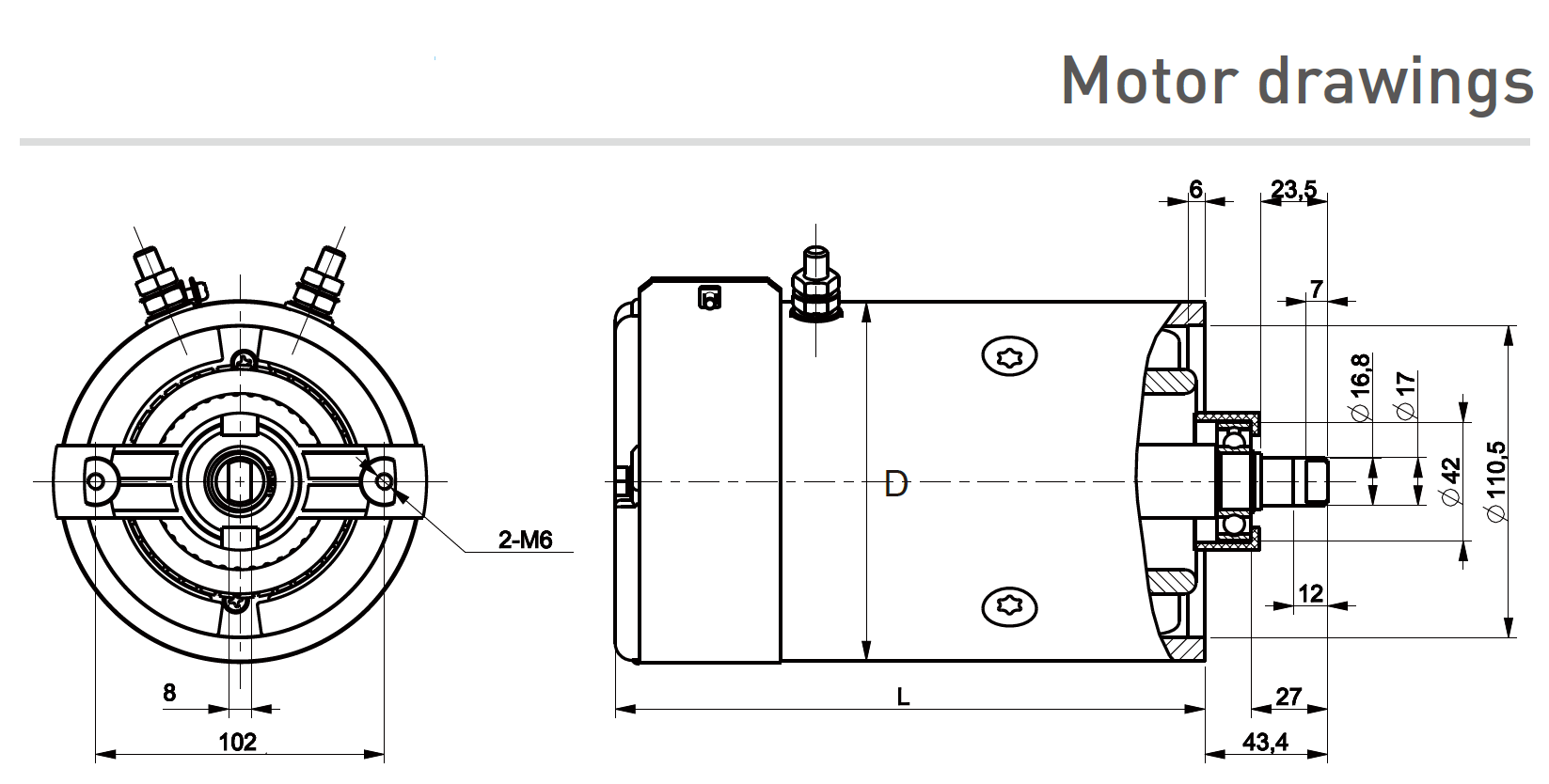

| 电机尺寸 Motor Dimension | L（mm） | 225 | 223.8 | 208.5 | 208.5 |
| D（mm） | 125 | 127 | 127 | 127 | |
| 电机重量 Motor Weight | Kg | 12 | 12 | 12 | 12 |
| 电机设计 Motor Design | |||||
| 绝缘等级 Insulation Degree | Class | F | F | F | F |
| 温控 Thermal Protection | Optional | √ | √ | √ | √ |
| 防水等级 IP Class | Class | IP21 | IP21 | IP21 | IP21 |
| 励磁方式 Excitation | Wound | 串励 Series | 串励 Series | 串励 Series | 复励 Compound |
| 振动 Vibration | mm/S | <3.8 | <3.8 | <3.8 | <3.8 |
| 绝缘强度 Insulation Resistance | MΩ | >10 | >10 | >10 | >10 |
| 电机寿命 Motor Endurance | Hrs | 800 | 800 | 800 | 800 |
| 电机参数 Motor Data | 电机型号 Motor Model | ||||
| ZD084 | ZD062 | ZD084 | ZD086 | ||
| 额定功率 Nominal Power | kW | 3.2 | 3.2 | 3 | 3 |
| 额定电压 Nominal Voltage | V | 24 | 48 | 24 | 24 |
| 环境温度 Environmental Tempeature | °C | -20-40°C | -20-40°C | -20-40°C | -20-40°C |
| 空载转速 No-load Speed | Rpm | 7600 | 6800 | 6500 | 4200 |
| 空载电流 No-load Current | A | 35 | 20 | 25 | 20 |
| 额定负载 Nominal Torque | N.m | 9.7 | 9.7 | 10 | 10 |
| 额定转速 Nominal Speed | Rpm | 3250 | 3250 | 3000 | 2850 |
| 额定电流 Nominal Current | A | 175 | 95 | 165 | 165 |
| 工作制 Duty Cycle | S2 | 5MIN | 5MIN | 6MIN | 5MIN |
| S3 | 16%ED | 16%ED | 11%ED | 9%ED | |
| 电机转向 Motor Rotation | CW/CCW | CCW | CW | CW | CW |
| 电机噪音 Motor Noise | dBA/1m | 82 | 82 | 82 | 82 |
| 电机尺寸 Motor Dimension | L（mm） | 225 | 223.8 | 208.5 | 208.5 |
| D（mm） | 125 | 127 | 127 | 127 | |
| 电机重量 Motor Weight | Kg | 12 | 12 | 12 | 12 |
| 电机设计 Motor Design | |||||
| 绝缘等级 Insulation Degree | Class | F | F | F | F |
| 温控 Thermal Protection | Optional | √ | √ | √ | √ |
| 防水等级 IP Class | Class | IP21 | IP21 | IP21 | IP21 |
| 励磁方式 Excitation | Wound | 串励 Series | 串励 Series | 串励 Series | 复励 Compound |
| 振动 Vibration | mm/S | <3.8 | <3.8 | <3.8 | <3.8 |
| 绝缘强度 Insulation Resistance | MΩ | >10 | >10 | >10 | >10 |
| 电机寿命 Motor Endurance | Hrs | 800 | 800 | 800 | 800 |
