ST127-BY Series
start-motors
0105
| Quantity: | |
|---|---|
| 电机参数 Motor Data | 电机型号 Motor Model | |||
| ZD084 | ZD086 | ZD062 | ||
| 额定功率 Nominal Power | kW | 3.2KW | 3KW | 3.2KW |
| 额定电压 Nominal Voltage | V | 24V | 24V | 48V |
| 环境温度 Environmental Tempeature | °C | -20-40°C | -20-40°C | -20-40°C |
| 空载转速 No-load Speed | Rpm | 7600 | 4200 | 6800 |
| 空载电流 No-load Current | A | 35 | 20 | 20 |
| 额定负载 Nominal Torque | N.m | 9.7 | 10 | 9.7 |
| 额定转速 Nominal Speed | Rpm | 3250 | 2850 | 3150 |
| 额定电流 Nominal Current | A | 175 | 165 | 90 |
| 工作制 Duty Cycle | S2 | 5MIN | 5MIN | 5MIN |
| S3 | 16%ED | 9%ED | 16%ED | |
| 电机转向 Motor Rotation | CW/CCW | CW | CW | CW |
| 电机噪音 Motor Noise | dBA/1m | 82 | 82 | 82 |

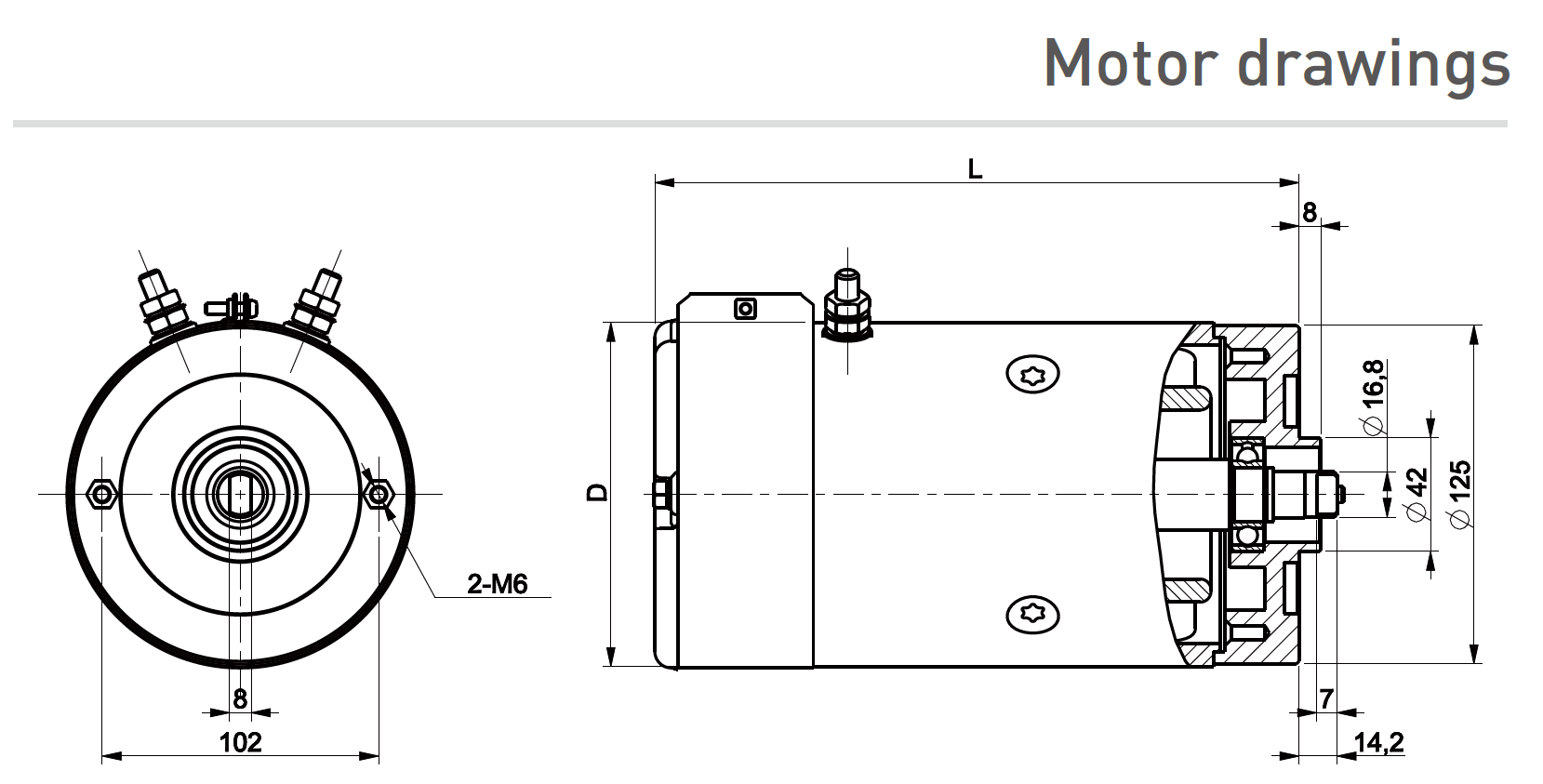

| 电机尺寸 Motor Dimension | L（mm） | 237.5 | 237.5 | 237.5 |
| D（mm） | 127 | 127 | 127 | |
| 电机重量 Motor Weight | Kg | 12 | 12 | 12 |
| 电机设计 Motor Design | ||||
| 绝缘等级 Insulation Degree | Class | F | F | F |
| 温控 Thermal Protection | Optional | √ | √ | √ |
| 防水等级 IP Class | Class | IP21 | IP54 | IP21 |
| 励磁方式 Excitation | Wound | 串励 Series | 复励 Compound | 串励 Series |
| 振动 Vibration | mm/S | <3.8 | <3.8 | <3.8 |
| 绝缘强度 Insulation Resistance | MΩ | >10 | >10 | >10 |
| 电机寿命 Motor Endurance | Hrs | 800 | 800 | 800 |

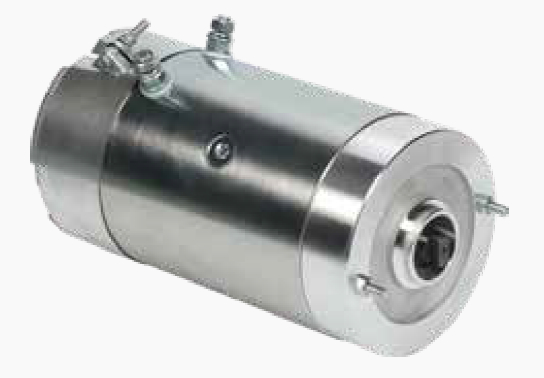

Product Name: High-precision Hydraulic DC Motor ST127-BY Series for Lathes
Application: Designed for high-precision lathes, automation machinery, and other equipment requiring precision driving systems.
Key Features:
High precision, suitable for precision machining.
Powerful torque output for smooth operation.
Efficient, low-noise design for demanding work environments.
Customization options available to meet various industry and equipment needs.
Long lifespan, high load capacity, reducing maintenance costs.
The High-precision Hydraulic DC Motor ST127-BY Series is a state-of-the-art motor designed specifically for high-precision lathes and other automated machinery. Featuring a robust hydraulic design, this motor delivers consistent torque output and reliable performance, ensuring smooth and precise operations. It is ideal for industries such as manufacturing, automotive, and aerospace, where accuracy and efficiency are critical.
Thanks to its specialized design, this motor provides exceptional performance under heavy loads, making it perfect for industries that demand high torque and reliability. Whether used in high-precision lathes or other automated systems, the ST127-BY Series is engineered to meet the demanding requirements of your production environment.
The motor is designed with durability in mind, featuring a high-performance cooling system that helps maintain optimal temperature even during extended operation. This ensures consistent performance without the risk of overheating, extending the life of your equipment and reducing downtime.
Additionally, the ST127-BY Series is available with customizable options, allowing you to tailor the motor to your specific application requirements. Whether you need adjustments in size, power, or speed, we offer flexible solutions to meet your needs.
High Precision Control: Delivers exceptional stability and precise control, making it suitable for high-precision machining applications.
Powerful Torque Output: Maximizes torque output, ensuring stable performance under load, perfect for complex production processes.
Low Noise Design: Reduces operating noise, enhancing comfort in environments that demand low sound levels.
Long Lifespan and High Load Capacity: Built with high-quality materials and designs, it can withstand prolonged heavy-duty work, reducing maintenance costs.
Flexible Customization Options: Offers various specifications, power ratings, speed settings, and mounting configurations to ensure compatibility with diverse industrial applications.
Expert Design: Our ST127-BY Series Hydraulic DC Motor is specifically designed for precision machinery, ensuring it meets the high standards of accuracy, stability, and durability required in demanding work environments.
Customization Services: We offer fully customizable options, allowing you to adjust the motor's size, power, speed, and other parameters to perfectly match your equipment needs.
Global Supply: Our products are recognized globally, with a strong market presence across industries. Through optimized production processes and supply chain management, we ensure fast delivery.
High Efficiency: With advanced engineering and strict quality control, the ST127-BY Series delivers superior performance, helping businesses boost productivity and reduce operational costs.
Exceptional After-Sales Support: We provide comprehensive technical support and long-term product warranties, ensuring your equipment is always in top condition, minimizing downtime.
Q1: What applications is this motor suitable for?
A1: The ST127-BY Series Hydraulic DC Motor is primarily used in high-precision lathes, automated systems, and precision machining equipment, especially in industries requiring consistent torque output.
Q2: How does the motor ensure long-term reliability?
A2: This motor features a high-performance cooling system, preventing overheating and maintaining consistent operation even during extended use, ensuring long-lasting reliability.
Q3: Do you offer customization options?
A3: Yes, we offer several customization options, including adjustments to the motor's size, power, speed, and installation configurations to meet your specific application needs.
Q4: What is the maximum load capacity of the motor?
A4: The ST127-BY Series is designed to handle maximum loads up to 20Nm, making it suitable for heavy-duty tasks and complex production processes.
Q5: What is the operating temperature range for this motor?
A5: The motor operates efficiently within a temperature range of -20°C to 50°C, suitable for most industrial environments.
