High-power DC Brushless Driver

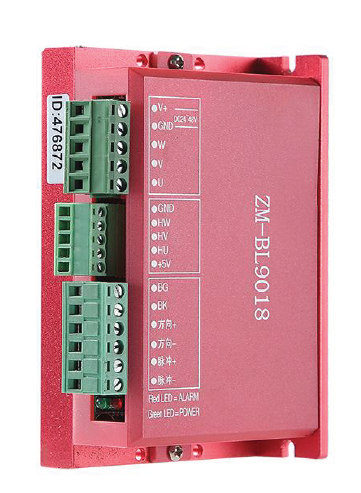

1、Model：ZM-BL9018

1. Replace the stepper motor and improve the drawback of the stepper motor having low torque at high rotational speeds.

2. The amplitudes of the pulse signal and the direction signal are +12V.

3. There are CCW and CW rotations. High voltage for CW rotation, low voltage for CCW rotation.




4. Terminal	marking	Explain
   indicator light	Green	Lights up when powered on
   	Red	Ok——OFF；Fault——ON
   Power supply or motor connection terminals	V+	Connect“+”24~48V
   	GND	Connect "—”
   	U、V、W	connect Motor U、V、W
   Brushless motor Hall	+5V	+ motor’s Hall power
   	HU	Hall sensor signal U phase input
   	HV	Hall sensor signal V phase input
   	HW	Hall sensor signal W phase input
   	GND	The motor’s Hall power supply
   Control signal terminal connector	Direction "+"	Connect 12V "+"
   	Direction "—"	Connect direction signal
   	Pulse“+”	Connect 12V "+"
   	Pulse"—”	Connect direction signal

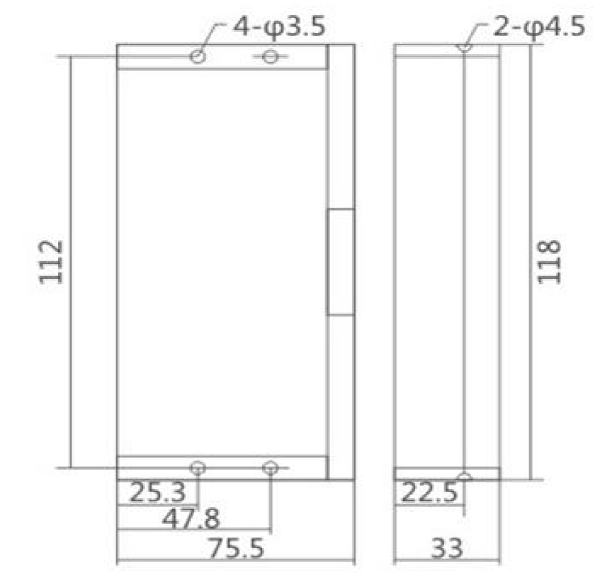

2、Outline dimension

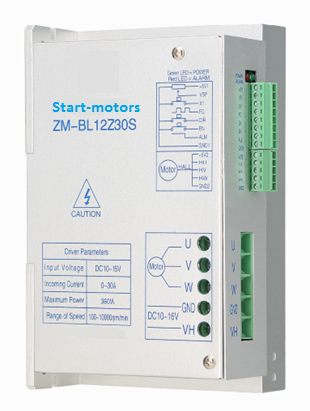

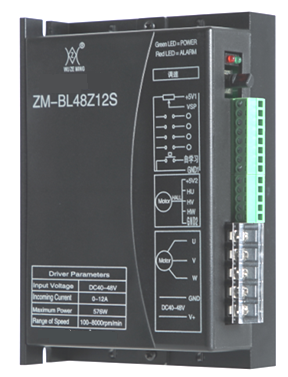

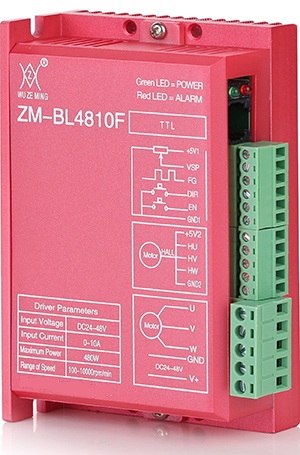

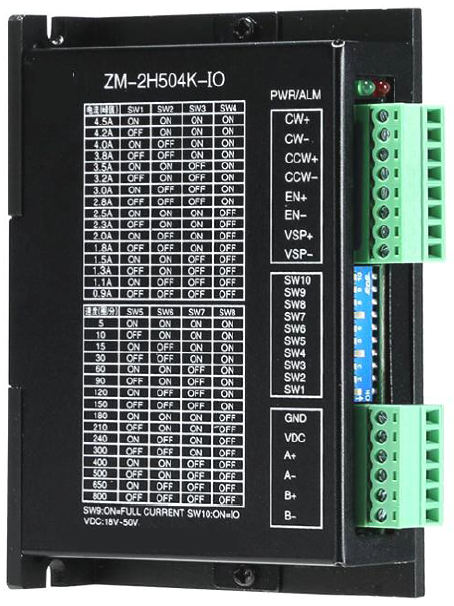

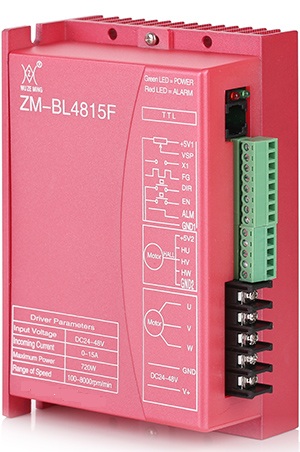

               We have several types of drives. The power and current capacity can be selected based on the actual application scenarios of the customers. It also includes the selection of installation dimensions. For more model options, please feel free to contact us at any time.
