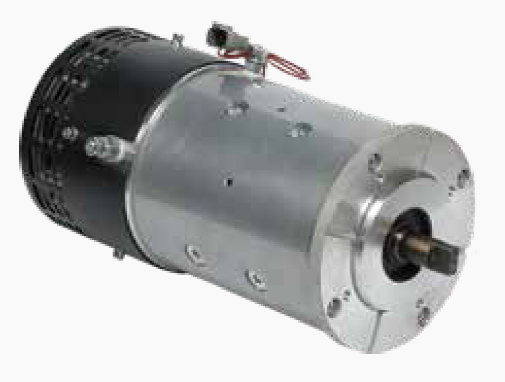

ST151.5-CE Series
start-motors
0108
| Quantity: | |
|---|---|
| 电机参数 Motor Data | 电机型号 Motor Model | ||
| ZD144 | ZD145 | ||
| 额定功率 Nominal Power | kW | 4.5 | 3 |
| 额定电压 Nominal Voltage | V | 24 | 48 |
| 环境温度 Environmental Tempeature | °C | -20-40°C | -20-40°C |
| 空载转速 No-load Speed | Rpm | 7000 | 4500 |
| 空载电流 No-load Current | A | 50 | 35 |
| 额定负载 Nominal Torque | N.m | 20 | 7.3 |
| 额定转速 Nominal Speed | Rpm | 2000 | 3900 |
| 额定电流 Nominal Current | A | 265 | 85 |
| 工作制 Duty Cycle | S2 | 4.5MIN | 10MIN |
| S3 | 12%ED | 20%ED | |
| 电机转向 Motor Rotation | CW/CCW | CW | CW |
| 电机噪音 Motor Noise | dBA/1m | 82 | 90 |

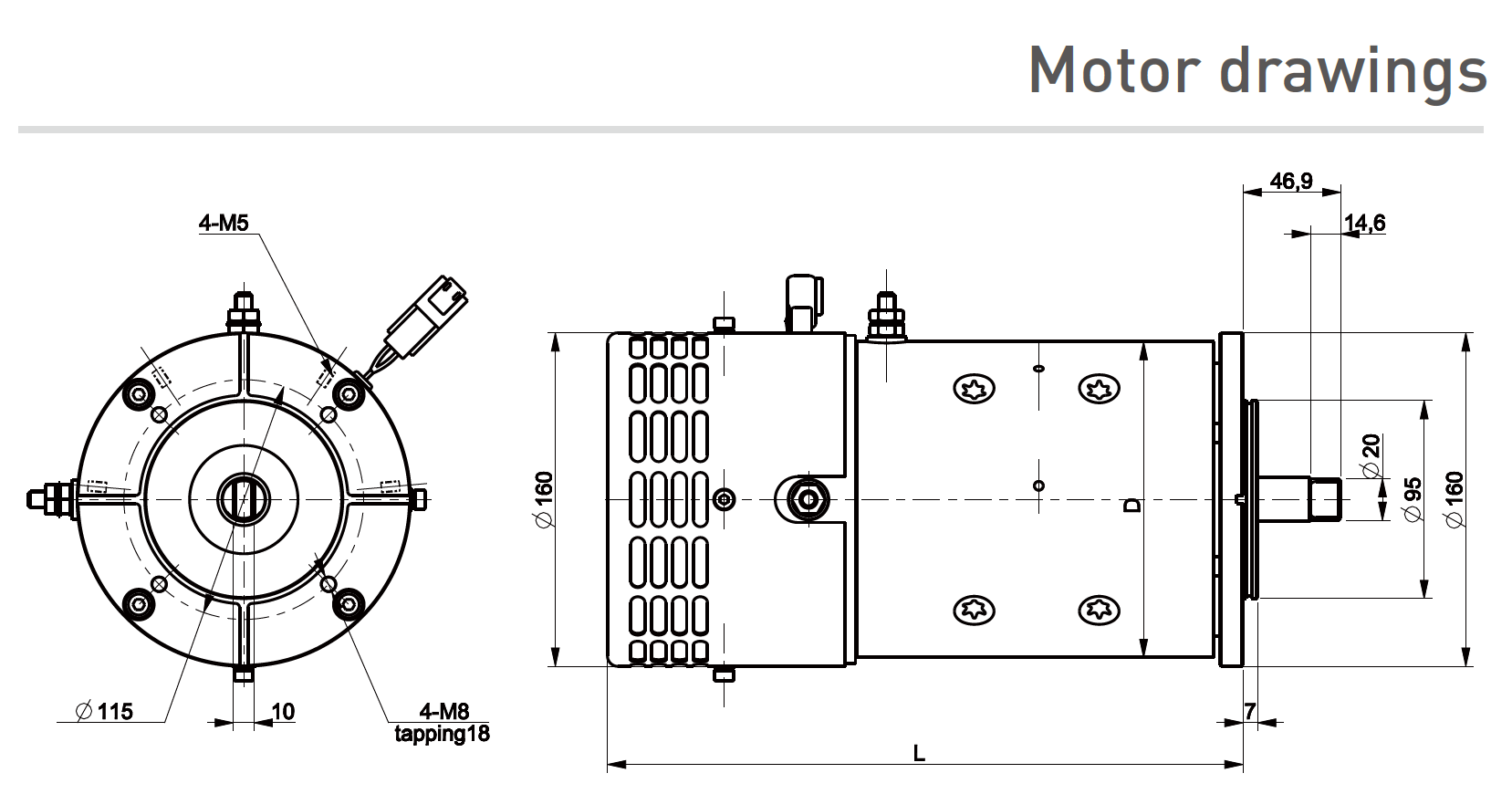

| 电机尺寸 Motor Dimension | L（mm） | 311 | 305 |
| D（mm） | 151.5 | 151.5 | |
| 电机重量 Motor Weight | Kg | 17.5 | 17.5 |
| 电机设计 Motor Design | |||
| 绝缘等级 Insulation Degree | Class | F | F |
| 温控 Thermal Protection | Optional | √ | √ |
| 防水等级 IP Class | Class | IP21 | IP21 |
| 励磁方式 Excitation | Wound | 串励 Series | 串励 Series |
| 振动 Vibration | mm/S | <5 | <5 |
| 绝缘强度 Insulation Resistance | MΩ | >10 | >10 |
| 电机寿命 Motor Endurance | Hrs | 800 | 800 |
