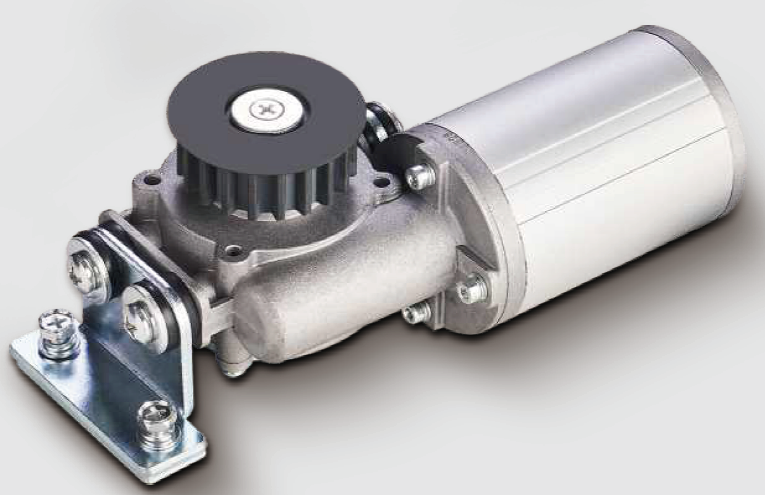

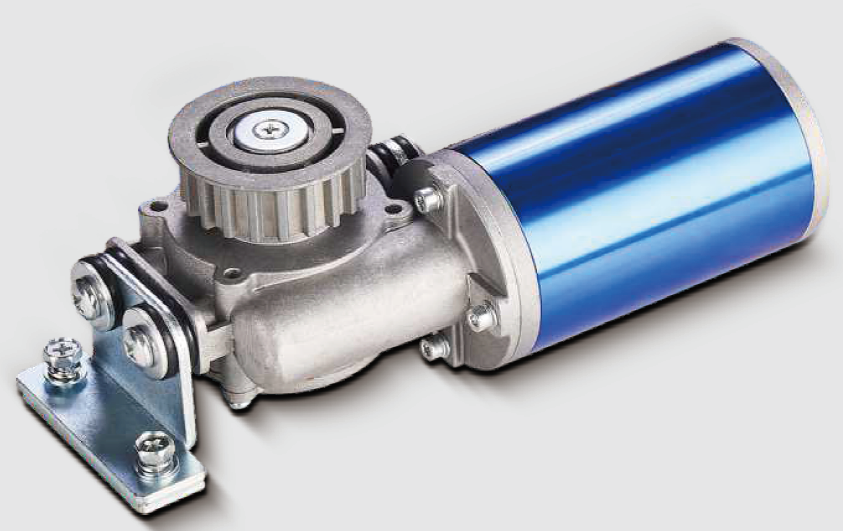

YF150/YF180 Asian Design Automatic Door Round Motor

  • YF150/YF180

  • start-motors

  • 0133

Availability:
Quantity:
Inquire Add to Basket

1、Model：YF150
Product name 6/12 slots 60W Asian design round Motor Rated Current 2.5A
Model YFS150/6/12 Rated Speed 2300/2800RPM
Color Aluminum alloy Nature, Black, Customize, Silver with slots No-load speed 154/187RPM
Number of stator slots 6/12 Gear Ratio 1:15
Magnetic Poles 4 pairs Rated torque without Gearbox 0.45Nm
Motor Pulley S8M powder matallurgy Stall Torque without Gearbox 0.65N.m
Rated Voltage DC24V Motor Socket JST/ELP-09V

Rated Power

60W

 IP Level

IP54


2、Model：YF180
Product name 90 type triangular motor Rated Current 3.3A
Model YFT120C/12 Rated Speed 2800RPM
Color Aluminum alloy Nature, Black, blue, Customize No-load speed 187RPM
Number of stator slots 12 Gear Ratio 1:15
Magnetic Poles 4 pairs Rated torque without Gearbox 0.55Nm
Motor Pulley S8M powder matallurgy Stall Torque without Gearbox 0.75N.m
Rated Voltage DC24V Motor Socket JST/ELP-09V

Rated Power

80W

 IP Level

IP54

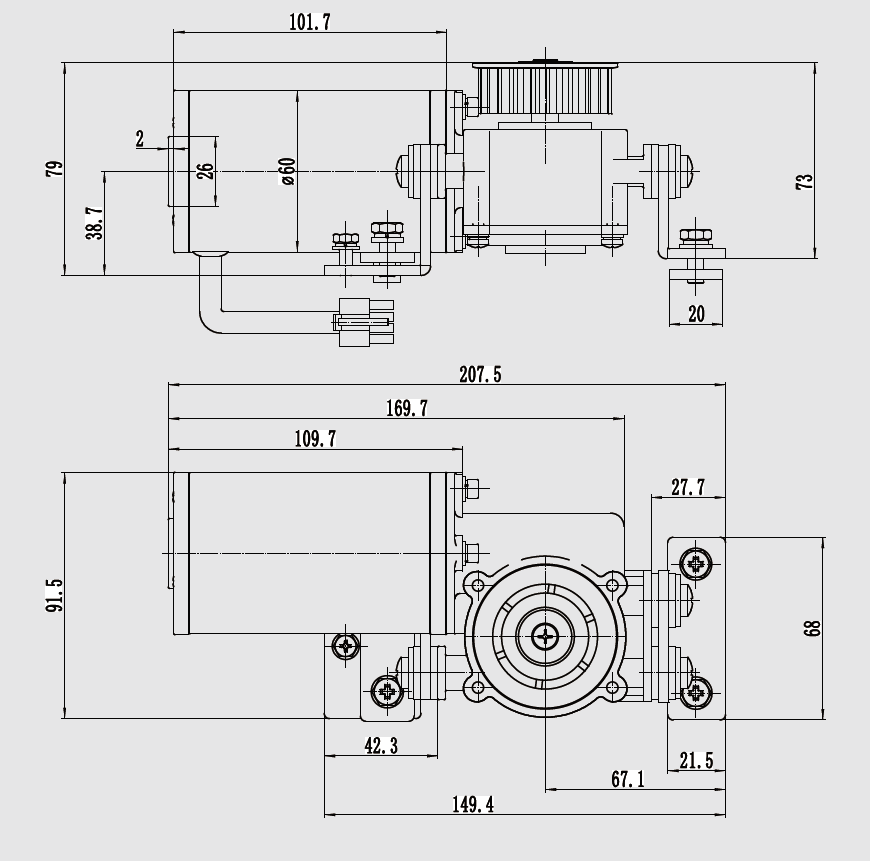

f51da2ff-e4e6-45f2-8a53-d60ea7b57f72

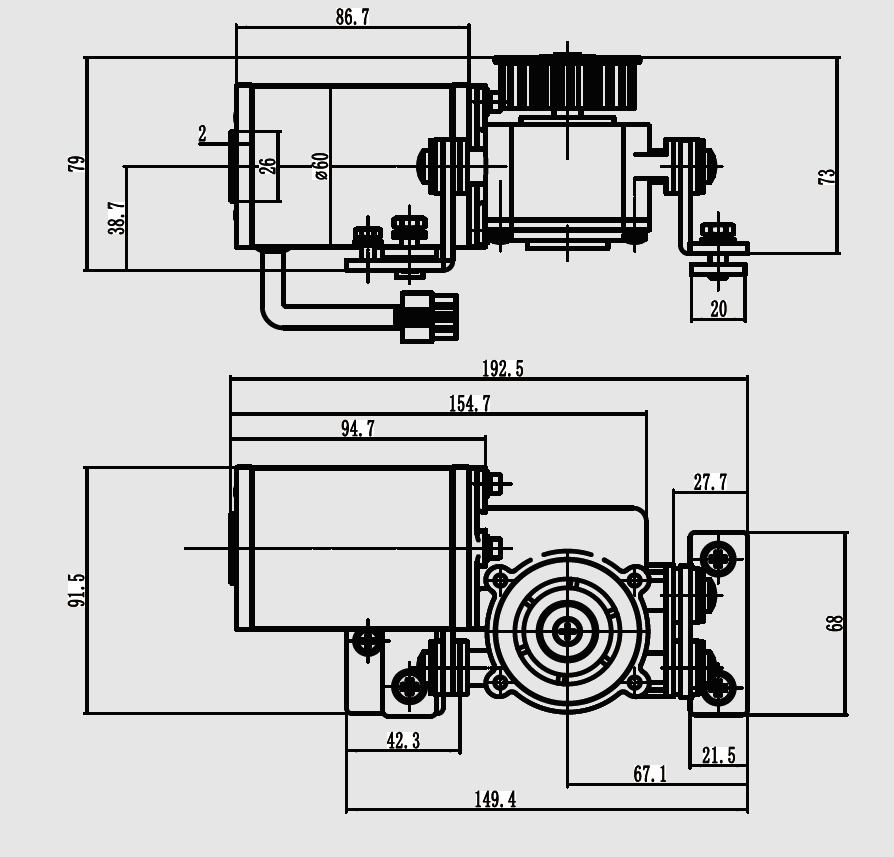

015fc21e-3fef-456f-9040-f088fd3b0f99


Previous:
Next:
Automatic door motor Office automation Automatic Sliding Door Operator Automatic DC motor dc worm gear motor Lowcost gear motor 150 type BLDC gear motor DC 24V Gearbox motor

Related Products

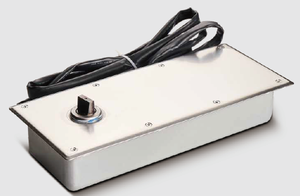

178 Type Underground / Top-mounted Spring-operated Automatic Swing Door Operator
150 Type Underground / 100 Type Top-mounted Spring-operated Automatic Swing Door Operator

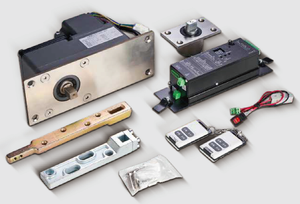

150 / 250 Type Top-mounted Spring-operated Automatic Swing Door Operator
150 / 250 Type Top-mounted Spring-operated Automatic Swing Door Operator

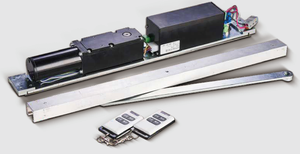

178 Type Concealed Pull-arm / Earth-axis Automatic Swing Door Operator
178 Type Concealed Pull-arm / Earth-axis Automatic Swing Door Operator

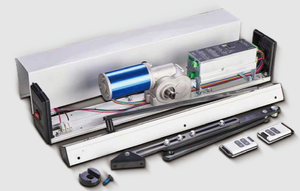

680 And 980 Type Automatic Swing Door Operator
680 And 980 Type Automatic Swing Door Operator
178 And 480 Type Automatic Swing Door Operator
178 And 480 Type Automatic Swing Door Operator

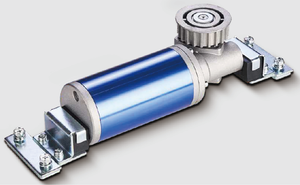

12 Slots Triangular Automatic Door Motor
12 Slots Triangular Automatic Door Motor

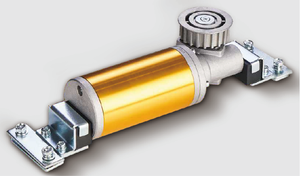

6 Slots And 90 Type Triangular Automatic Door Motor
6 Slots And 90 Type Triangular Automatic Door Motor

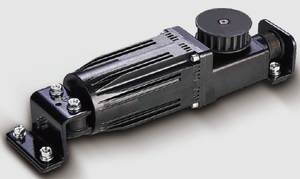

12 Slots 80W And 12 Slots 100W Square Motor
12 Slots 80W And 12 Slots 100W Square Motor

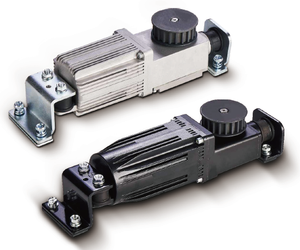

12 Slots 100W Direct-drive And 6 Slots Direct-drive Square Automatic Door Motor
12 Slots 100W Direct-drive And 6 Slots Direct-drive Square Automatic Door Motor
120 Type Direct-drive Square Motor And 6 Slots Round Base Square Motor
120 Type Direct-drive Square Motor And 6 Slots Round Base Square Motor

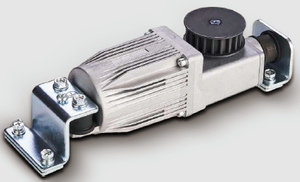

120 Type And 12 Slots Round Base Square Motor
