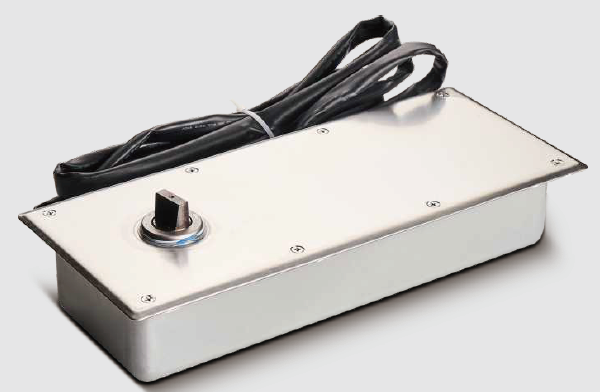

150 Type Underground / 100 Type Top-mounted Spring-operated Automatic Swing Door Operator

  • BFHS150—BFPM100

  • start-motors

  • 066

Availability:
Quantity:
Inquire Add to Basket


1、Model：BFHS150 product parameters
Product name 150 Type Underground Automatic Swing Door operator Max door widit 1200mm
Model BFHS150 Max door weight 150KG
Motor 24V Brushless DC motor Spread of axles 75mm
Application Environment Indoor Size 364X152X70mm
Operning direction One-way opening Weight 6.8KG
Max torque 70N.m IP Level IP 54


2、Model：BFPM100 product parameters
Product name 100 Type Top-mounted Spring-operated Automatic Swing Door operator Controller size 155X65X85mm
Model BFPM100 Max door weight 100KG
Max door width 1000mm Spread of axles 30mm
Application Environment Indoor Size 480X50X50mm
Operning direction One-way opening Weight 3.5KG
Max torque 20N.m IP Level IP 54

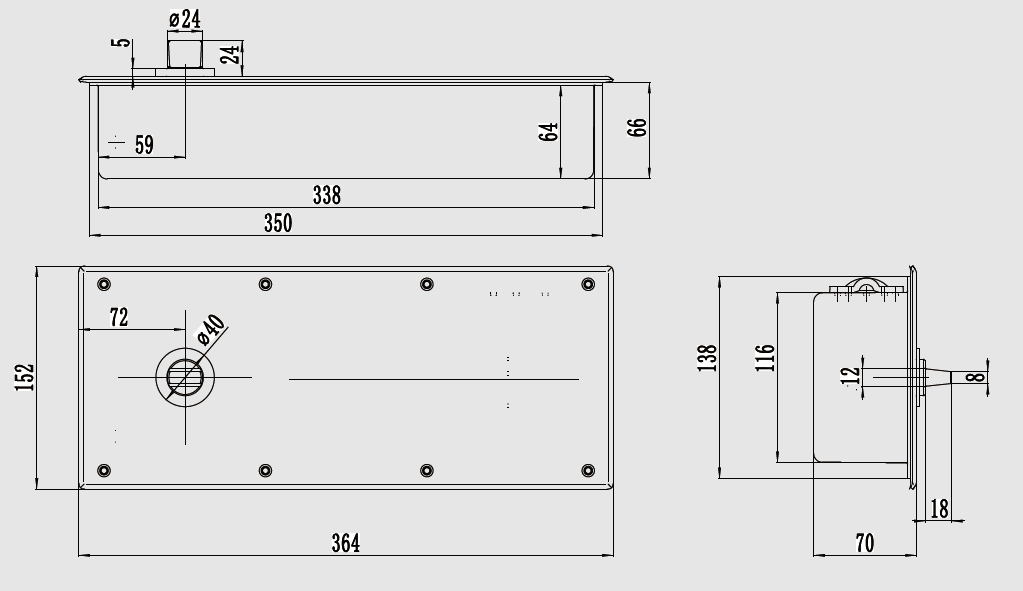

f111c1af-4922-420e-8dd8-70b0d606a876

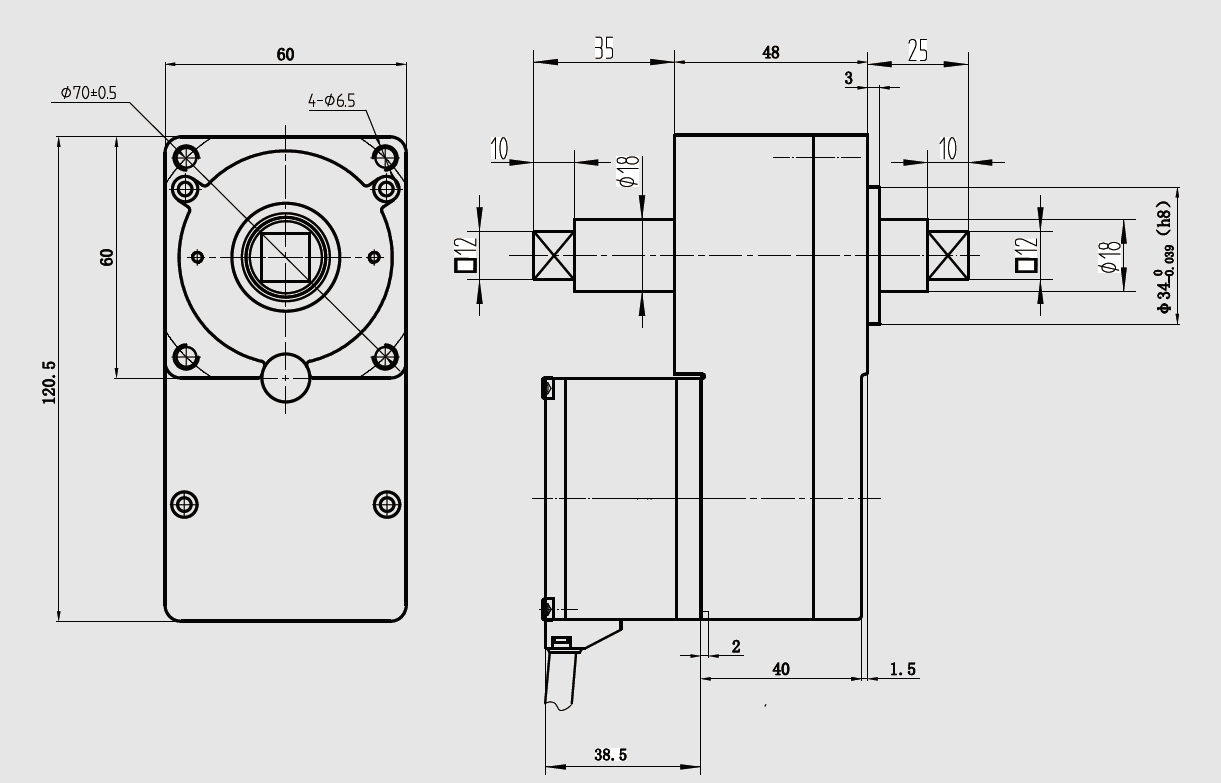

77346855-add3-42cf-8f0d-c51fbac2744e
