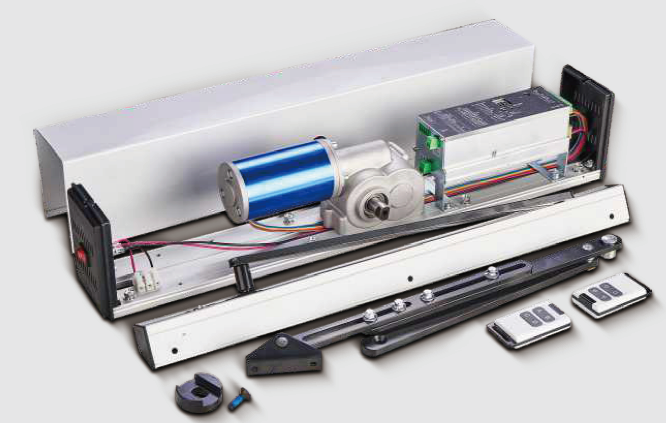

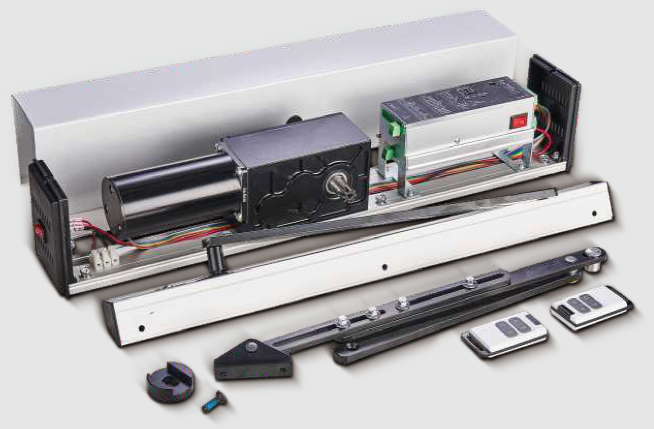

680 And 980 Type Automatic Swing Door Operator

  • BFSW680B—BFSW980B

  • start-motors

  • 064

Availability:
Quantity:
Inquire Add to Basket

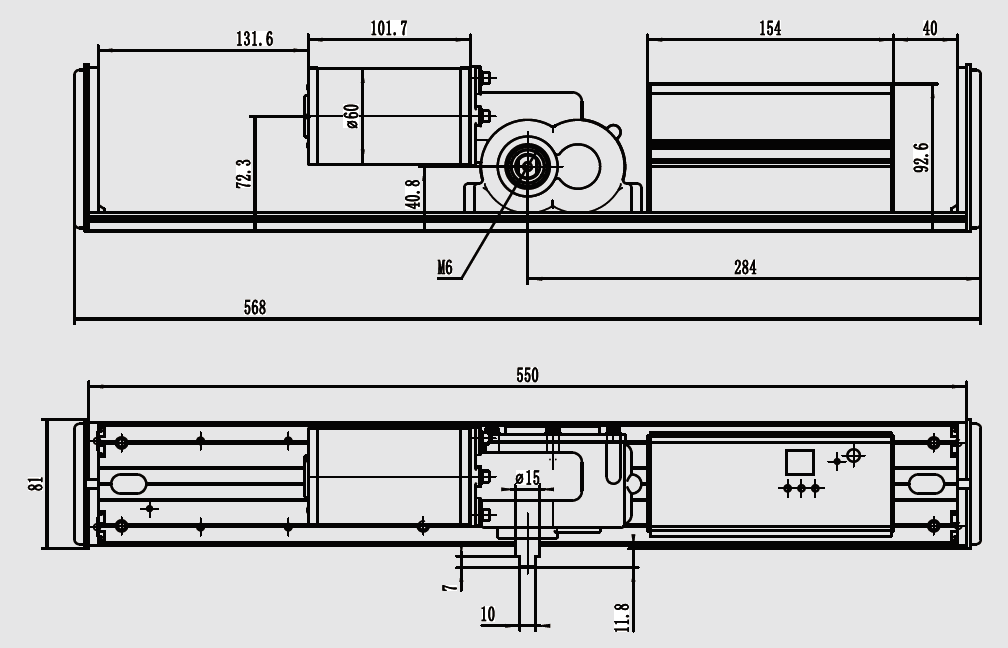

1、Model：BFSW680B product parameters
Product name 680 Type Automatic Swing Door operator Max door widit 1200mm
Model BFSW680B Max door weight 120KG
Motor 24V Brushless DC motor Spread of axles 280mm
Application Environment Indoor Size 568X81X105mm
Operning direction One-way opening Weight 3.9KG
opening Method Internal installation inward opening / internal installation outward opening IP Level IP 54
Max torque 50N.m / /

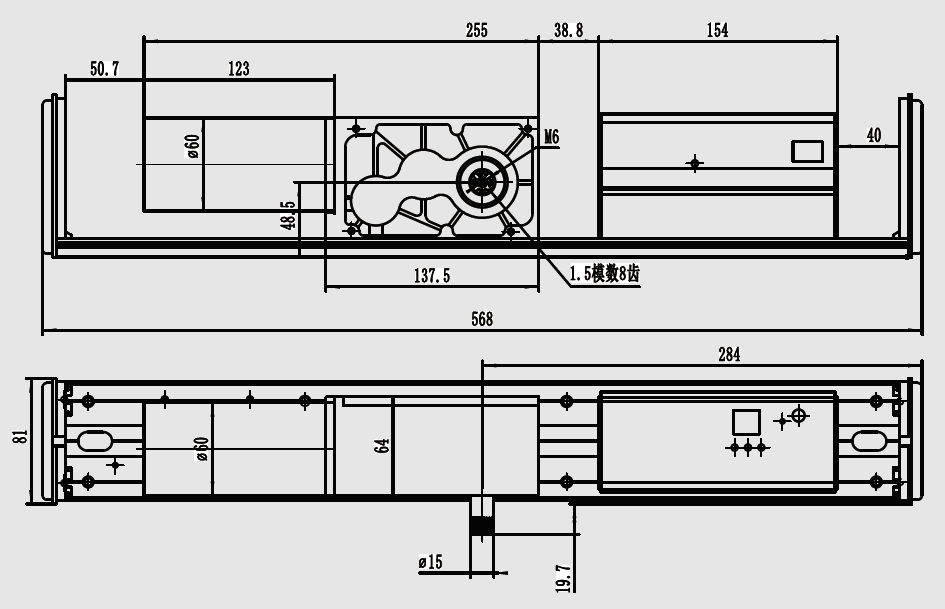

2、Model：BFSW980B product parameters
Product name 480 Type Automatic Swing Door operator Max door widit 1200mm
Model BFSW480B Max door weight 300KG
Motor 24V Brushless DC motor Spread of axles 280mm
Application Environment Indoor Size 568X81X105mm
Operning direction One-way opening Weight 4.85KG
opening Method Internal installation inward opening / internal installation outward opening IP Level IP 54
Max torque 80N.m / /



c02b7612-50ed-4ec1-9bb8-fd0deacee004


44cb2a04-99e6-470c-8499-03313c15c928
